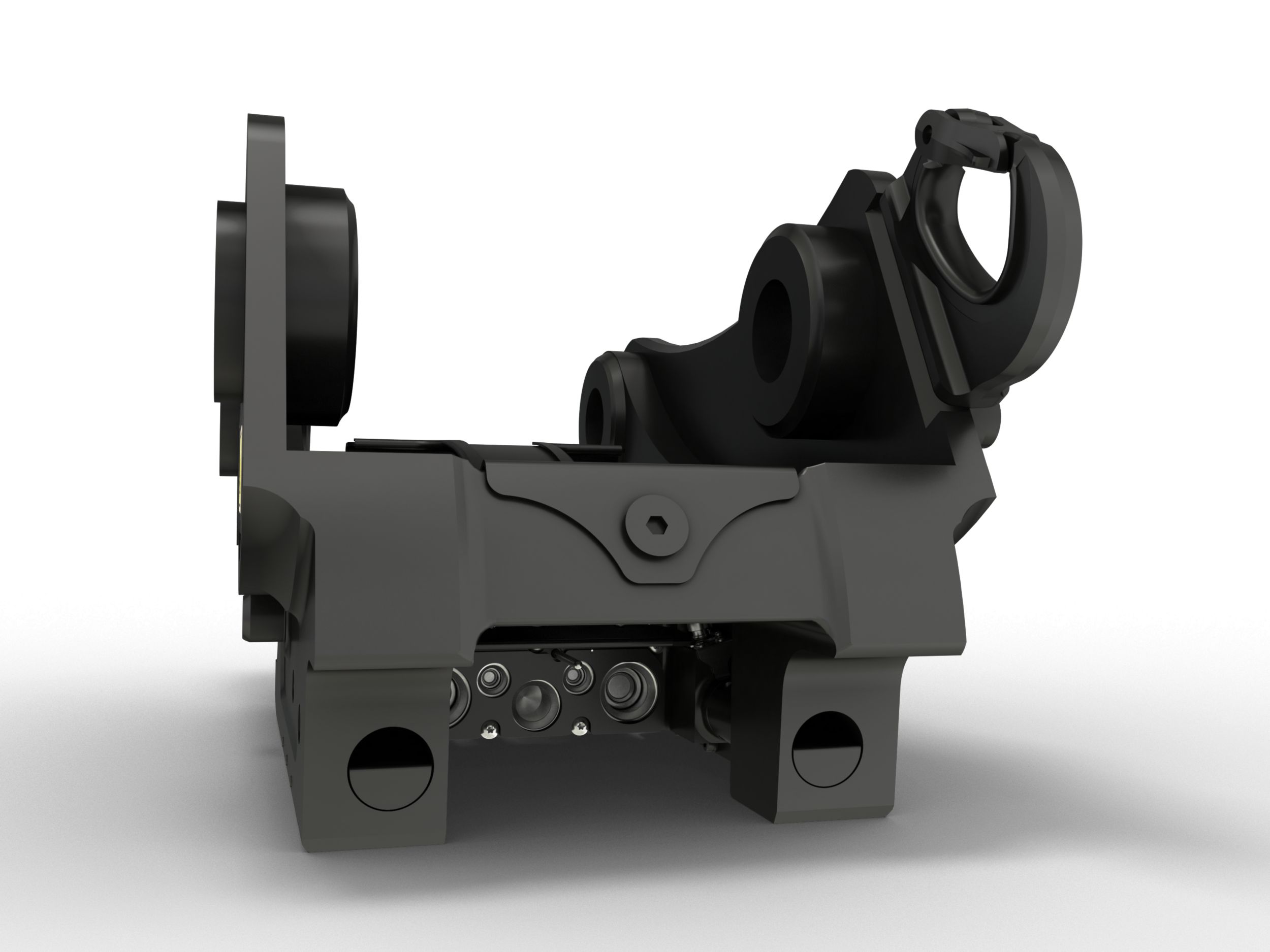

Hydraulic Connecting S Type Couplers Hydraulic Connecting S Type Coupler HCS60: 590-2377

Request A Price Find Dealer

Key Specs

Machine Class
12-19
12-19
Weight
390 lb
177 kg
Height
16.5 in
420 mm

Overview

Cat® Hydraulic Connecting S Type Couplers connect to your machine's hydraulics and electronics giving you the ability to pick up an attachment with full functionality in seconds without leaving the cab. These couplers deliver the productivity and versatility benefits you expect from a coupler. Additionally, they bring safety to your people, equipment, and overall operation while increasing the life of the other attachments in your fleet.

Product Specifications for Hydraulic Connecting S Type Coupler HCS60: 590-2377

Machine Class 12-19 12-19
Weight 390 lb 177 kg
Lift Hook Capacity 5 ton (US) 5 ton (US)
Height 16.5 in 420 mm
Length 31.2 in 792 mm
Width 18.5 in 471 mm
Maximum Operating Pressure 5076 psi 350 bar
3/8" Hydraulic Connectors (Mounted) 2 2
3/8" Hydraulic Connector Flow 13 gal/min 50 l/min
1/2" Hydraulic Connectors (Optional) 1 1
1/2" Hydraulic Connector Flow 21 gal/min 79 l/min
3/4" Hydraulic Connectors (Mounted) 2 2
3/4" Hydraulic Connector Flow 59 gal/min 225 l/min
