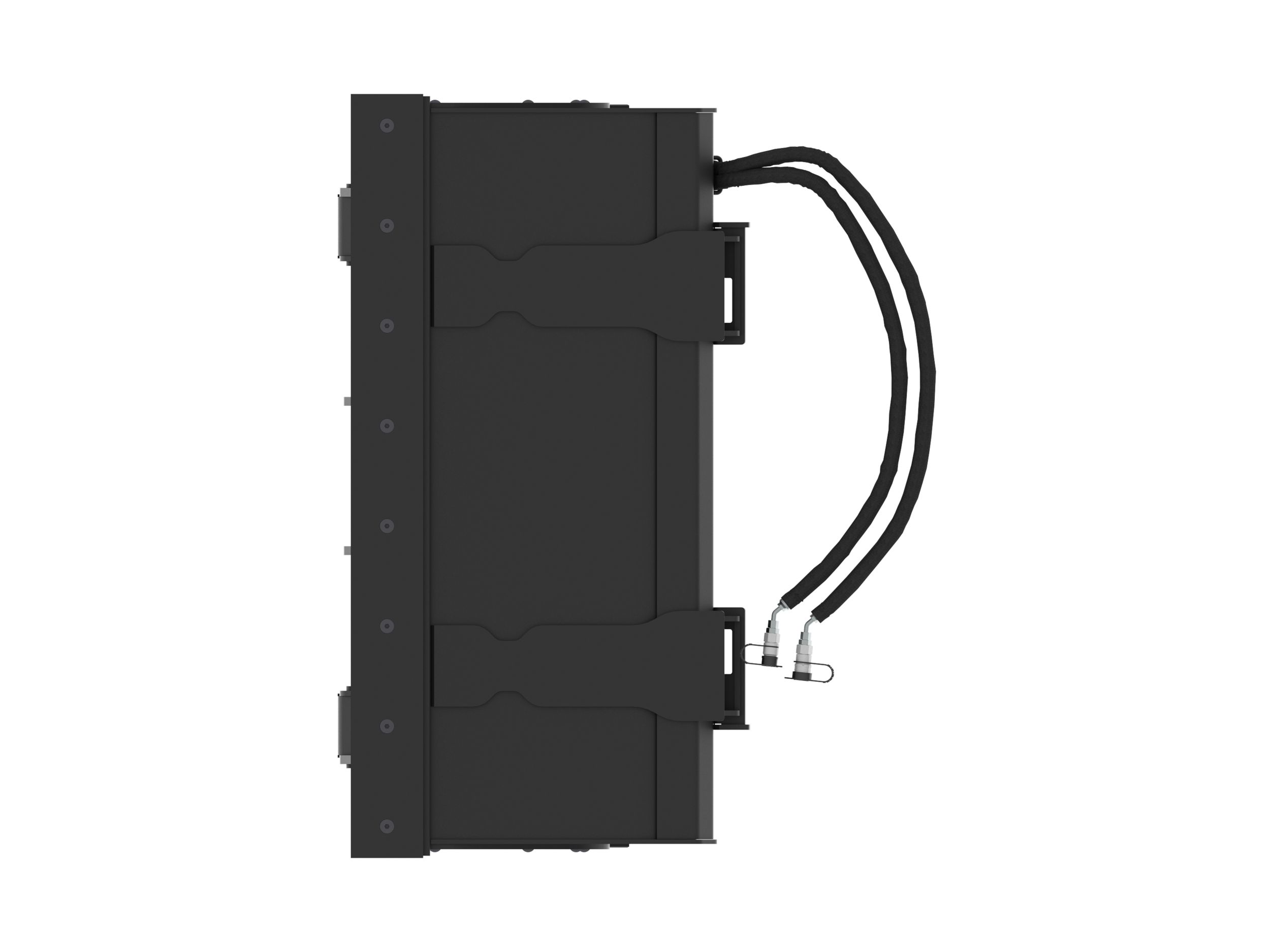

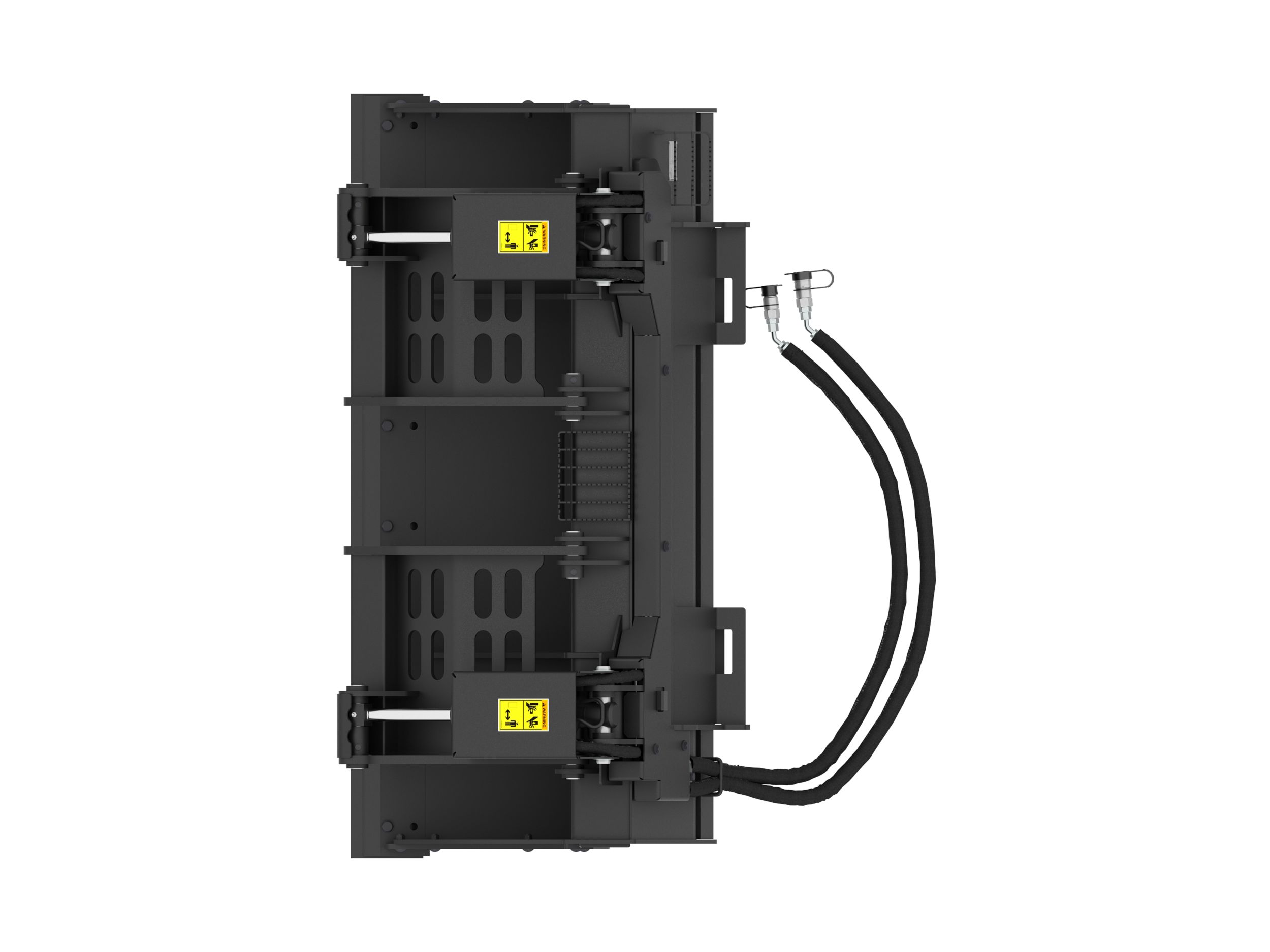

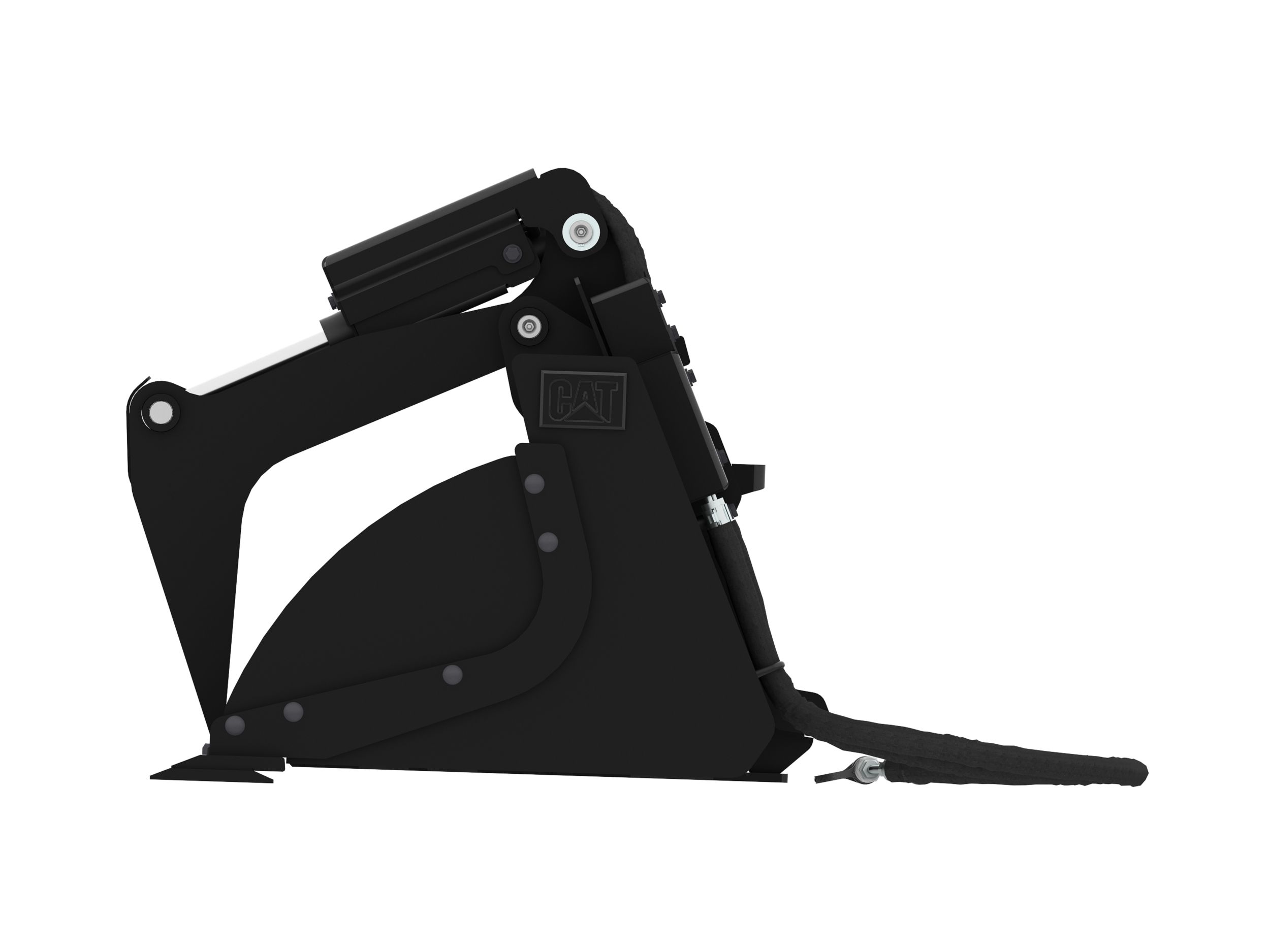

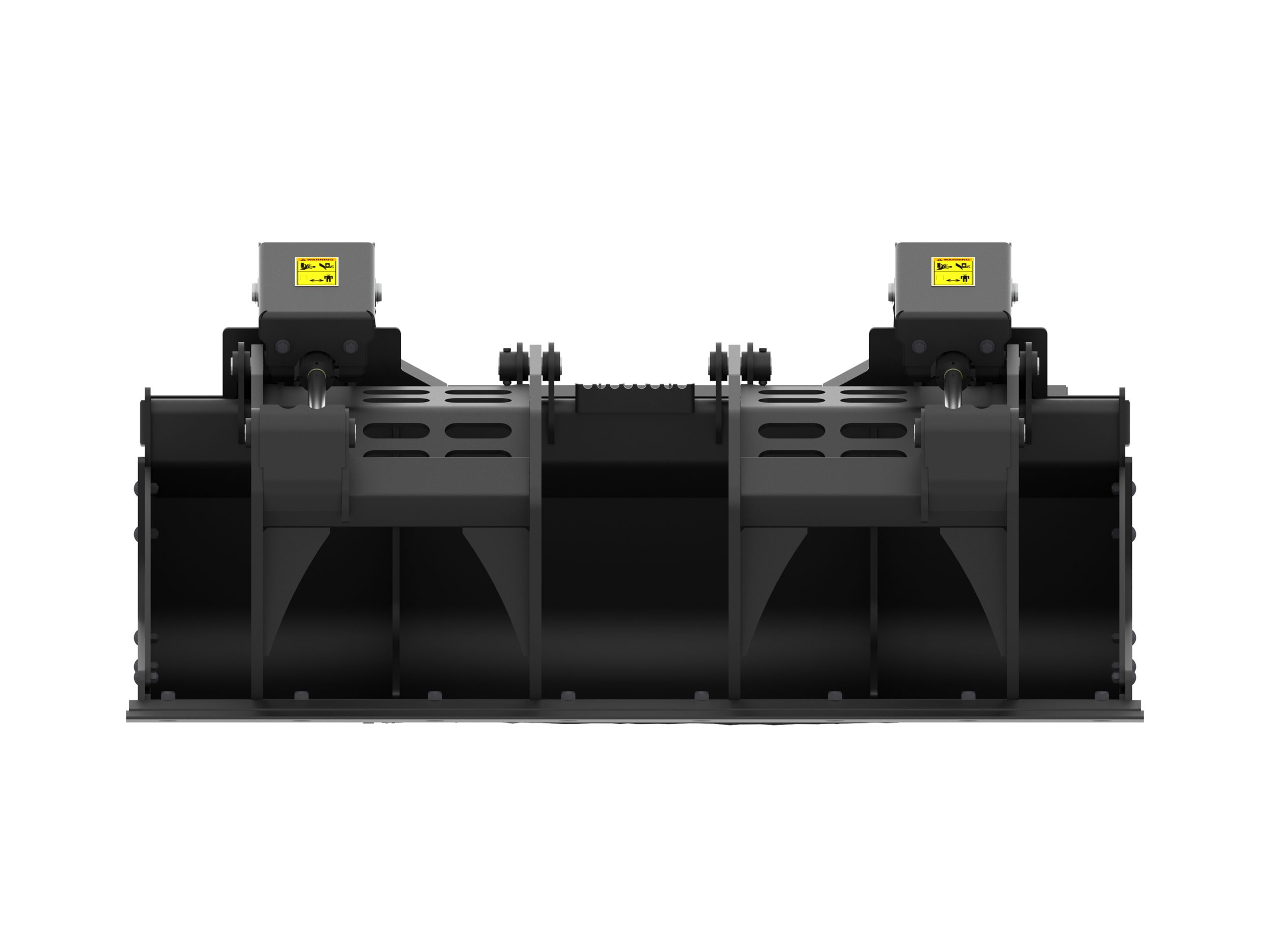

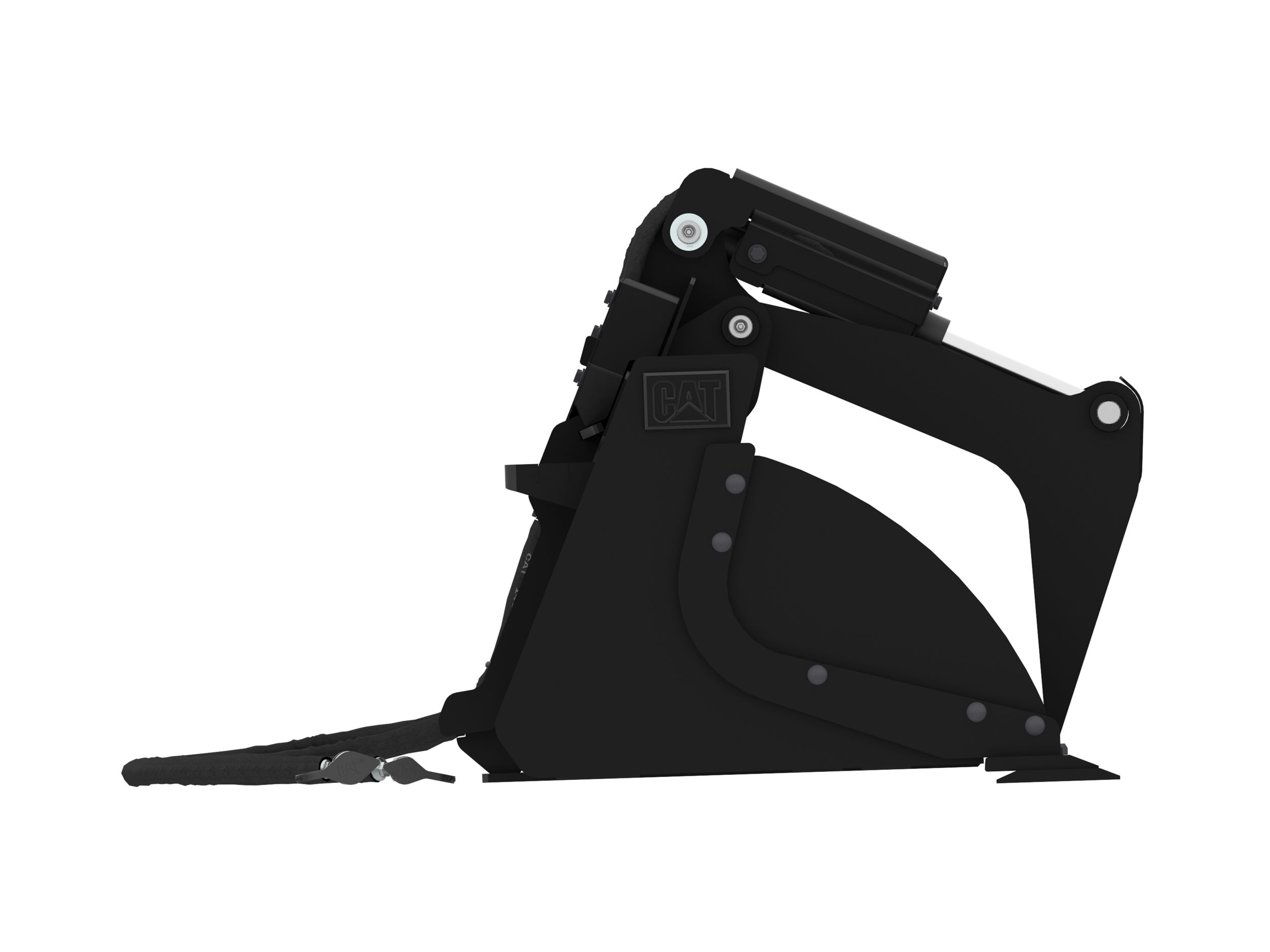

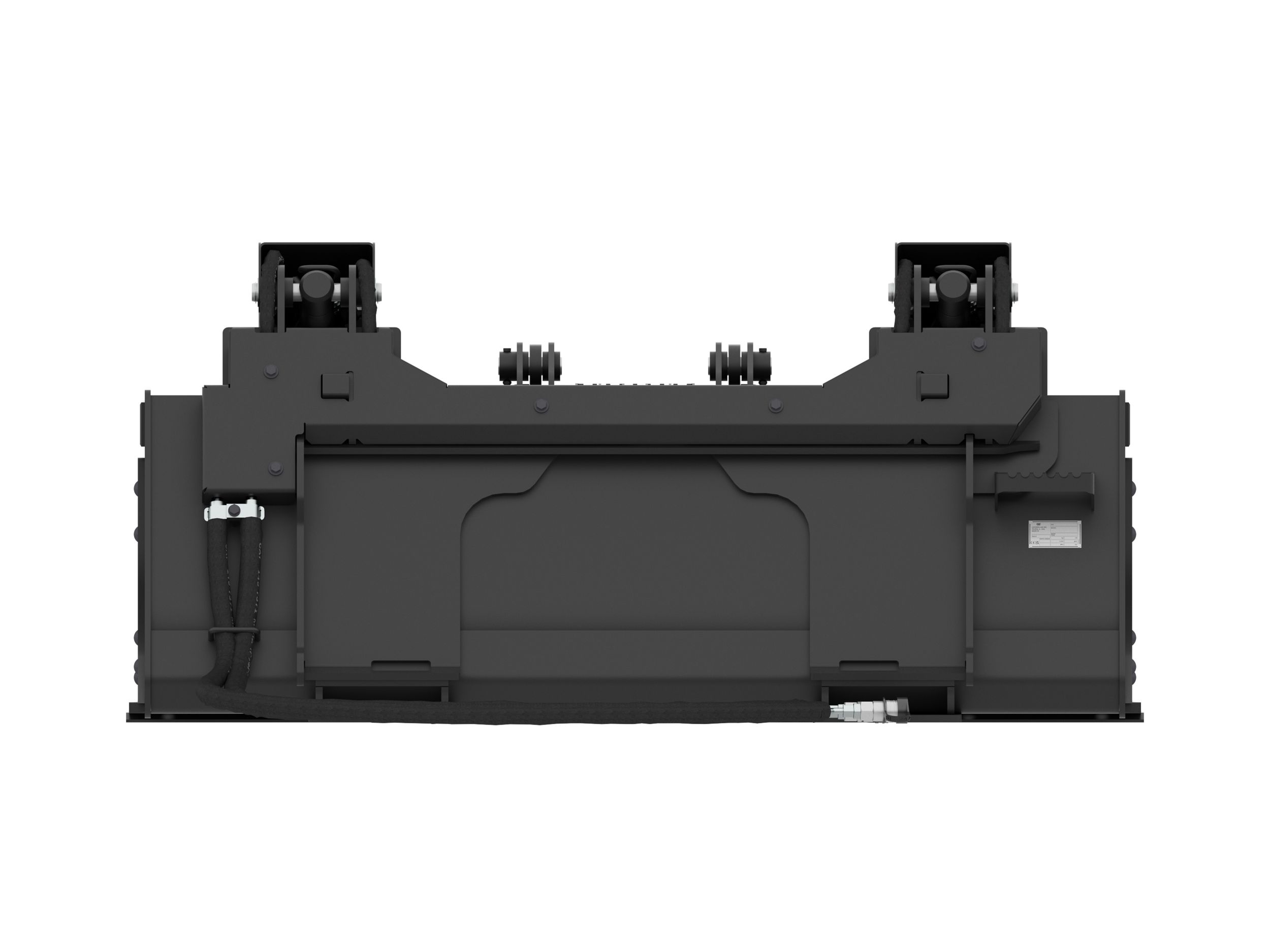

Industrial Grapple Buckets 1740 mm (68 in), Bolt-On Cutting Edge

New Used Rental

Request A Price Shop Now

Key Specs

Width: 68 in; 1740 mm

Weight: 1219.2 lb; 553 kg

Height - Grapples Closed: 32.8 in; 833 mm

1740 mm (68 in), Bolt-On Cutting Edge
Change model

Overview

Designed to handle a wide array of materials in a variety of operating conditions.

Features At A Glance

Serrated steps allow for safe and easy access in and out of the cab. A new center step enables even easier access and shorter step lengths by the operator.

Heavy duty cylinder and tube guarding helps prevent any loose debris from damaging the bucket.

Added abrasion protection on exposed hoses for longer life.

More robust and durable grapple tips for better performance and longevity.

Large grapple opening provides operator the ability to secure a wide range of objects.

Side plates enable the industrial grapple bucket to function more effectively as a traditional bucket, allowing for efficient digging and the collection of large amounts of dirt. For brush removal tasks, utilize the grapples to gather substantial debris. By removing the plates, you can accommodate a significant amount of brush and logs, allowing them to extend out on both sides.

Improved visibility between and through the grapples due to added visibility slots.

Product Specifications for 1740 mm (68 in), Bolt-On Cutting Edge

Width	68 in 1740 mm
Weight	1219.2 lb 553 kg
Height - Grapples Closed	32.8 in 833 mm
Length	35.7 in 906 mm
Base Edge Thickness	0.7 in 19 mm
Cutting Edge Thickness	0.6 in 16 mm
Operating Pressure	3335.9 psi 23000 kPa
Jaw Opening	39.1 in 992 mm

Product Specifications for 1740 mm (68 in), Bolt-On Cutting Edge

Download Print

Width	68 in 1740 mm
Weight	1219.2 lb 553 kg
Height - Grapples Closed	32.8 in 833 mm
Length	35.7 in 906 mm
Base Edge Thickness	0.7 in 19 mm
Cutting Edge Thickness	0.6 in 16 mm
Operating Pressure	3335.9 psi 23000 kPa
Jaw Opening	39.1 in 992 mm
