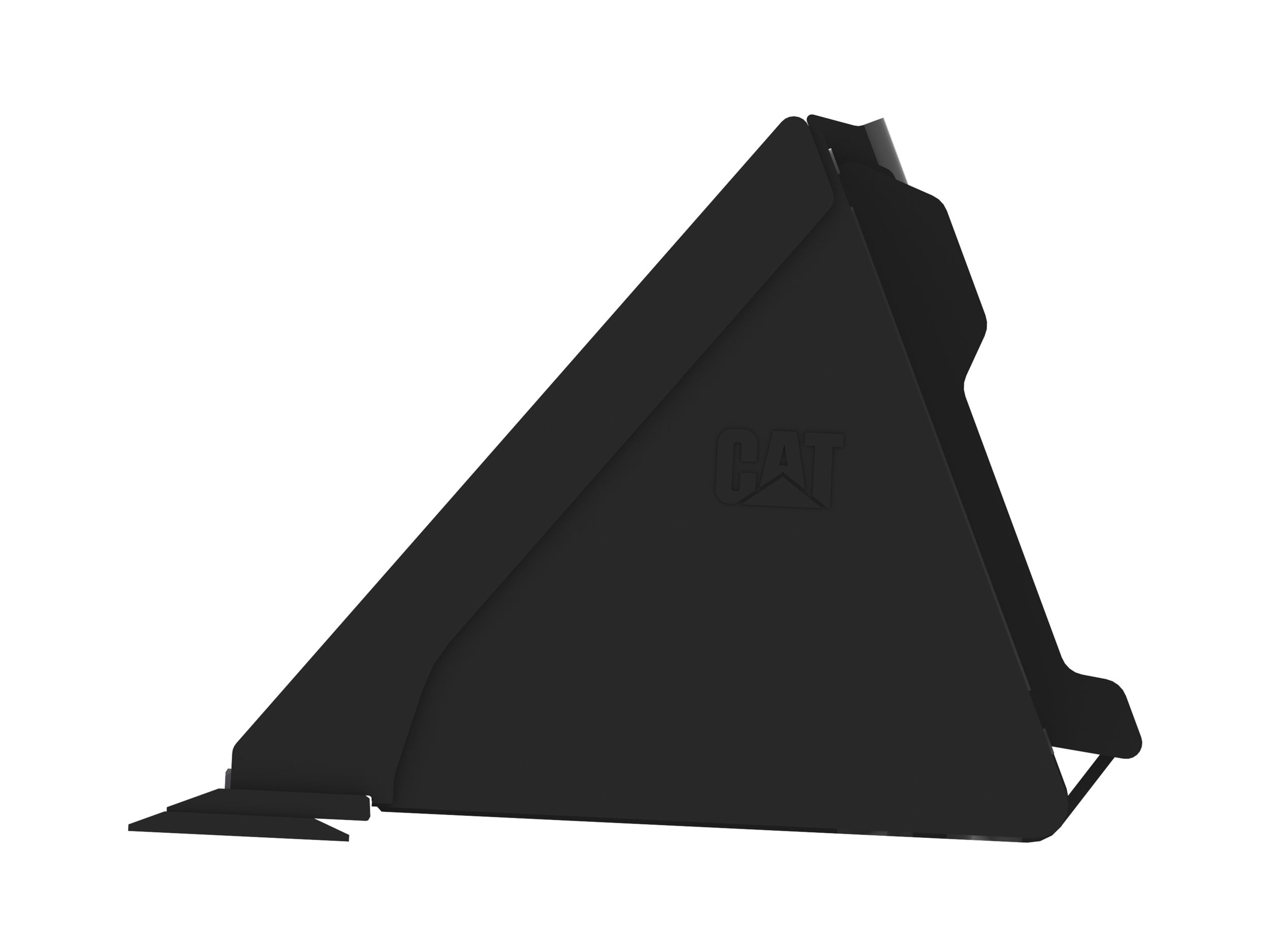

Low Profile Buckets 2187 mm (86 in), 0.45 m3 (0.6 yd3), Bolt-On Cutting Edge

Request A Price Shop Now

Key Specs

Width: 86 in; 2187 mm

Capacity: 0.6 yd³; 0.45 m³

Weight: 665.8 lb; 302 kg

2187 mm (86 in), 0.45 m3 (0.6 yd3), Bolt-On Cutting Edge
Change model

Overview

Designed for light duty earth excavation.

Features At A Glance

Recommended for applications with tight areas where a narrower, lower capacity bucket is required, such as construction and landscaping. The low profile dirt bucket is designed to provide superior productivity, high reliability and long life in a variety of materials and handling conditions.

Hardened steel base and side cutting edges provide excellent penetration, durability and wear life.

Full length skid bars provide additional floor rigidity and wear resistance.

Gussets and plates specially positioned to provide for a reinforced structure and increased bucket longevity.

Standard bolt-on cutting edge ensures a ground engaging wear surface that is easily replaced when needed, prolonging the life of the bucket.

Serrated step provides safe access in and out of cab for operator's safety.

Product Specifications for 2187 mm (86 in), 0.45 m3 (0.6 yd3), Bolt-On Cutting Edge

Width	86 in 2187 mm
Capacity	0.6 yd³ 0.45 m³
Weight	665.8 lb 302 kg
Height	22 in 559 mm
Length	29.6 in 753 mm
Base Edge Thickness	0.7 in 19 mm
Cutting Edge Thickness	0.6 in 16 mm

Product Specifications for 2187 mm (86 in), 0.45 m3 (0.6 yd3), Bolt-On Cutting Edge

Download Print

Width	86 in 2187 mm
Capacity	0.6 yd³ 0.45 m³
Weight	665.8 lb 302 kg
Height	22 in 559 mm
Length	29.6 in 753 mm
Base Edge Thickness	0.7 in 19 mm
Cutting Edge Thickness	0.6 in 16 mm
