DE1500 GC (50 Hz) 1500 kVA Diesel Generator

Diesel Generator Sets DE1500 GC

Request A Price Find Dealer

Key Specs

Minimum Rating
1500 kVA
1500 kVA
Maximum Rating
1500 kVA
1500 kVA
Emissions/Fuel Strategy
Low Fuel Consumption
Low Fuel Consumption

Overview

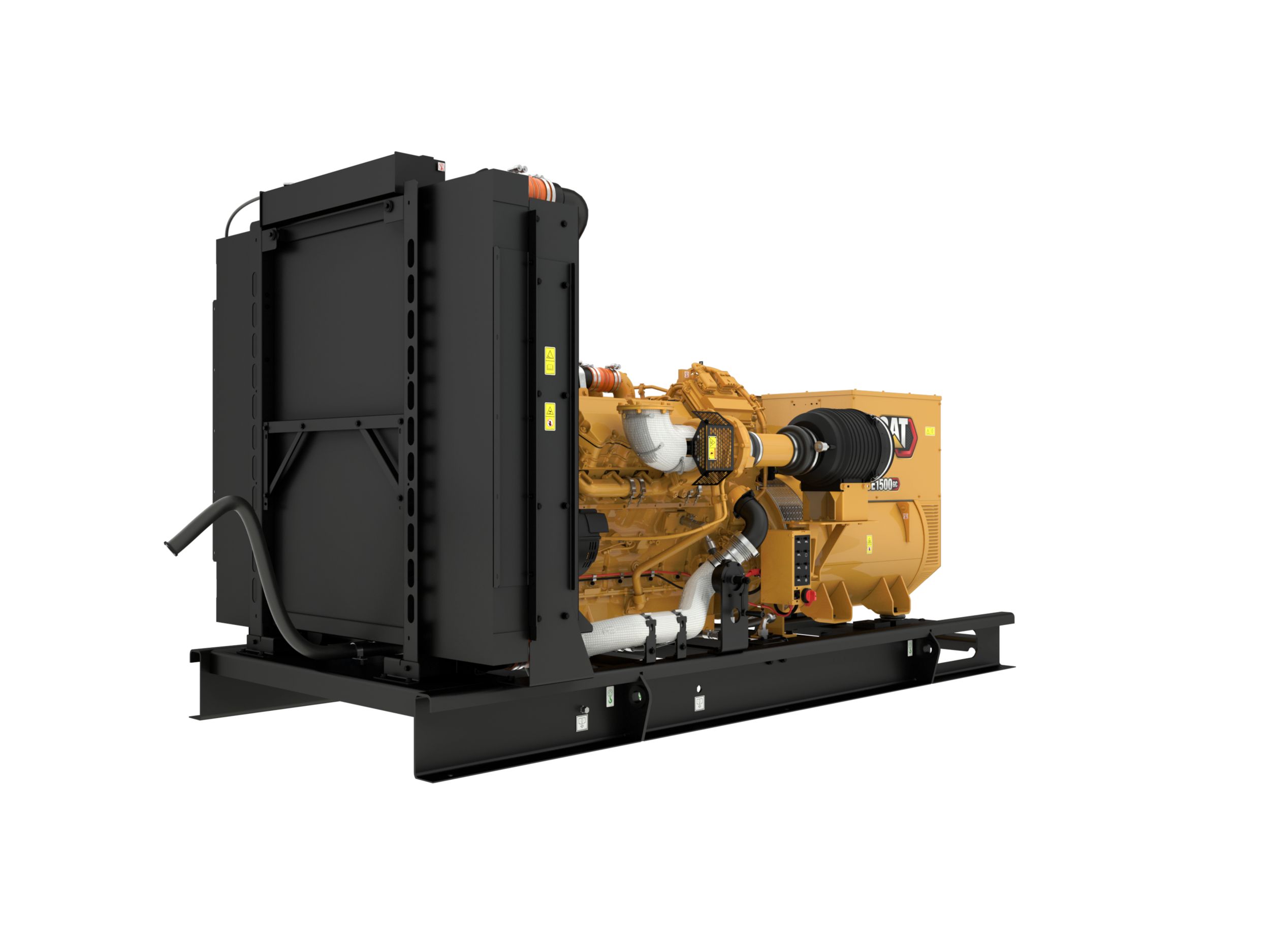

1500 kVA Diesel Generator Set

Producing reliable power at 1500 kVA, 60 Hz, our DE1500 GC diesel generator set is made to meet your needs in standby applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100 per cent rated load in one step. This generator set offers a low fuel consumption system.

Benefits

Accepts 100%

Full Power up to 50°C Ambient

Provides full power even on hottest days of the year

Conforms to ISO8528-5 G3 Load Acceptance

Maintains voltage and frequency during transient events

Product Specifications for DE1500 GC

Minimum Rating 1500 kVA 1500 kVA
Maximum Rating 1500 kVA 1500 kVA
Emissions/Fuel Strategy Low Fuel Consumption Low Fuel Consumption
Voltage 400 - 415 Volts 400 - 415 Volts
Frequency 50 Hz 50 Hz
Speed 1500 rpm 1500 rpm
Duty Cycle Standby Standby
Engine Model C32 TA, V-12, 4-Stroke Water-Cooled Diesel C32 TA, V-12, 4-Stroke Water-Cooled Diesel
Bore 5.71 in 145 mm
Stroke 6.38 in 162 mm
Displacement 1958.86 in³ 32.1 l
Compression Ratio 14.0:1 14.0:1
Aspiration TA TA
Fuel System EUI EUI
Governor Type Adem™A4 Adem™A4
Length - Minimum 164.3 in 4175 mm
Length - Maximum 164.3 in 4175 mm
Width - Minimum 82.3 in 2090.5 mm
Width - Maximum 82.3 in 2090.5 mm
Height - Minimum 89.3 in 2268 mm
Height - Maximum 89.3 in 2268 mm
Dry Weight - Genset (minimum) 16393 lb 7436 kg
Dry Weight - Genset (maximum) 16393 lb 7436 kg

DE1500 GC Standard Equipment

Control Panel

  • GCCP1.3

Cooling System

  • Radiator

DE1500 GC Optional Equipment

Control Panels

  • Remote monitoring software

Starting/Charging

  • Jacket water heater

General

  • Single element or dual element air cleaner
  • Circuit breaker panel, based on regional and product configuration
