XQ230 182 kW (228 kVA)

Mobile Generator Sets XQ230 Tier 4 Final

Request A Price Find Dealer

Key Specs

Rating Prime
182 ekW (228 kVA)
182 ekW (228 kVA)
Frequency
60 Hz
60 Hz
Voltage
120 - 600 V
120 - 600 V

Overview

228 kVA Mobile Diesel Generator Set

The Cat XQ230 is powered by a C 7.1 Tier 4 Final compliant industrial diesel engine offering the perfect balance of durability, efficiency and low emissions. With advanced research and development techniques, the after treatment system is precisely matched to the engine ensuring performance is optimized for maximum productivity.

Benefits

Environmentally friendly 110% Battery isolator switch

Eliminates battery draindown when generator set is not in operation

Flexible Two-way valve and external fuel ports

Easily switch between onboard and external fuel source for extended run times

Power Distribution Three-position switch for easy selection of desired output

Eliminates the need for reconnection to meet on-site requirements

Product Specifications for XQ230 Tier 4 Final

Rating Prime 182 ekW (228 kVA) 182 ekW (228 kVA)
Frequency 60 Hz 60 Hz
Voltage 120 - 600 V 120 - 600 V
Rating Standby 200 ekW (250 kVA) 200 ekW (250 kVA)
Engine Cat C7.1 Cat C7.1
Fuel Diesel Diesel
Height - Without Trailer 78.5 in 1994 mm
Length - Without Trailer 162.2 in 4120 mm
Width - Without Trailer 62.8 in 1595 mm
Weight with Lube Oil and Coolant, Without Trailer 8432 lb 3828 kg
100% Load 60Hz 14.7 gal/hr 56 l/hr
75% Load 60Hz 10.8 gal/hr 41 l/hr
50% Load 60Hz 7.4 gal/hr 28 l/hr
Sound Power @ 7 meters (23 feet) @ All Ratings 72 dB(A) 72 dB(A)

XQ230 Tier 4 Final Standard Equipment

CAT C7.1 Diesel Engine

  • Heavy-duty.
    Turbocharged.
    After treatment

Generator

  • LC5034H Frame

Control Panel

  • Digital EMCP4.2B set mounted controller

Cat Connect remote monitoring

  • Provides package monitoring and management

Cooling System

  • Package mounted radiator with vertical air discharge.
    Filled from factory

Charging / Starting System

  • 12V heavy duty starting motor and charging alternator c/w battery isolator

Fuel System

  • 24 hour dual wall fuel tank with 3 way directional valve for external supply

Air Filter

  • Cyclonic/paper with dust cup and service indicator

Distribution

  • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off

Structure

  • Heavy Duty steel base frame with integral fuel tank.
    Lifting frame and 4 point lift.
    base frame is wider than enclosure to protect generator set during transportation

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance

Exhaust

  • Integrated spark arresting silencer

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory

General

  • Factory tested and inspected

Product Brochures and More Are Ready to Download!

See how XQ230 Tier 4 Final compares against frequently compared products.

Use the comparison tool to compare detailed specs of Cat and competitor models.

COMPARE ALL MODELS

Tools And Expert Help At Every Turn

Cat RAM and Condition Monitoring

Observe and manage your fleet from anywhere with Cat RAM, and benefit from real-time monitoring by expert advisors with Condition Monitoring.

Learn More

Maintenance and Repairs

Retain genset value with maintenance, upgrade kits, and repair options that extend lifecycles, optimise performance, and help you control costs.

Learn More

Parts

Shop for genuine and Cat Reman parts online, with access to price, inventory, and 24/7 expert support.

Learn More

Service Agreement (Cat® CVA & LTSA)

Every piece of Cat equipment is designed and built to provide maximum productivity and operating economy throughout its working life. Your Cat dealer can help you maintain that built-in value through a Customer Value Agreement (CVA).

Learn More

Media Gallery

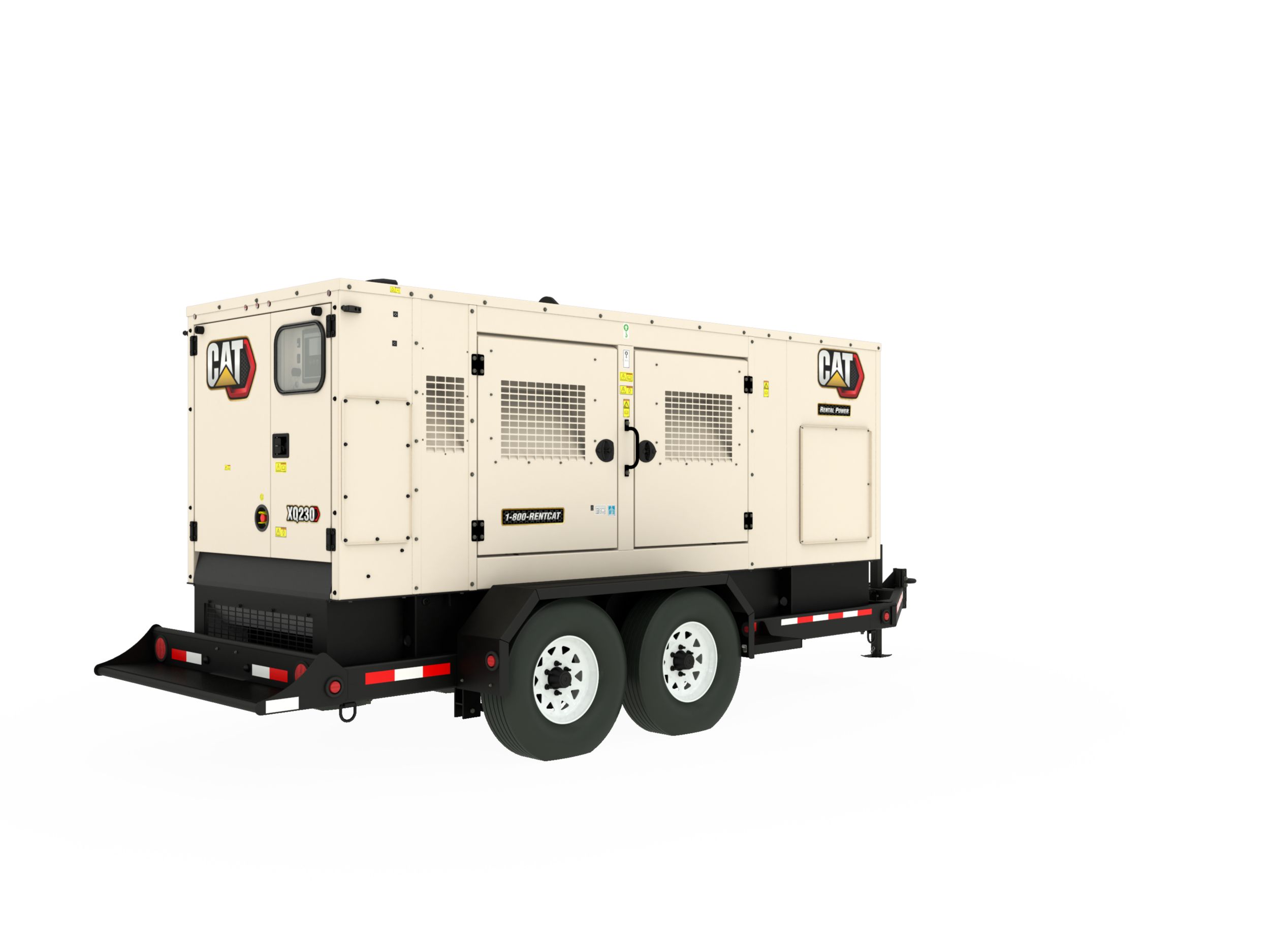

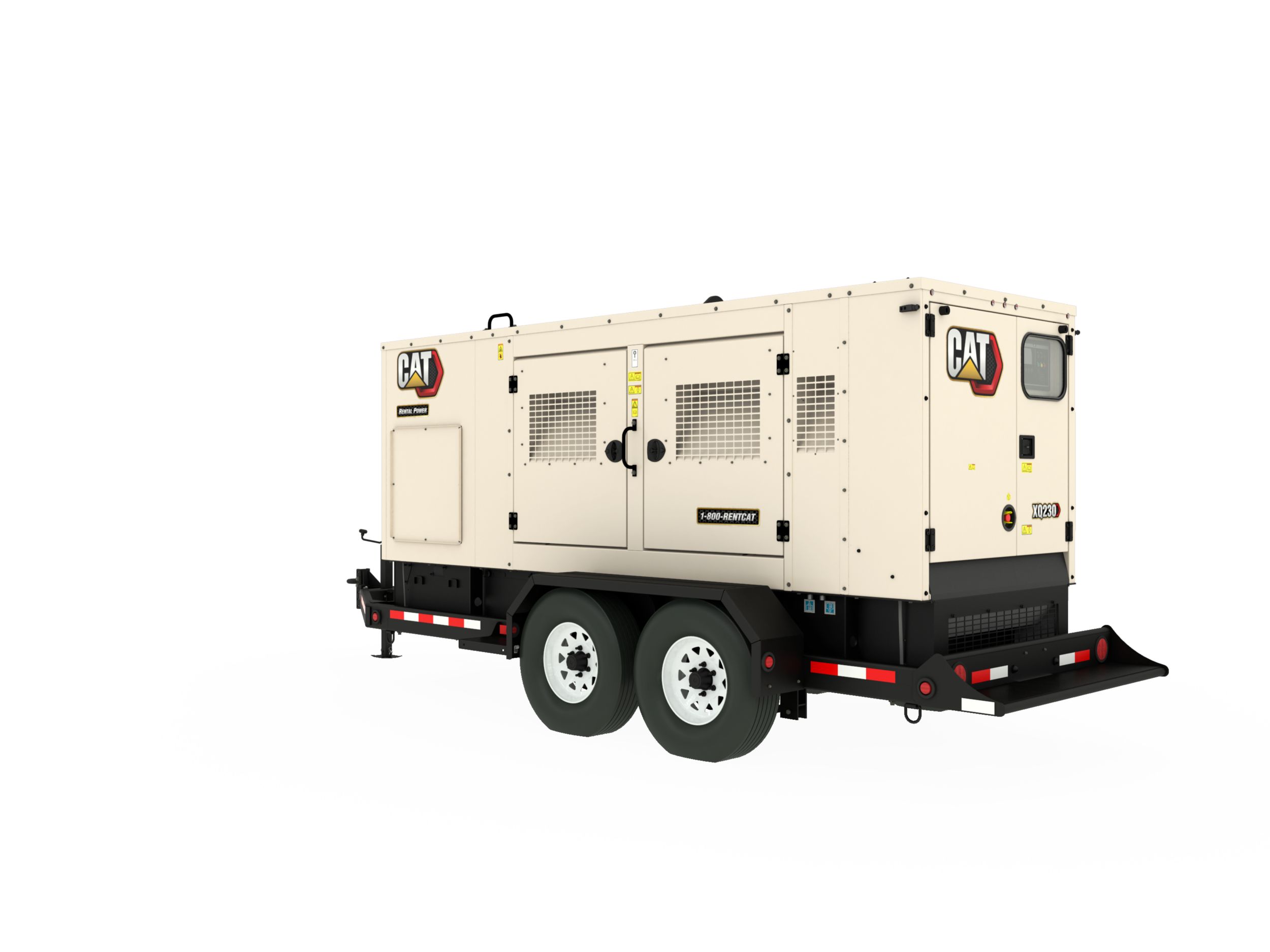

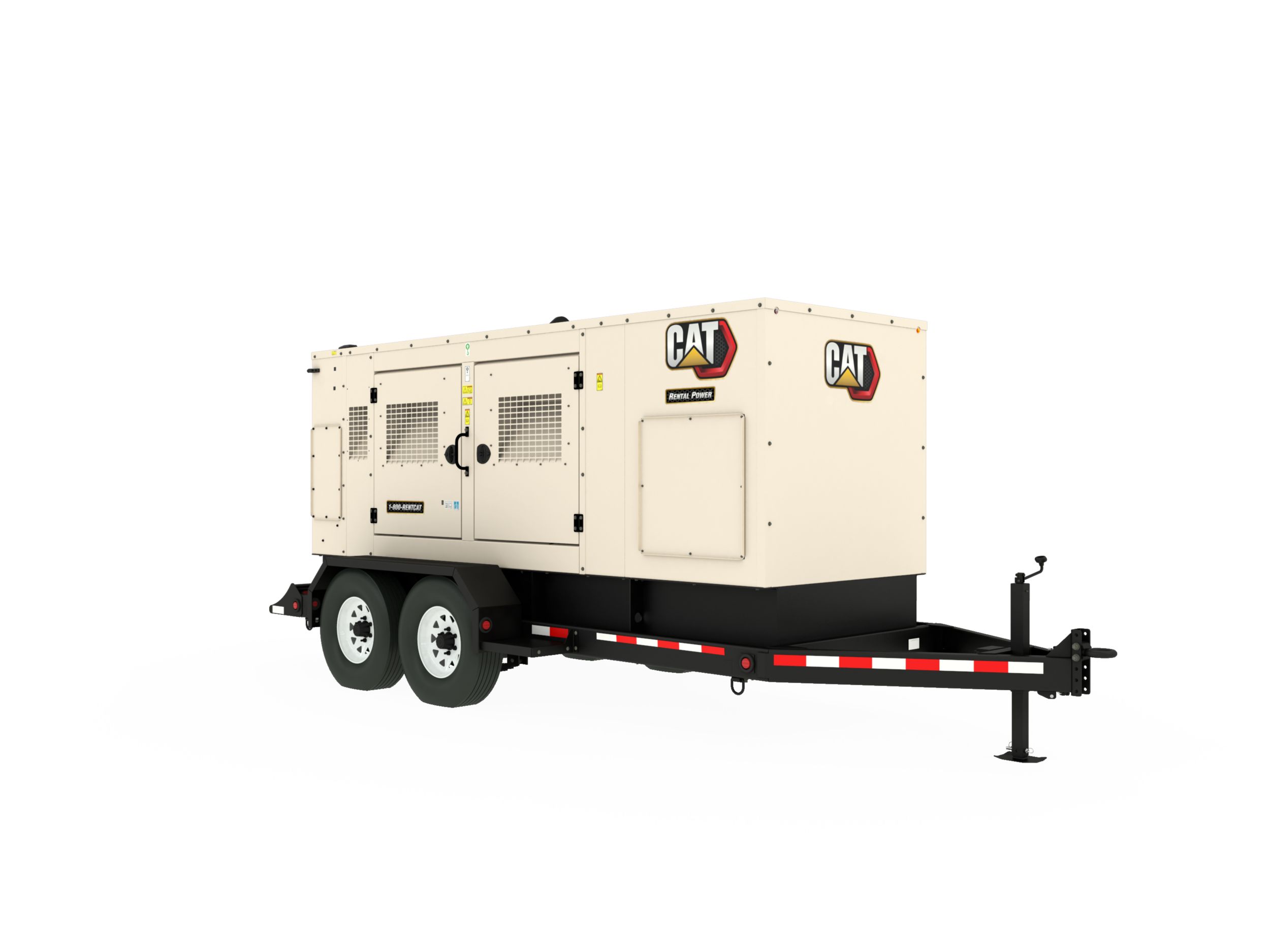

XQ230 - Diesel

XQ230 - Diesel

XQ230 - Diesel

XQ230 - Diesel

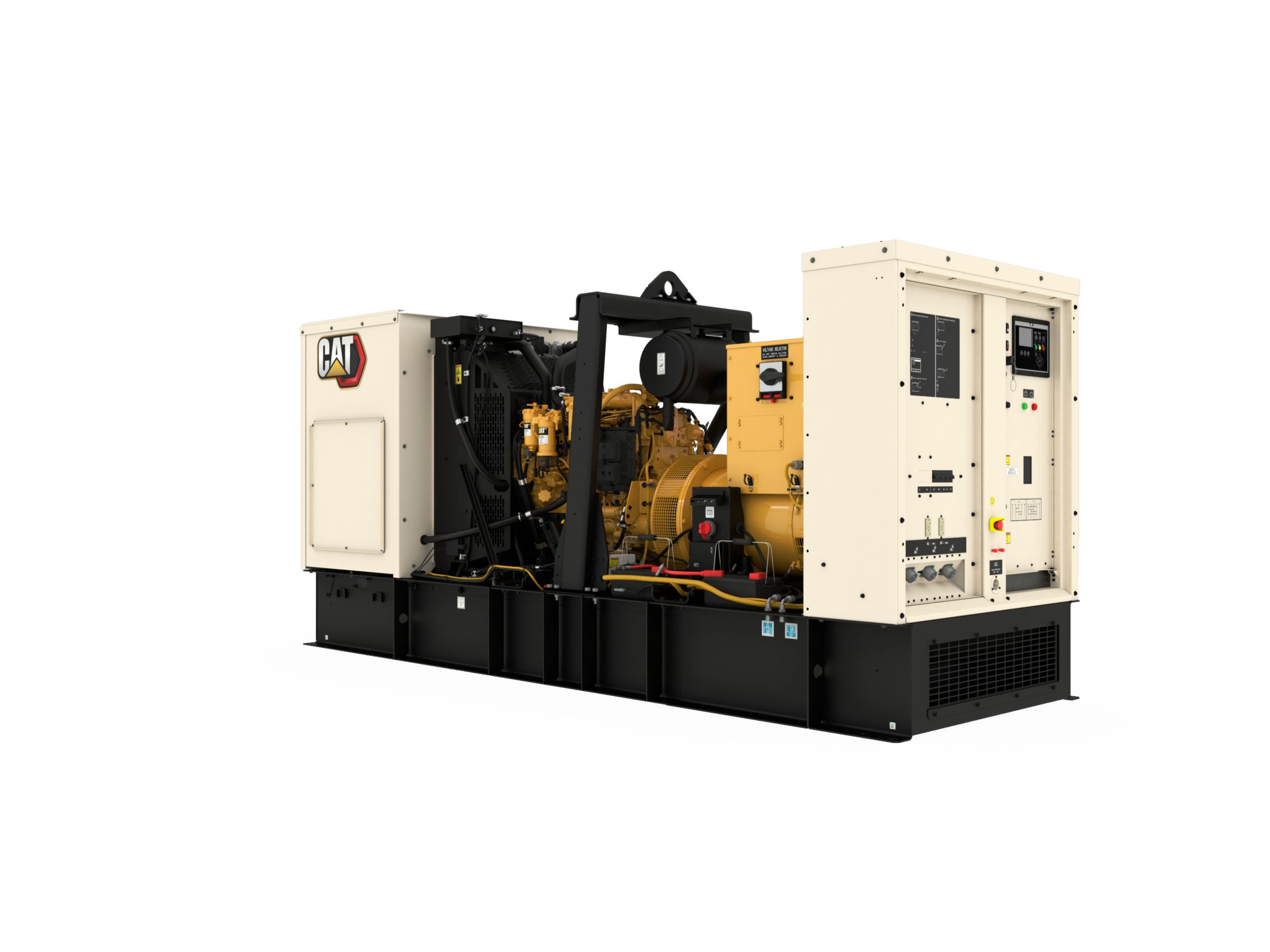

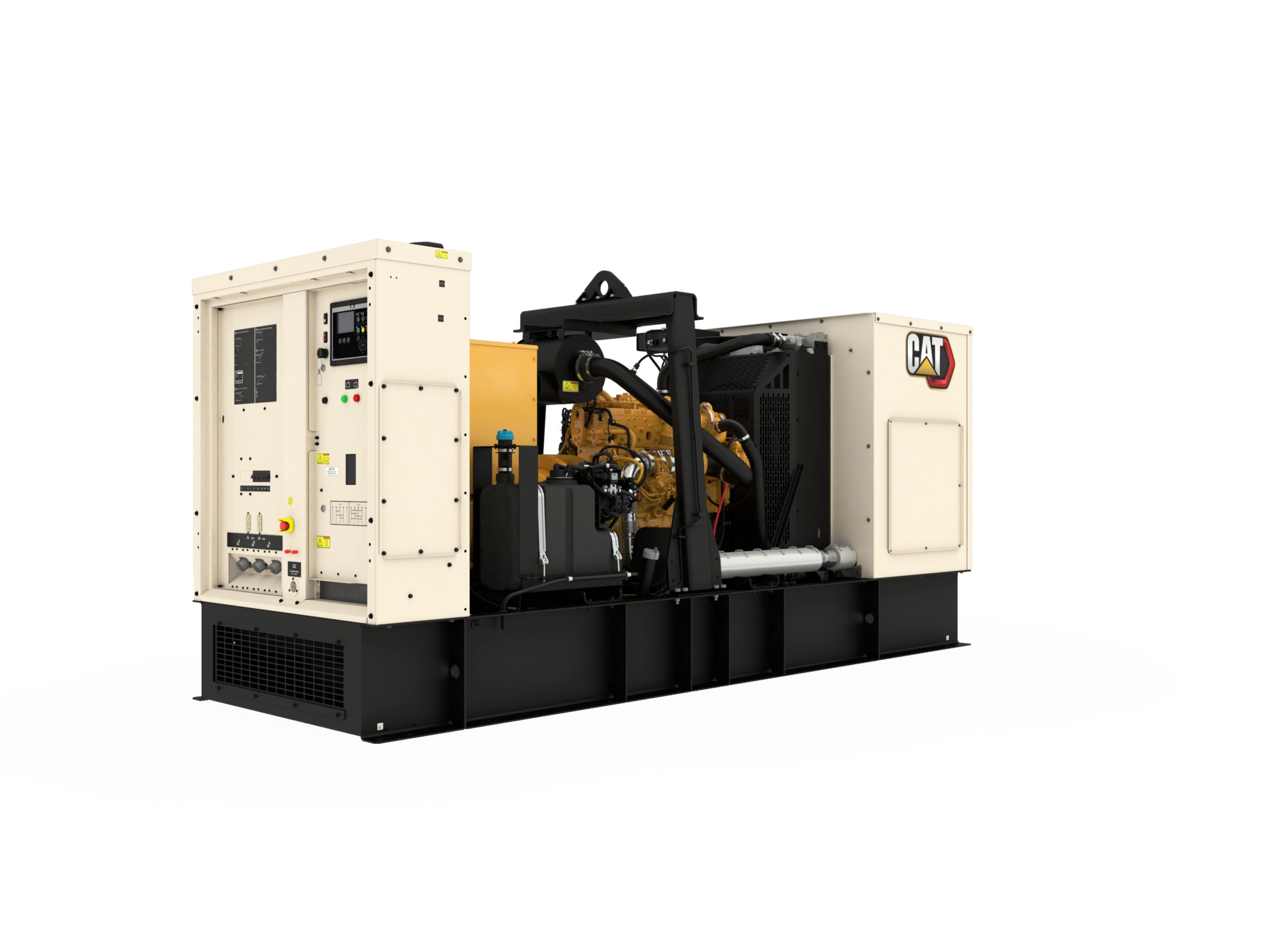

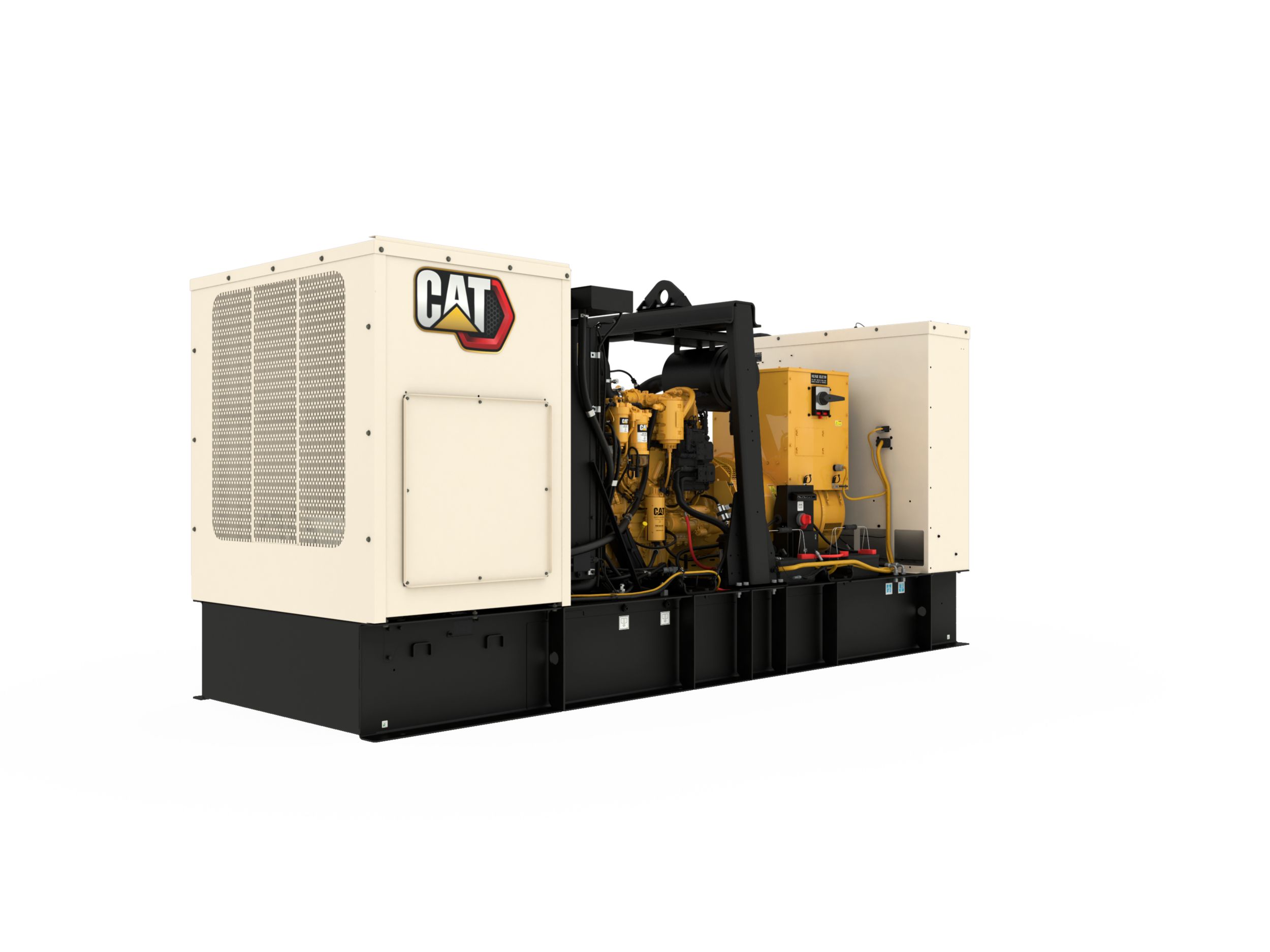

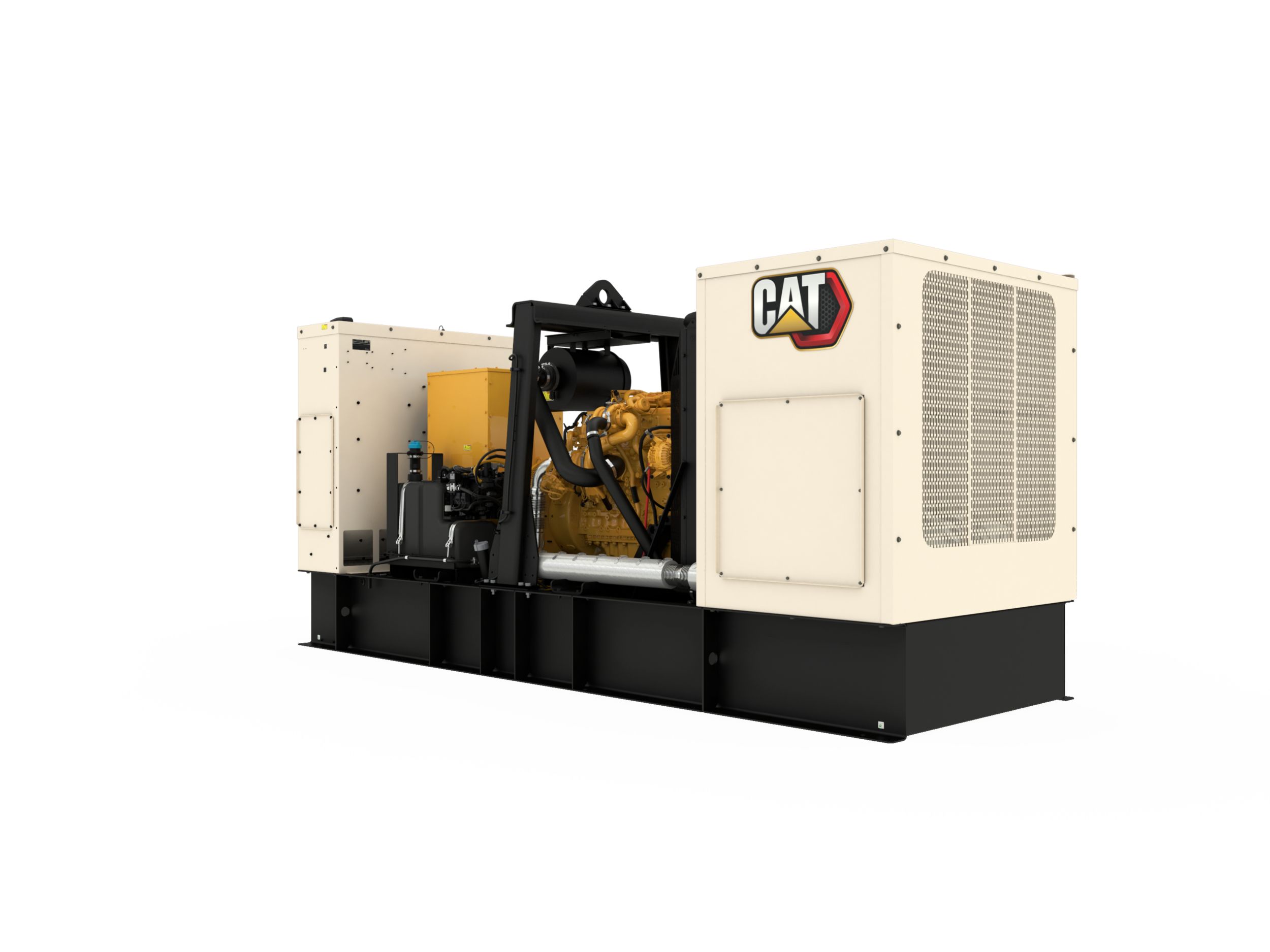

XQ230 - Retail Optimised
