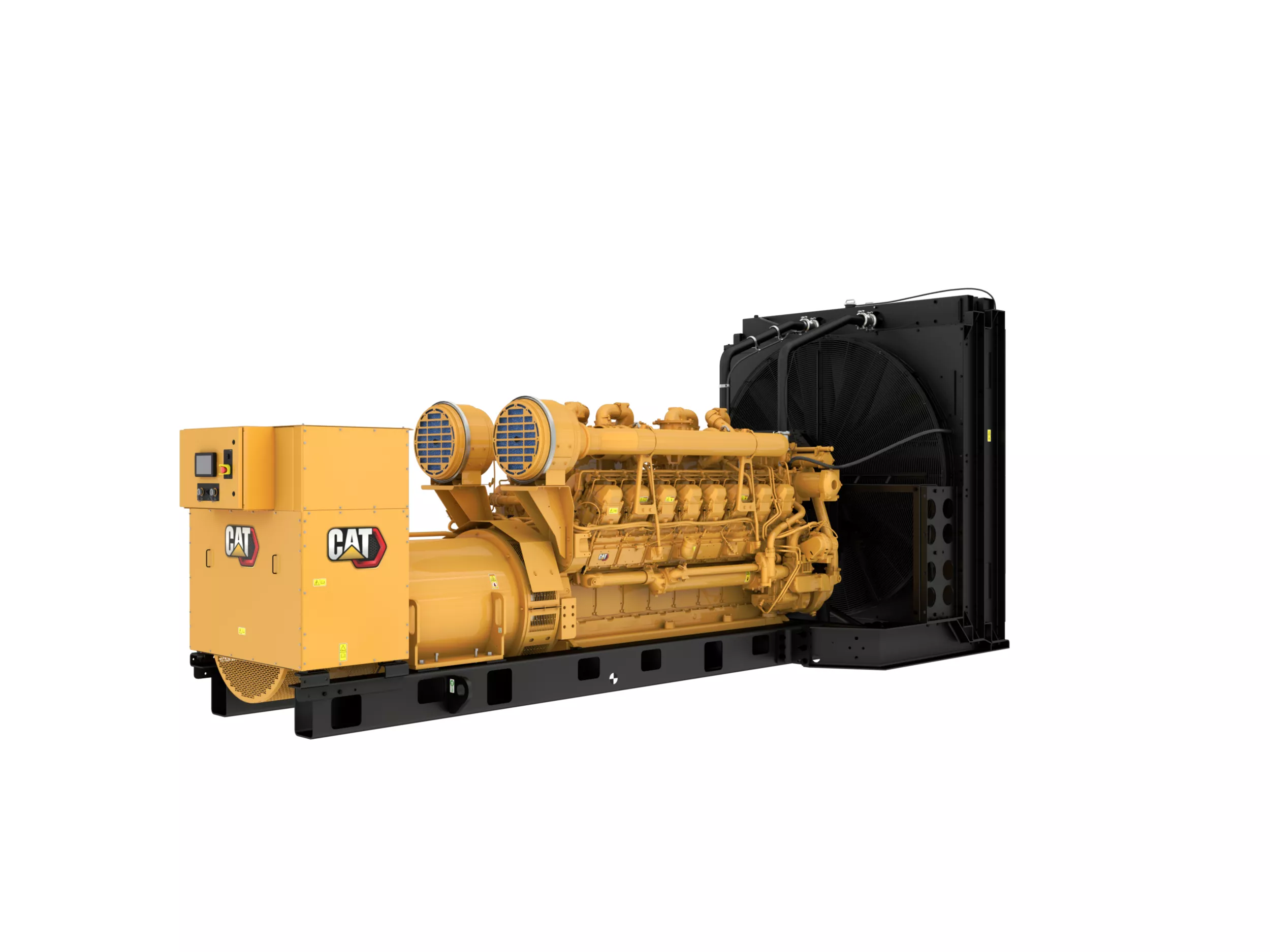

Diesel Generator Sets 3516B (60 Hz) 1640 - 2250 KW Diesel Generator Set

3516B (60 Hz)

Features At A Glance

Cat Generator Set Package
Cat Diesel Engine
SR5 Alternator
EMCP 4 Control Panel
Cooling System
One Safe Source
World Wide Product Support

Product Specifications for 3516B (60 Hz)

Generator Set Specifications

Engine Specifications

Generator Set Dimensions

3516B (60 Hz) Standard Equipment

Air Inlet System

  • Air cleaner; single element canister type


  • Package mounted radiator


  • Exhaust flange outlet


  • Primary fuel filter with integral water separator
  • Secondary fuel filter
  • Fuel priming pump


  • IP23 Protection
  • Matched to the performance and output characteristics of Cat engines

Power Termination

  • Busbar

Control Panel

  • EMCP 4 genset controller


  • Paint - Caterpillar Yellow except rails and radiators gloss black

Control Panels

  • Speed adjust
  • Text alarm / event descriptions
  • Generator set packages include Caterpillar' s Voltage Regulator
  • Auto / start / stop control
  • 24 Volt DC operation
  • EMCP 4.2B
  • Generator mounted - Rear facing
  • Controls:
  • Environmental sealed front face
  • Engine cool-down timer
  • Emergency stop pushbutton
  • Limiter and exciter diode monitor
  • Engine cycle crank
  • Lamp test
  • Alarm acknowledge
  • Customizable screens
  • PLC functionality
  • Load histogram feature
  • 0 True RMS AC metering, 3-phase, +/-2% accuracy
  • Operating hours
  • Digital indication for:
  • DC volts
  • RPM
  • Coolant temperature
  • Amps (per phase & average)
  • Oil pressure (psi, kPa or bar)
  • Volts (L-L & L-N)
  • Frequency (Hz)
  • Power factor (per phase & average)
  • kW (per phase, average & percent)
  • High coolant temperature
  • Low oil pressure
  • Warning / shutdown with common LED indication of shutdowns for01/10/2018:
  • kVAr (per phase, average & percent)
  • kVA (per phase, average & percent)
  • kVAr (per phase, average & percent)
  • Emergency stop
  • Overspeed
  • Failure to start (overcrank)
  • Programmable protective relaying functions:
  • Low coolant temperature
  • Generator phase sequence
  • Low coolant level
  • 1 Programmable digital outputs
  • Gear type lube oil pump
  • Battery disconnect switch
  • Caterpillar yellow with high gloss black rails and radiator
  • NEMA Class H insulation, Class H temperature rise at 40C ambient (125C prime / 150C standby)
  • Medium Voltage: Form wound - Permanent magnet - Winding temperature detectors - NEMA Class H insulation, Class H temperature rise at 40C ambient (125C prime / 150C standby) - Busbar connections, right side extension box, bottom cable entry - NEMA standard hole pattern
  • Fumes disposal
  • Permanent magnet
  • NEMA Class H insulation, Class H temperature rise at 40C ambient (125C prime / 150C standby)
  • Permanent magnet
  • NEMA standard hole pattern
  • Reverse reactive power (kVAr) (32RV)
  • Over / under voltage (27/59)
  • NEMA Class H insulation, Class H temperature rise at 40C ambient (125C prime / 150C standby)
  • Permanent magnet
  • Class H insulation, Class F temperature rise at 40C ambient (105C prime / 130C standby)
  • Permanent magnet
  • SAE Standard rotation
  • Internal excitation
  • Flexible fuel lines - shipped loose
  • IVR includes reactive droop capability, 3-phase voltage sensing, KVAR/PF modes, RFI suppression, min / max exciter
  • Busbar connections, right side extension box, bottom cable entry
  • Medium Voltage:
  • Communications:
  • NEMA standard hole pattern
  • Lubricating oil
  • Oil drain lines and valve
  • 3 Phase brushless, salient pole
  • 24 Volt electric starting motor
  • 6 Customer programmable digital inputs
  • Dry exhaust manifold
  • Accessory module data link
  • ADEM A3
  • Form wound
  • ATAAC - 3516E Package Radiators shipped installed
  • Busbar connections, top center mounted, top cable entry
  • High Voltage:
  • 4 Programmable relay outputs (Form A)
  • Anti Condensation Space Heater
  • NEMA Class H insulation, Class H temperature rise at 40C ambient (125C prime / 150C standby)
  • Controls: Speed adjust - Auto / start / stop control - Engine cool-down timer - Engine cycle crank - Alarm acknowledge - Lamp test - Load histogram feature - PLC functionality - Customizable screens -0 True RMS AC metering, 3-phase, +/-2% accuracy
  • NEMA standard hole pattern
  • 45 Amp charging alternator
  • 3 Analog inputs
  • Random wound
  • Anti-vibration mounts (shipped loose)
  • Cat Connect
  • Oil filter, filler and dipstick
  • Rails - engine / generator / radiator mounting
  • Customer data link (Modbus RTU)
  • Flywheel and flywheel housing - SAE No. 00
  • English
  • Busbar connections, right side extension box, bottom cable entry
  • Serial annunciator module data link
  • Integral lube oil cool
  • Certified standard PGS provided
  • Winding temperature detectors
  • 1 Programmable relay outputs (Form C)
  • Reverse power (kW) (32)
  • Form wound - Permanent magnet
  • Right hand servicing
  • Overcurrent (50/51)
  • 6 Lead
  • Flanged faced outlet(s)
  • Low Voltage:
  • Number of I/O varies on options selected:
  • Battery and battery rack w/cables
  • Over / under frequency (81 o/u)
  • Fuel cooler; not included with packages without radiator
  • Busbar connections, right side extension box, bottom cable entry
  • Rubber anti-vibration mounts (shipped loose)
  • NEMA standard hole pattern

3516B (60 Hz) Optional Equipment

Control System

  • EMCP 4.3, EMCP 4.4

Air Inlet System

  • Single element filter
  • Dual element air cleaner


  • Exhaust mufflers


  • Permanent magnet excitation (PMG)
  • Internal excitation (IE)
  • Anti-condensation heater
  • Oversize and premium generators

Cooling System

  • Water level switch gauges
  • Standard ambient radiators
  • Coolant
  • Standard ambient ATAAC radiators
  • Optional installed ATAAC radiators
  • Air inlet protection including air shut off magnetic switch
  • Optional installed radiator

Power Termination

  • Circuit breakers, IEC compliant
  • Circuit breakers, UL listed

Control Panels

  • Generator temperature monitoring & protection
  • Remote monitoring software
  • Load share module
  • Digital I/O module

Exhaust System

  • Exhaust Offset
  • Flanges
  • Elbows
  • Y adapters
  • Flange and exhaust expanders
  • Clean emission parets
  • Mufflers
  • Flexible fittings

Fuel System

  • Primary fuel filter


  • Special paint
  • US aid emblem
  • Seismic Certification per applicable building codes: IBC 2000, IBC 2003, IBC 2006, IBC 2009, CBC 2007
  • EEC Declaration of Conformity
  • Integral & sub-base fuel tanks
  • Enclosures: sound attenuated, weather protective
  • Integral & sub-base UL listed dual wall fuel tanks
  • EU Certificate of Conformance (CE)
  • The following options are based on regional and product configuration:
  • Automatic transfer switches (ATS)
  • UL 2200 package


  • Rubber anti-vibration mounts
  • Spring-type vibration isolator
  • IBC isolators

Generators and Attachments

  • Generator conversions IE to PM
  • 380, 440, 480, 600 Volts, 3 phase, 1800 rpm, RW, PM, No. of leads: 6, Picth: 0.6667 - 1600 Frame
  • 380, 440, 480, 600 Volts, 3 phase, 1800 rpm, RW, IE, No. of leads: 6, Picth: 0.6667 - 1600 Frame
  • 380, 416, 440, 480, 600, 2400, 4160 Volts, 3 phase, 1800 rpm, RW, PM, No. of leads: 6, Picth: 0.6667 - 1600 and 1800 Frames
  • Alternator air cleaner
  • Space heater


  • Pyrometer and thermocouples

Lube System

  • Prelube pump groups
  • Oil lever regulator
  • Lube oil


  • Battery chargers
  • Air starting motor with control and silencer
  • Heavy-duty starting system
  • Oversize batteries
  • Charging alternator

Crankcase Systems

  • Crankcase protection group: No explosion relief valves; Explosion relief valves
  • Crankcase ventilation system

Mounting System

  • Spring type vibration isolators
  • IBC vibration isolators
  • Puck style low efficiency isolators

Power Connections

  • Neutral ground connections
  • Center post busbars
  • Right, left side and rear power connections
  • Grounding groups

Special Tests / Reports

  • Standard engine test charge
  • IBC certification
  • Special package tests: PGS test report @ 1.0 and 0.8 power factors
  • Generator set test report
  • CSA certification
  • Torsional vibration analysis TVA report
  • Fuel consumption test

Starting / Charging Sytem

  • Jacket water heaters
