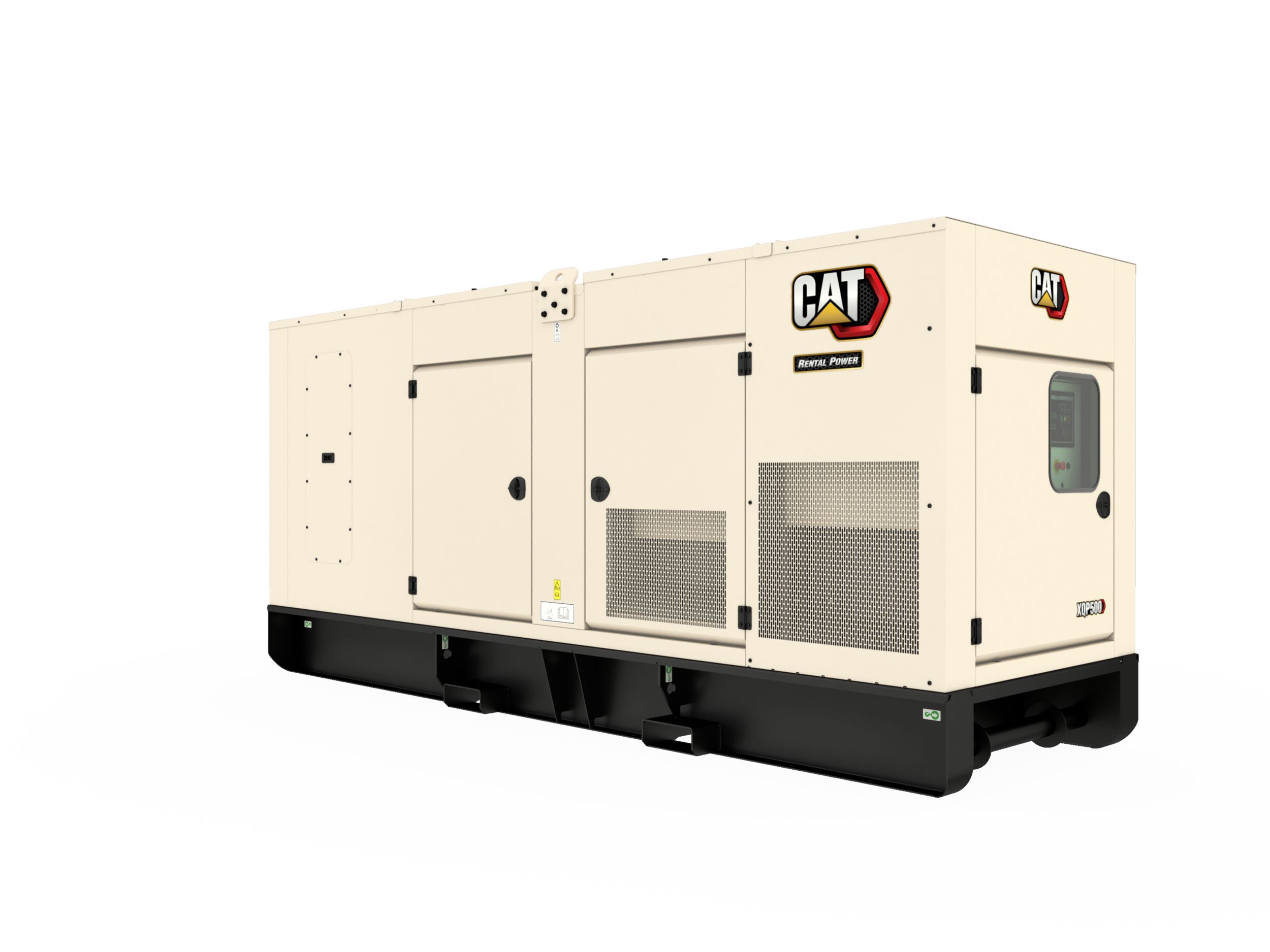

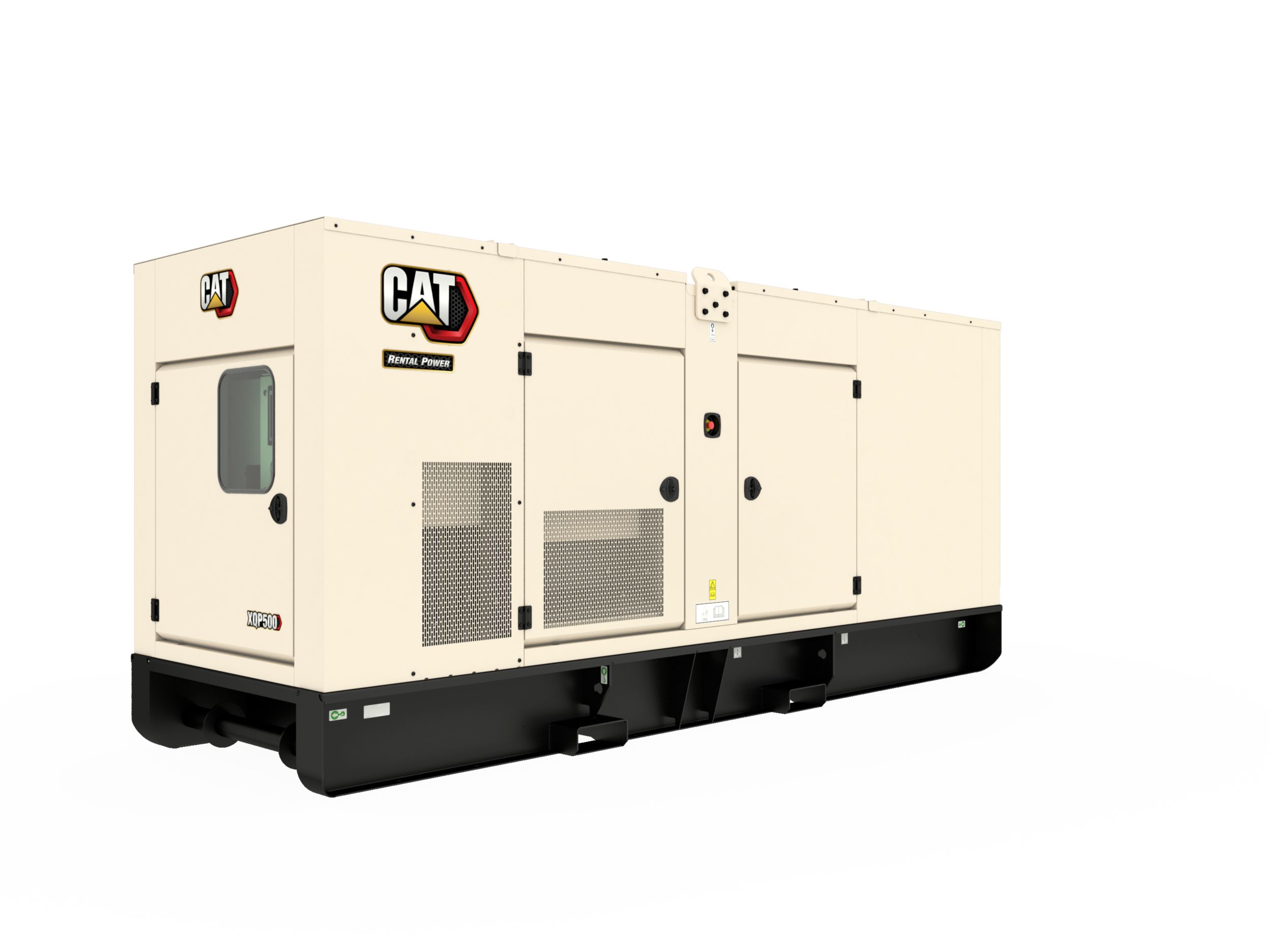

Mobile Generator Sets XQP500 500 kVA Mobile Diesel Generator Set

View Specs Gallery

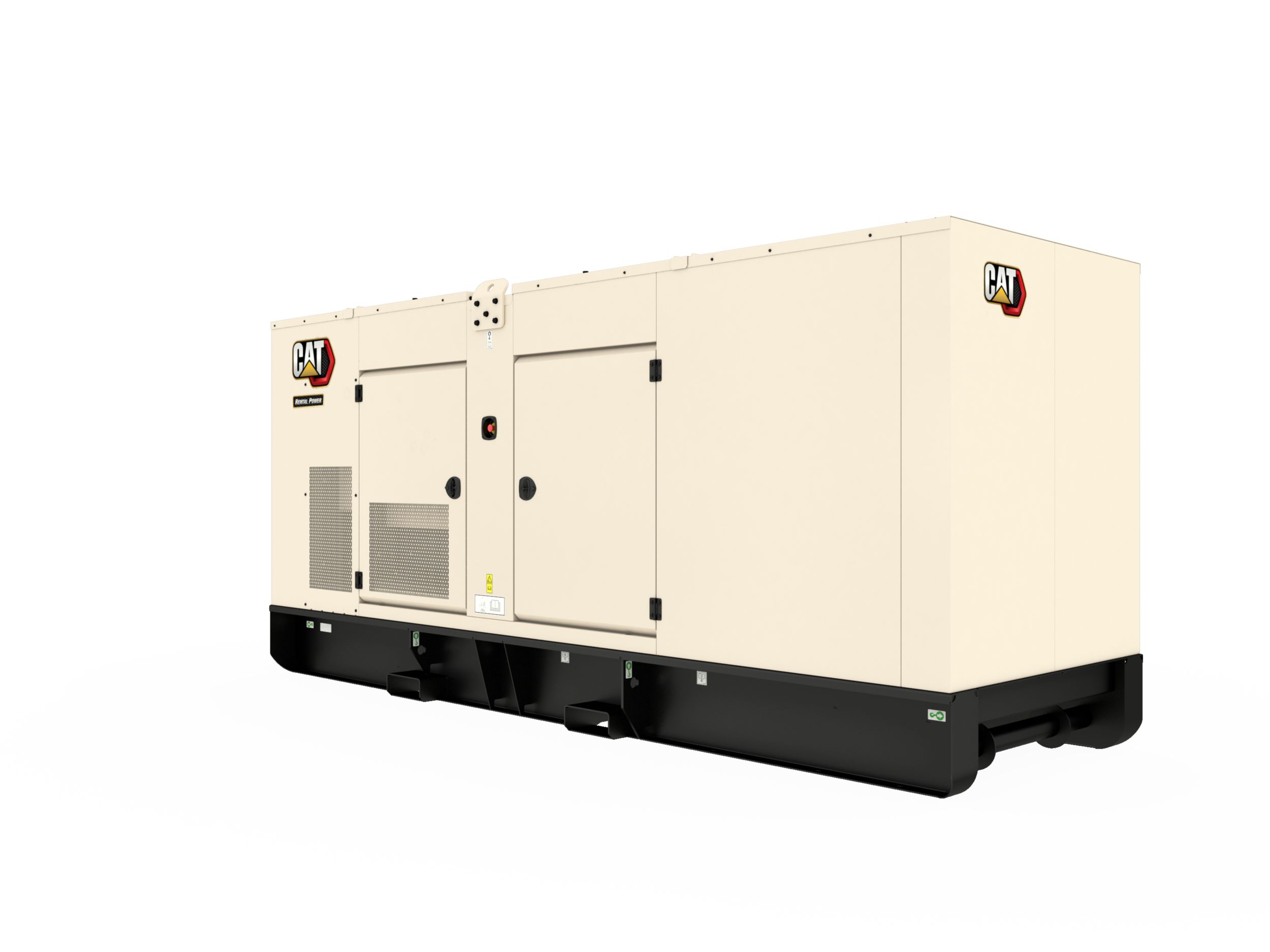

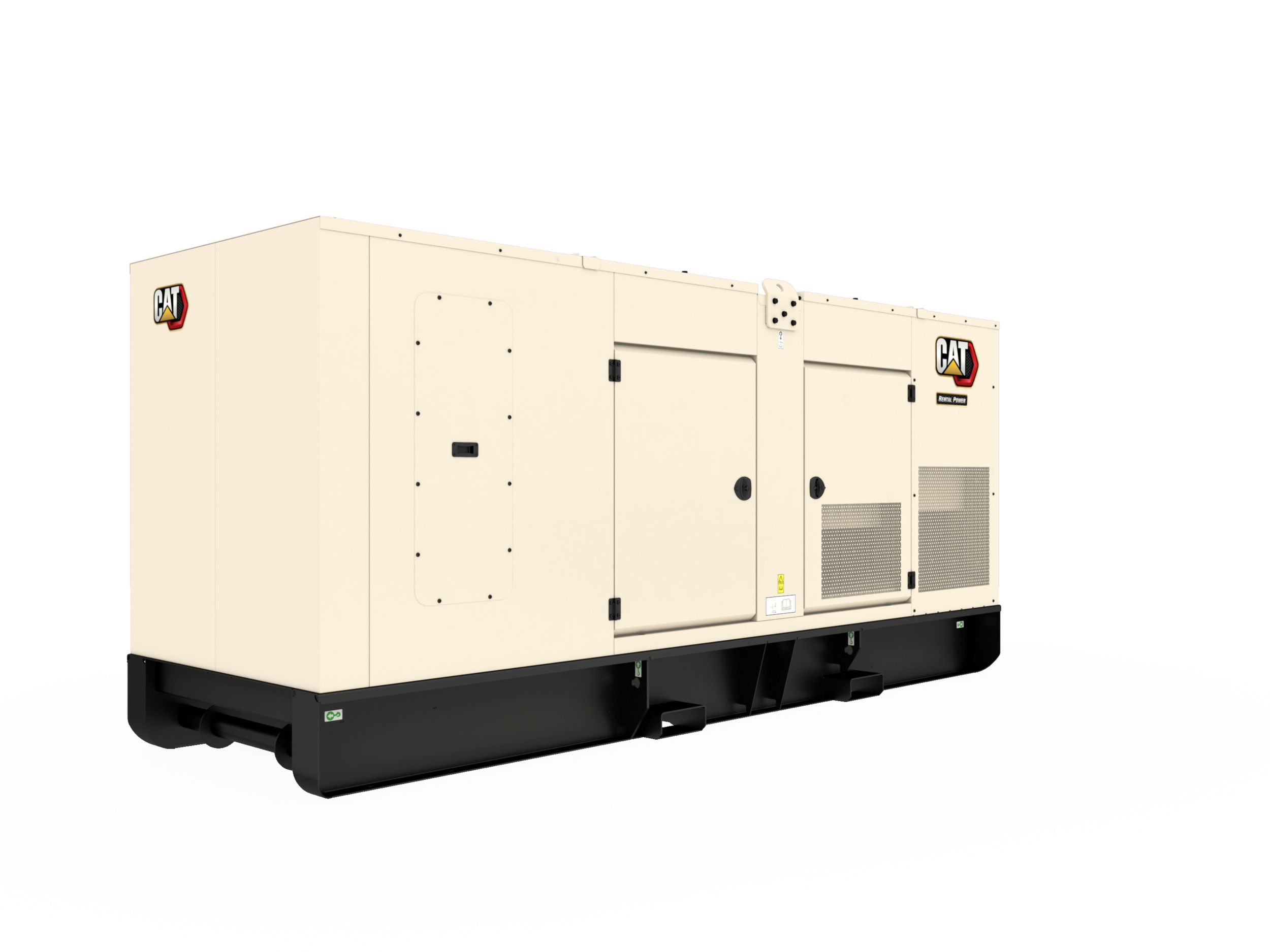

XQP500
Change model

XQP500

Change model

Find Dealer

Request A Price

Overview

This XQP500 generator set is EU Stage IIIA emission standard capable or fuel consumption optimized for customers in non-regulated territories. A unique feature is the introduction of clutch fan drive technology, where the fan no longer needs to runs continuously at full speed and power. This saves additional fuel, while also lowering noise output; an ideal feature when operating at lower loads, in cooler temperatures, or most importantly, in evenings when noise levels are most noticeable.

Selectable 50/60Hz Operation

Easy frequency switch via terminal link eliminate geographical limitations allowing generator set to be used wherever it is needed

Flexible 3-way fuel valve

Extended run time provided by changeover from base tank to external bulk tank

Standard 500 Hour oil change intervals

Maximizes run time before routine service is required

Features At A Glance

Rental ready

Robust, durable product with a range of rental ready features to meet job requirements and applications.

Fuel/Emissions Strategy

Fuel/Emissions Strategy

Emissions Equivalent to R96 EU Stage IIIA or Best Fuel Efficiency.

Cat C15 Diesel Engine

Cat C15 Diesel Engine

Industry proven reliability.

Cat EMCP 4.2B Control Panel

Cat EMCP 4.2B Control Panel

Easy to use digital controls.

Cat LC6100 Generator

Cat LC6100 Generator

Integrated voltage regular for fast response in demanding applications.

Robust Galvanised Enclosure

Robust Galvanised Enclosure

Inhibits corrosion in service. Prevents water ingress, provides security and sound attenuation.

Sound Isolated Operator Panel

Sound Isolated Operator Panel

Improved operator comfort.

Cat Connect

Remote monitoring for fleet management and asset tracking.

Factory Designed, Built and Tested

Factory Designed, Built and Tested

Single-source Supplier

World Wide Product Support

World Wide Product Support

Supported by an industry leading global dealer network.

500 hr Oil Change Intervals

500 hr Oil Change Intervals

Reducing operating costs and producing less waste.

Improved Transportability

Improved Transportability

Drag bars, Lifting frame, Fork lift pockets and 4 point lift.

Additional Options Available

Additional Options Available

Synchronising controls. Extended Service interval kits.

Full Specifications Standard Equipment

Product Specifications for XQP500

Download Print

US
Metric

Generator Set

Rating Prime	500 kVA 500 kVA
Frequency	50/60 Hz 50/60 Hz
Voltage	127 - 480 V 127 - 480 V

Engine

Engine	C15 ACERT Diesel Engine C15 ACERT Diesel Engine
Fuel	Diesel Diesel

Dimensions

Width	77 in 1954 mm
Height	90 in 2292 mm
Length	200.9 in 5103 mm
Weight - With Lube Oil and Coolant	13176 lb 5977 kg

Fuel Consumption EU Stage IIIA

100% Load 50Hz	29.1 gal/hr 110.2 l/hr
100% Load 60Hz	32 gal/hr 121 l/hr
75% Load 50Hz	23 gal/hr 86.8 l/hr
75% Load 60Hz	26.3 gal/hr 99.7 l/hr
50% Load 50Hz	16.4 gal/hr 62 l/hr
50% Load 60Hz	18.3 gal/hr 69.2 l/hr

Fuel consumption Best Fuel Efficiency

100% Load 50Hz	29 gal/hr 102 l/hr
100% Load 60Hz	28.3 gal/hr 107 l/hr
75% Load 50Hz	20.1 gal/hr 76.2 l/hr
75% Load 60Hz	22 gal/hr 83 l/hr
50% Load 50Hz	14.3 gal/hr 54 l/hr
50% Load 60Hz	15.7 gal/hr 59.3 l/hr

Noise rating (with enclosure) EU Stage IIIA

Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)	77.5 dB(A) 77.5 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)	79.8 dB(A) 79.8 dB(A)

Noise rating (with enclosure) Best Fuel Efficiency

Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)	80.1 dB(A) 80.1 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)	80 dB(A) 80 dB(A)

XQP500 Standard Equipment

Print

CAT C15 Diesel Engine

Turbo charged.

Generator

LC6114F frame.

Air Filter

Cyclonic/paper with dust cup and service indicator.

Cat Connect remote monitoring

Provides package monitoring and management.

Cooling System

Package mounted radiator with vertical air discharge. Filled from factory.

Charging / Starting System

24V heavy duty starting motor and charging alternator c/w battery isolator.

Fuel System

Dual wall fuel tank with 3 way directional valve for external supply.

Control Panel

Digital EMCP4.2B set mounted controller.

Distribution

Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off.

Structure

Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. Base frame is wider than enclosure to protect generator set during transportation.

Enclosure

Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance.

Exhaust

Integrated spark arresting silencer.

Lube Oil

On engine primary and secondary oil filters. Filled from factory.

General

Factory tested and inspected.
