Heavy Rock Bucket 11 m³ (14.4 yd³) - 565-2053

Request A Price Find Dealer

Key Specs

Material Density: 3034 lb/yd³; 1.8 t/m³

Wear Package: Extreme Duty - Impact; Extreme Duty - Impact

Ground Engaging Tool (GET) System: Cat C85; Cat C85

11 m³ (14.4 yd³) - 565-2053
Change model

Overview

11 m³ (14.4 yd³) Heavy Rock bucket for the 6020B Hydraulic Mining Shovel

Features At A Glance

Efficient

Pass matched to Cat and Unit Rig trucks for an efficient, cost-effective system at your mine site.

Maximum Payload

Rated at ISO 7451 payload standards with a 1:1 heap ratio

Support When You Need It

Cat mining buckets are fully supported by the Cat dealer network for round the clock support.

Product Specifications for 11 m³ (14.4 yd³) - 565-2053

Material Density	3034 lb/yd³ 1.8 t/m³
Wear Package	Extreme Duty - Impact Extreme Duty - Impact
Ground Engaging Tool (GET) System	Cat C85 Cat C85
Machine Model	6020B 6020B
Capacity	14.4 yd³ 11 m³
Weight	29,275 lb 13 279 kg
Outer Width	135.8 in 3450 mm
Inner Width	118.1 in 3000 mm

Product Specifications for 11 m³ (14.4 yd³) - 565-2053

Download Print

Material Density	3034 lb/yd³ 1.8 t/m³
Wear Package	Extreme Duty - Impact Extreme Duty - Impact
Ground Engaging Tool (GET) System	Cat C85 Cat C85
Machine Model	6020B 6020B
Capacity	14.4 yd³ 11 m³
Weight	29,275 lb 13 279 kg
Outer Width	135.8 in 3450 mm
Inner Width	118.1 in 3000 mm

See how 11 m³ (14.4 yd³) - 565-2053 compares against frequently compared products.

Buckets - Mining Shovels

Selected

11 m³ (14.4 yd³) - 565-2053

Material Density: 3034 lb/yd³; 1.8 t/m³
Wear Package: Extreme Duty - Impact; Extreme Duty - Impact
Ground Engaging Tool (GET) System: Cat C85; Cat C85

Buckets - Mining Shovels

15 m³ (19.6 yd³) - 456-3021

Material Density: 3371 lb/yd³; 2 t/m³
Wear Package: Extreme Duty - Abrasion; Extreme Duty - Abrasion
Ground Engaging Tool (GET) System: Cat C85; Cat C85

View Details

Buckets - Mining Shovels

15 m³ (19.6 yd³) - 462-8887

Material Density: 3371 lb/yd³; 2 t/m³
Wear Package: Heavy Duty - Abrasion; Heavy Duty - Abrasion
Ground Engaging Tool (GET) System: Cat C85; Cat C85

View Details

Tools And Expert Help At Every Turn

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Photos

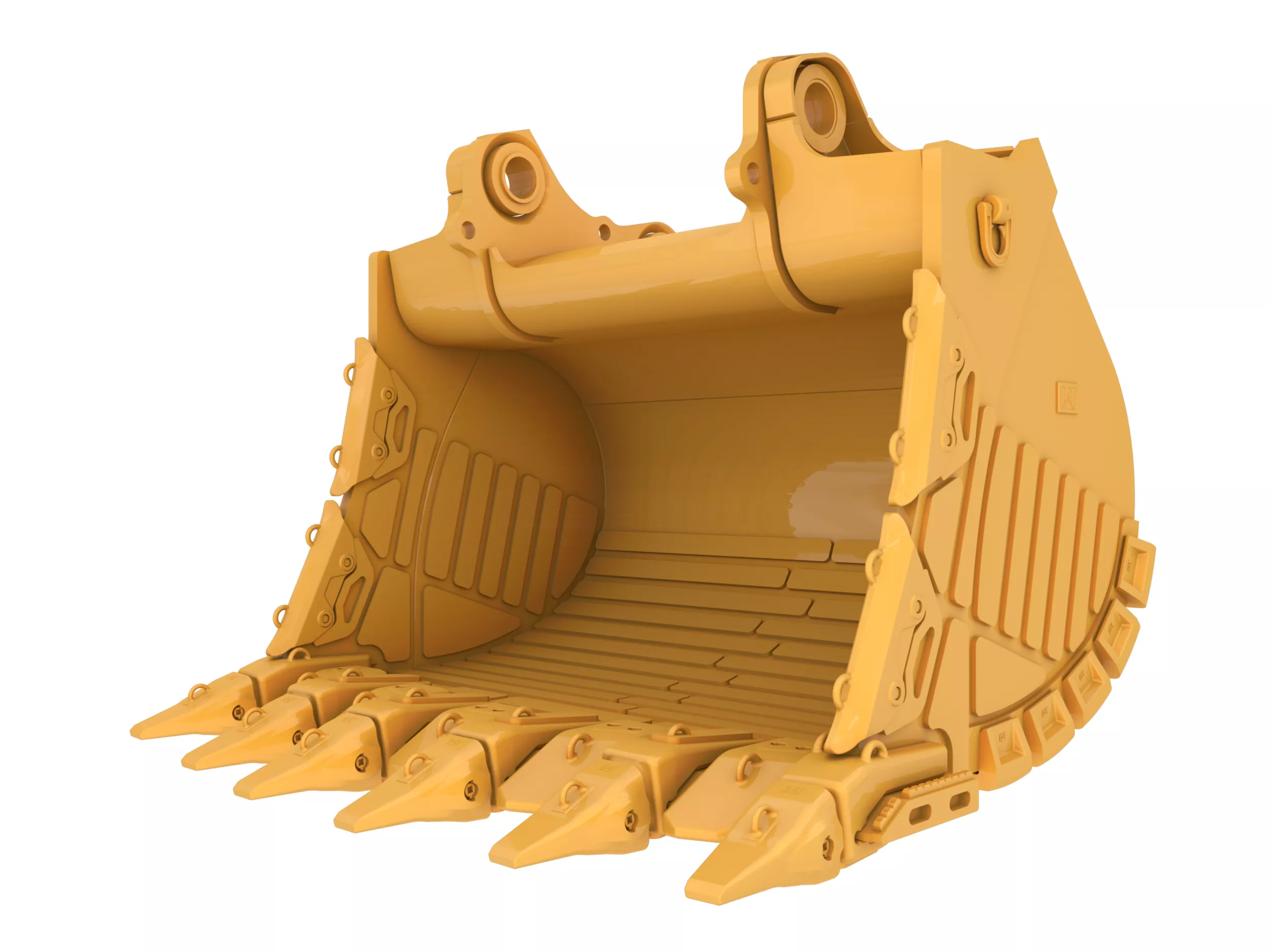

565-2053_11 m³ (14.4 yd³) Heavy Rock backhoe bucket
