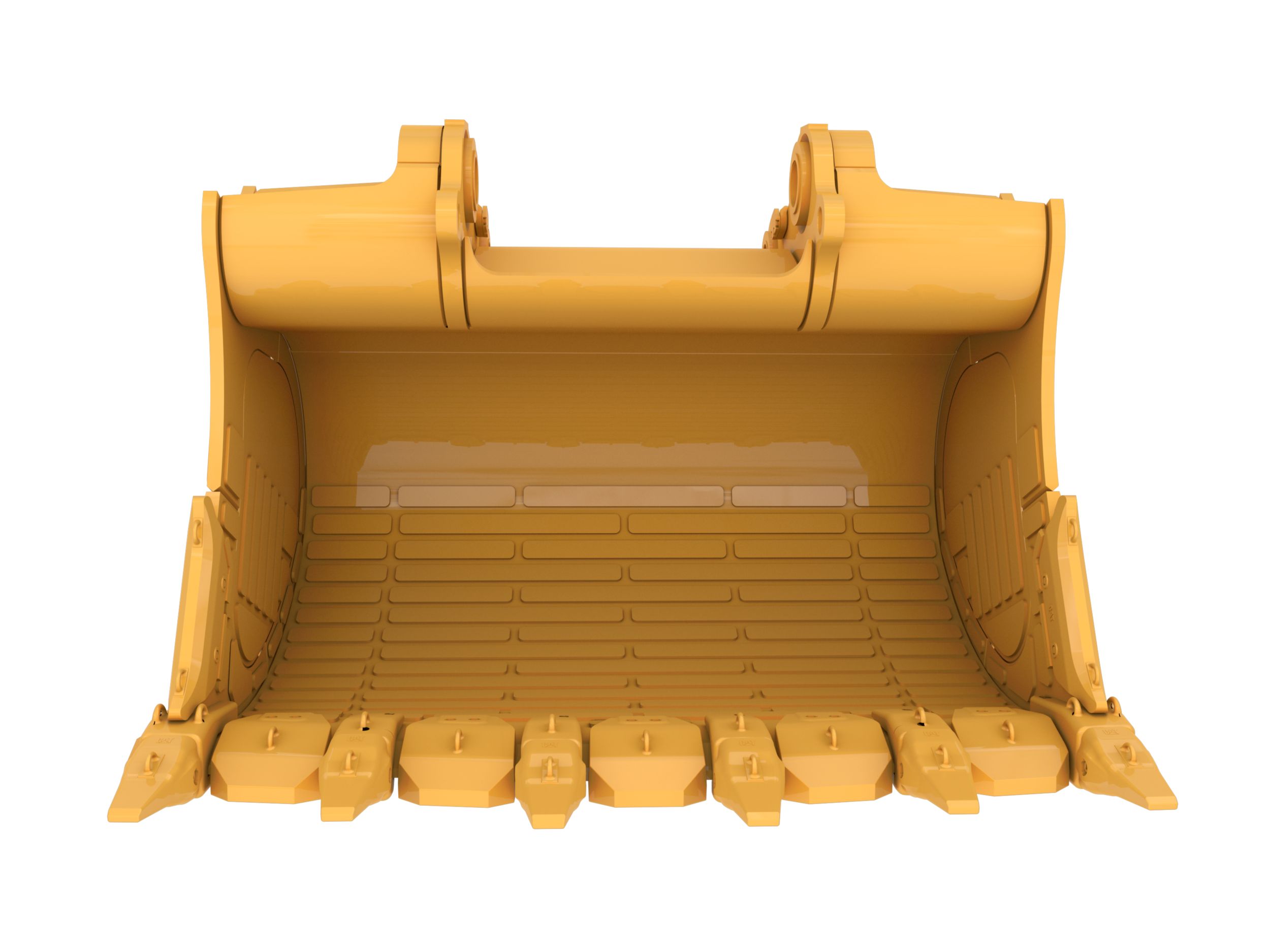

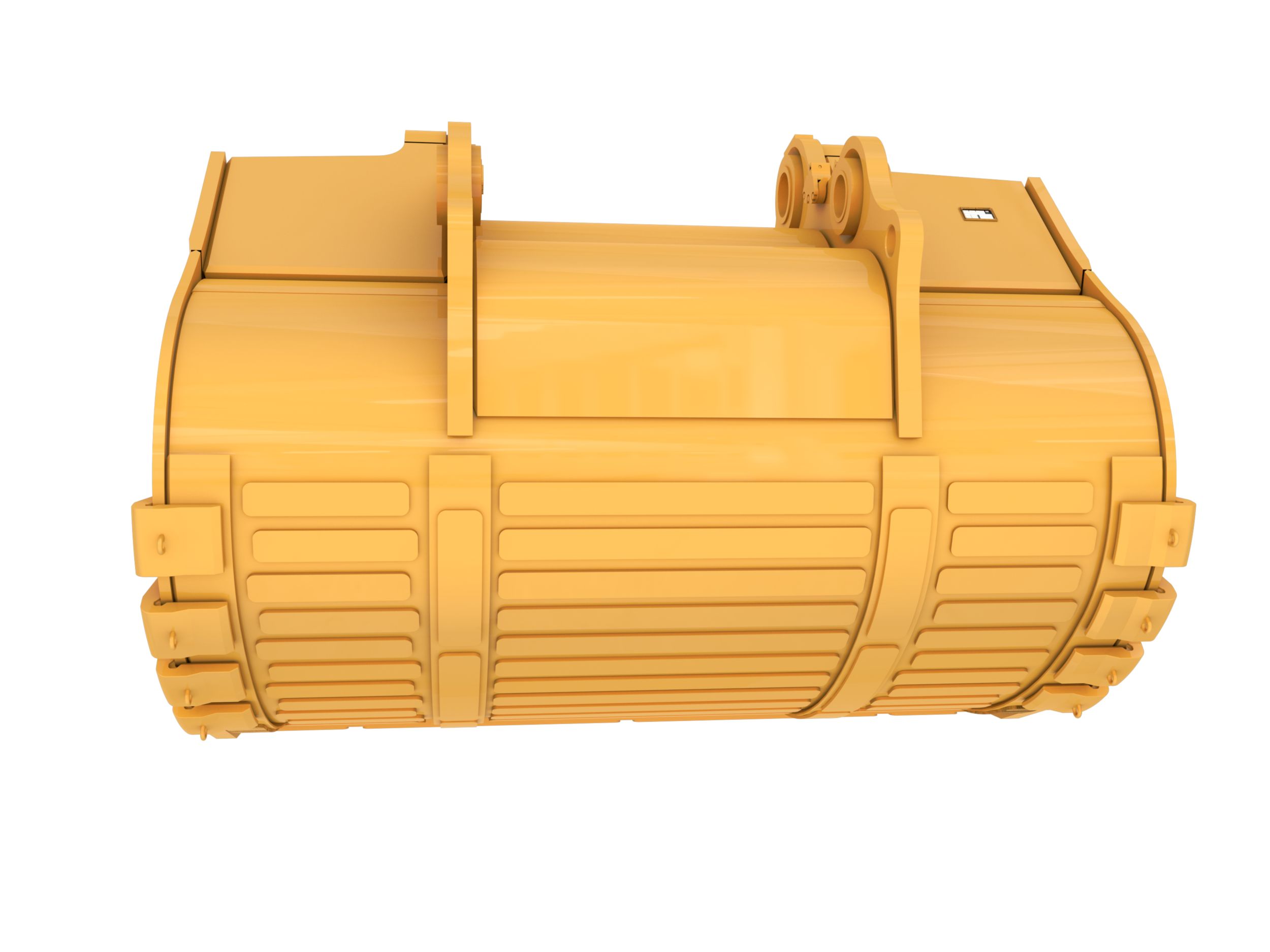

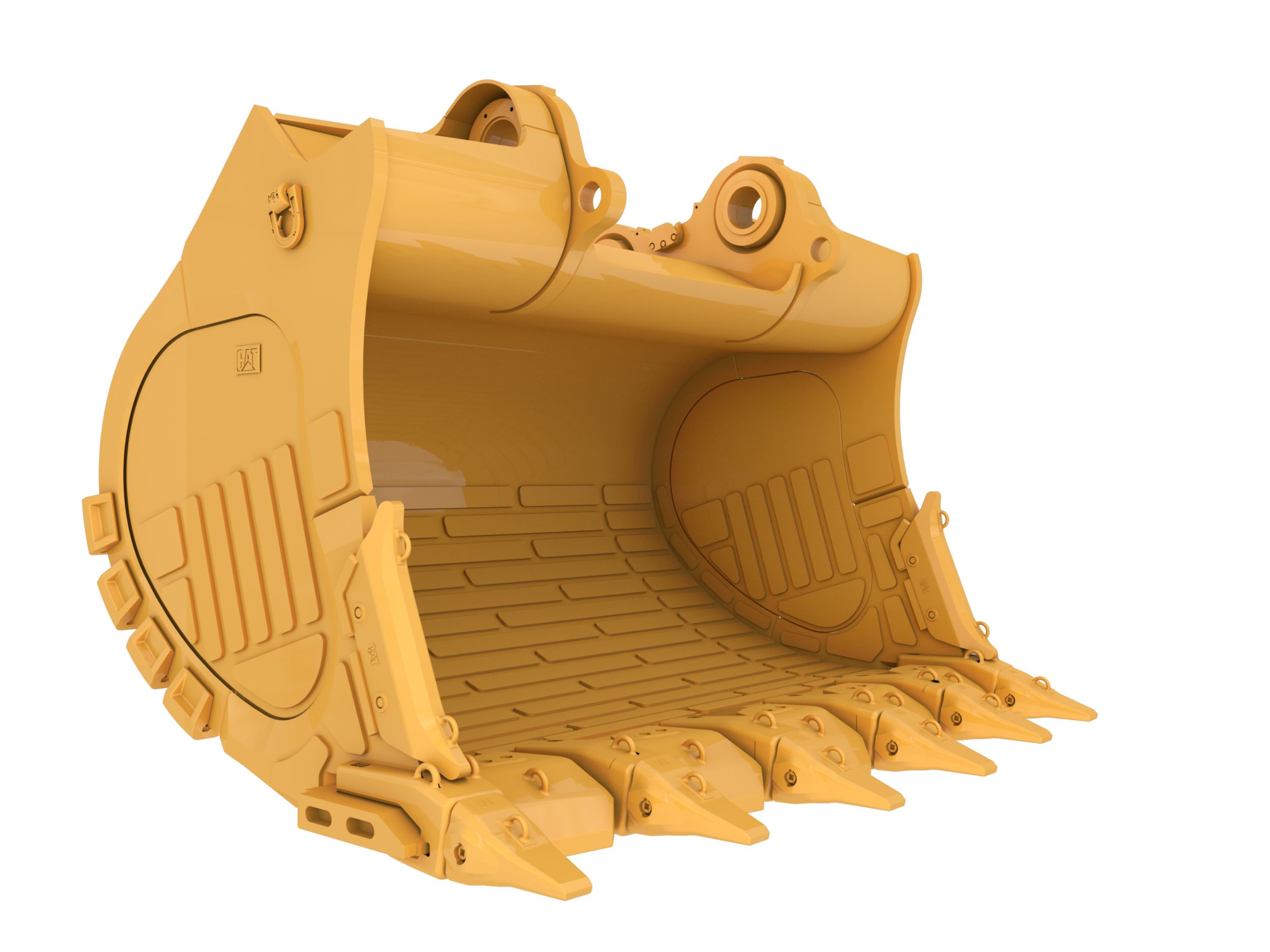

479-4506_17 m³ (22.2 yd³) Standard Rock Bucket

Standard Rock Bucket 17 m³ (22.2 yd³) - 479-4506

Request A Price Find Dealer

Key Specs

Material Density
3034 lb/yd³
1.8 t/m³
Wear Package
Heavy Duty - Impact
Heavy Duty - Impact
Ground Engaging Tool (GET) System
Cat C85
Cat C85

Overview

Cat Standard Rock buckets are production-oriented buckets designed for use in medium-density material, which can stick to the walls of other buckets. Standard Rock buckets come equipped with wear protection for the leading edges and heel. Wear plates are usually Quenched and Tempered for maximum durability in high-impact conditions.

Benefits

Efficient

Sized and designed to work as part of a machine loading system, for high productivity and the lowest cost per ton.

Maximum Payload

A wide variety of sizes and wear packages are available, so you can ideally match your bucket and GET to your application.

Fully Supported

Cat mining buckets are fully supported by the Cat dealer network for round the clock support.

Product Specifications for 17 m³ (22.2 yd³) - 479-4506

Material Density 3034 lb/yd³ 1.8 t/m³
Wear Package Heavy Duty - Impact Heavy Duty - Impact
Ground Engaging Tool (GET) System Cat C85 Cat C85
Machine Model 6030 6030
Capacity 22.2 yd³ 17 m³
Weight 41901 lb 19006 kg
Outer Width 166.9 in 4240 mm
Inner Width 146.9 in 3730 mm
