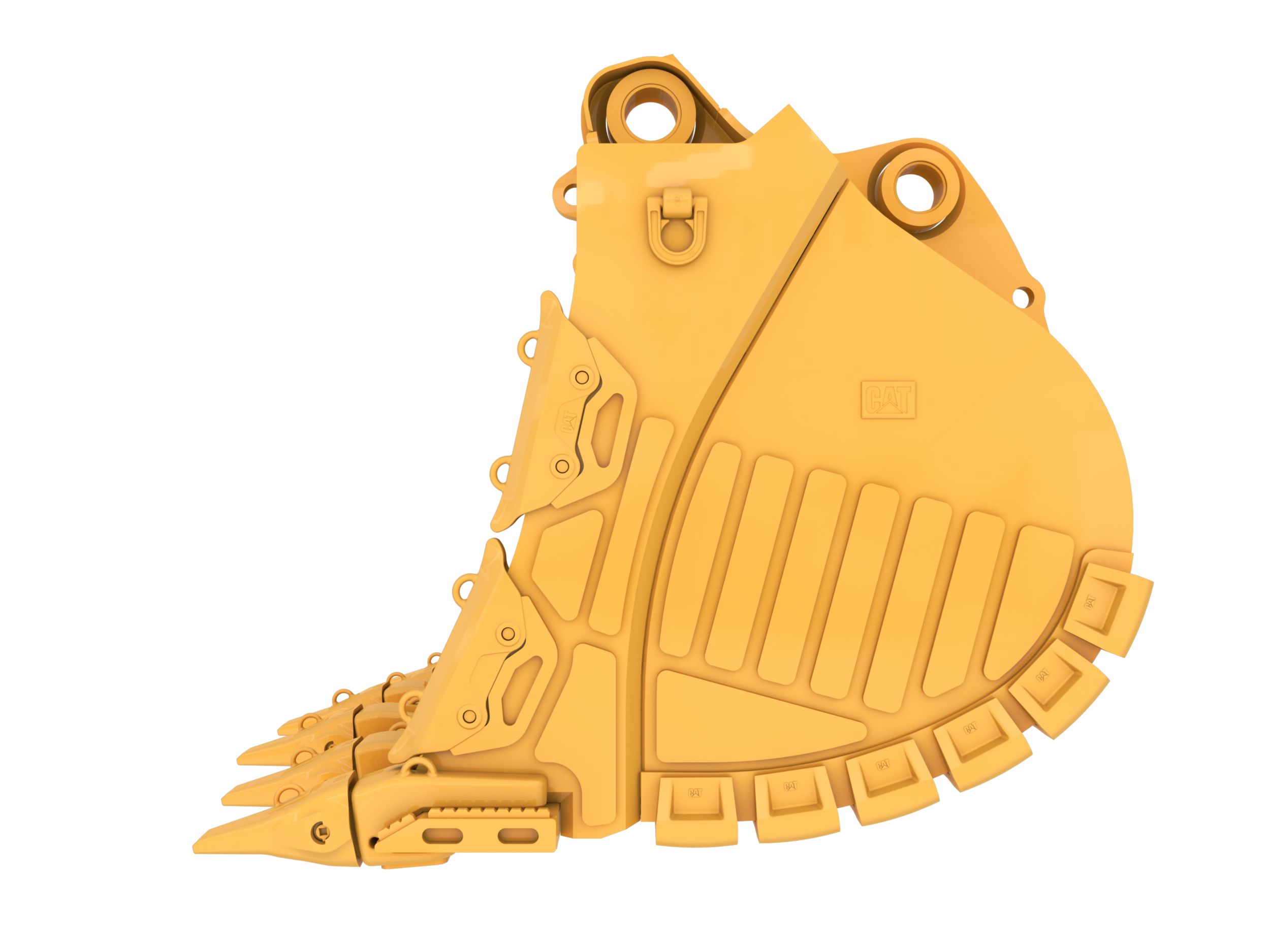

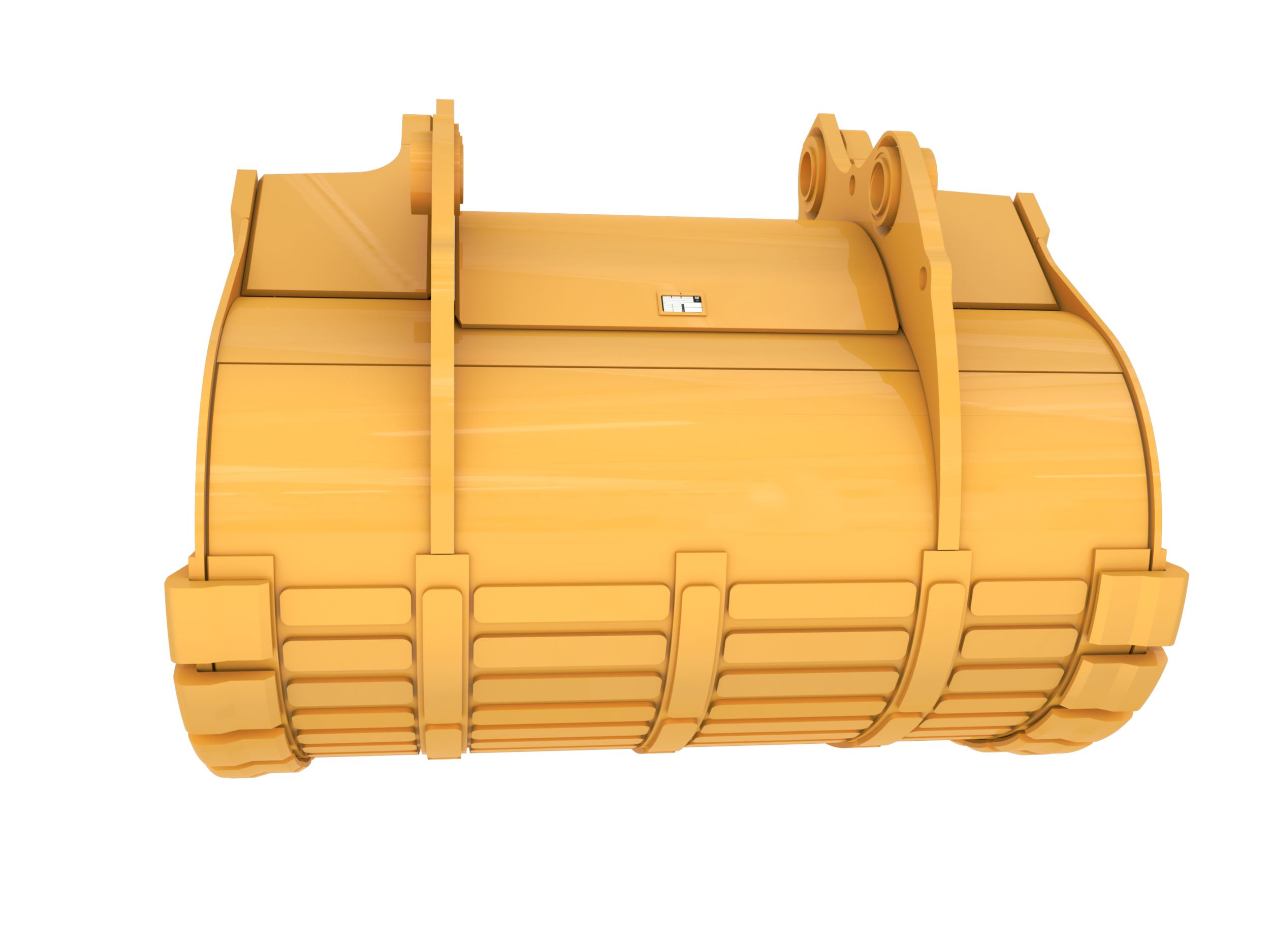

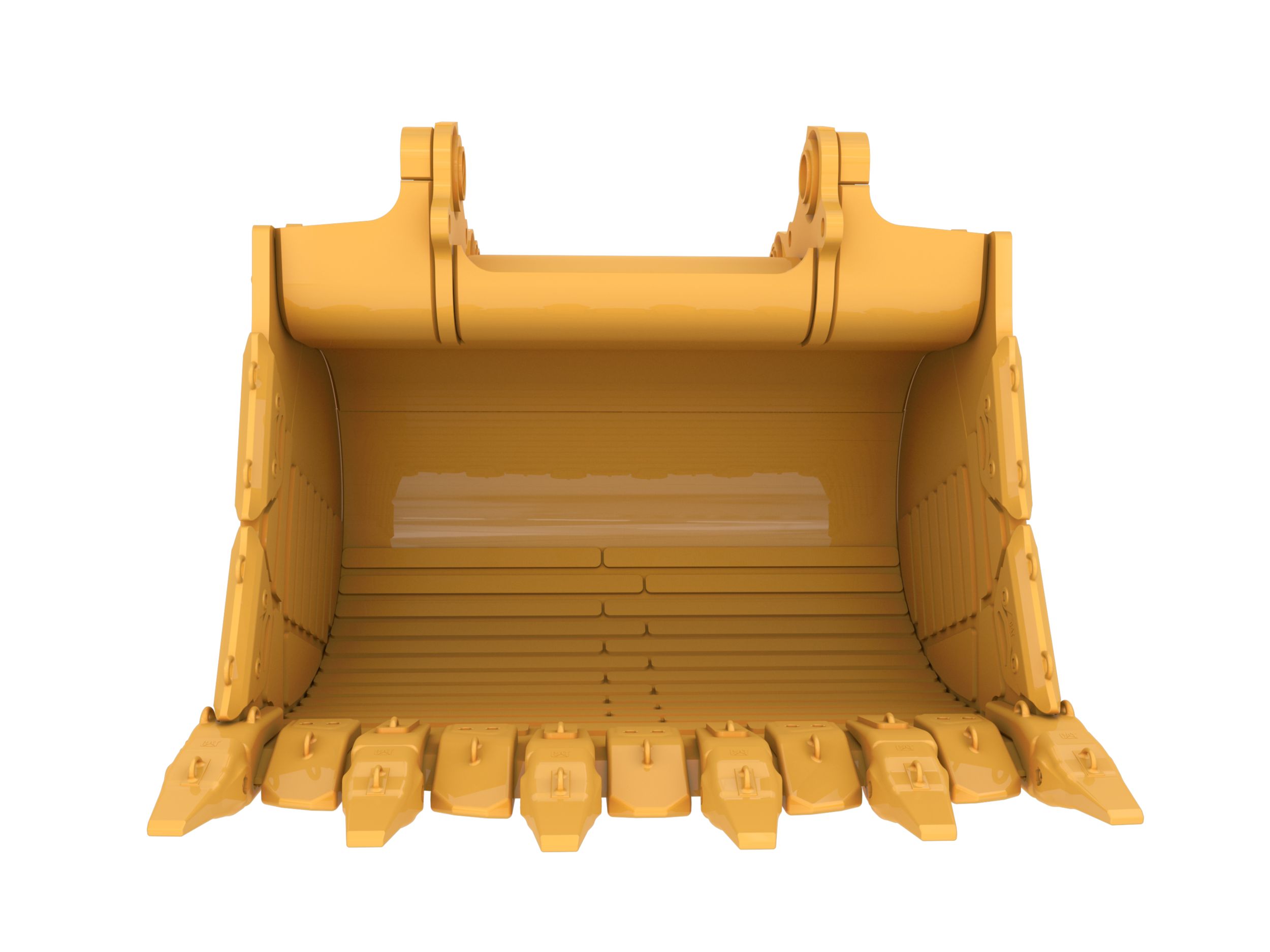

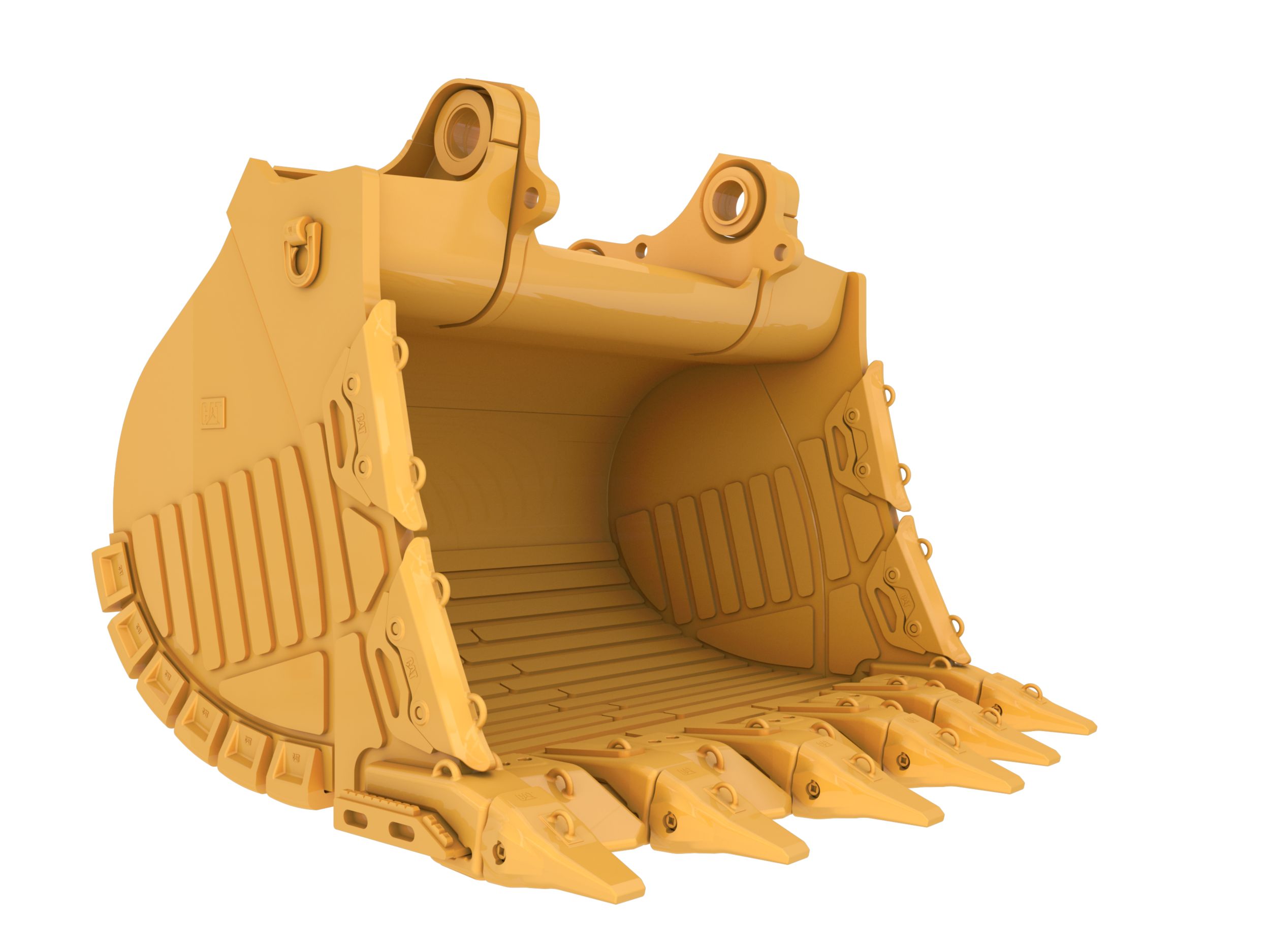

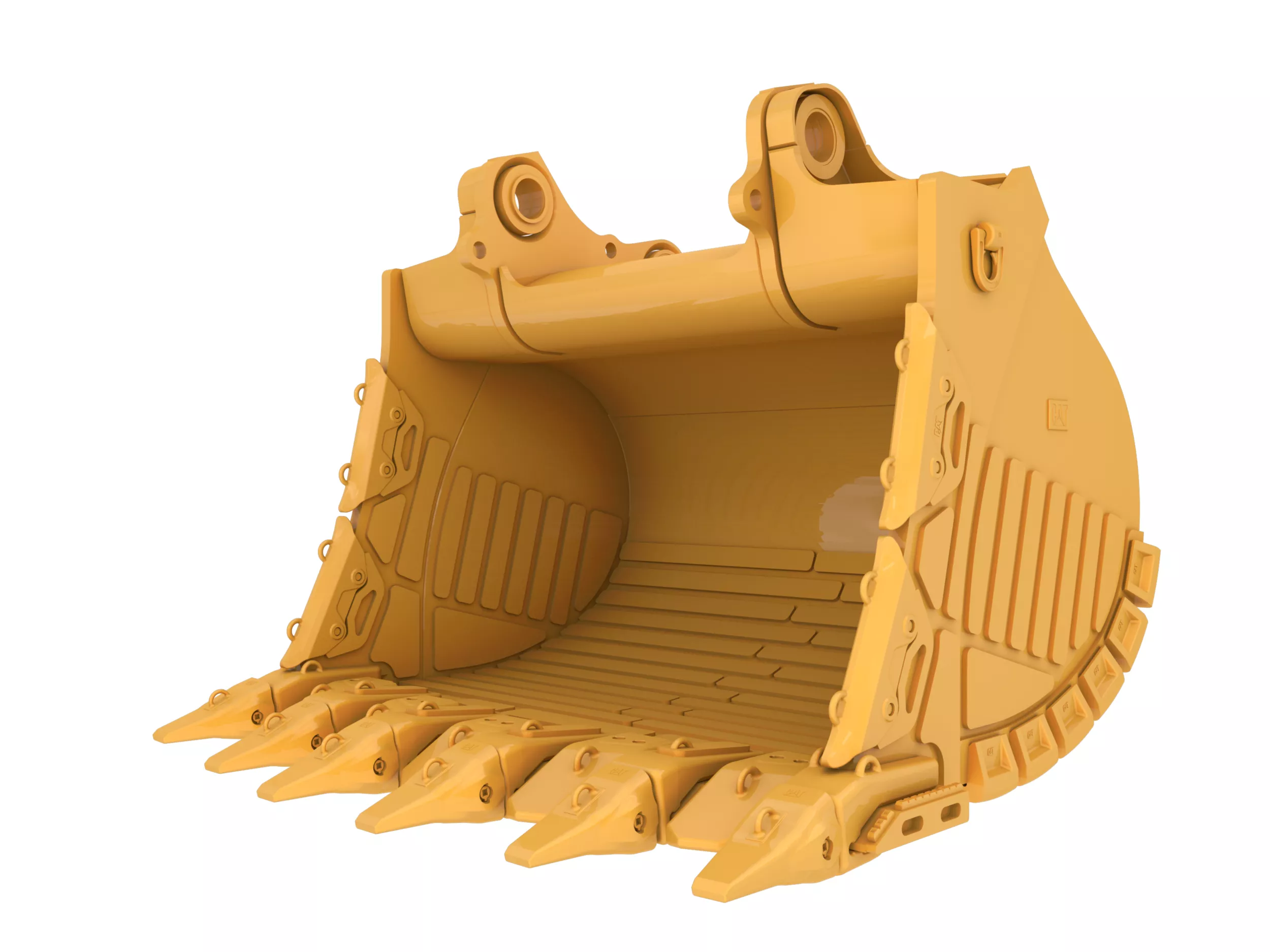

558-1377_12 m³ (15.7 yd³) Standard Rock Bucket

Standard Rock Bucket 12 m³ (15.7 yd³) - 558-1377

Request A Price Find Dealer

Key Specs

Material Density
2865 lb/yd³
1.7 t/m³
Wear Package
Extreme Duty - Abrasion
Extreme Duty - Abrasion
Ground Engaging Tool (GET) System
Cat C85
Cat C85

Overview

Cat Standard Rock buckets are production-oriented buckets designed for use in medium-density material, which can stick to the walls of other buckets. Standard Rock buckets come equipped with wear protection for the leading edges and heel. Wear plates are usually Quenched and Tempered for maximum durability in high-impact conditions.

Benefits

Efficient

Sized and designed to work as part of a machine loading system, for high productivity and the lowest cost per ton.

Maximum Payload

A wide variety of sizes and wear packages are available, so you can ideally match your bucket and GET to your application.

Fully Supported

Cat mining buckets are fully supported by the Cat dealer network for round the clock support.

Product Specifications for 12 m³ (15.7 yd³) - 558-1377

Material Density 2865 lb/yd³ 1.7 t/m³
Wear Package Extreme Duty - Abrasion Extreme Duty - Abrasion
Ground Engaging Tool (GET) System Cat C85 Cat C85
Machine Model 6020B 6020B
Capacity 15.7 yd³ 12 m³
Weight 2865 lb 1700 kg
Outer Width 135.8 in 3450 mm
Inner Width 118.1 in 3000 mm

See how 12 m³ (15.7 yd³) - 558-1377 compares against frequently compared products.
