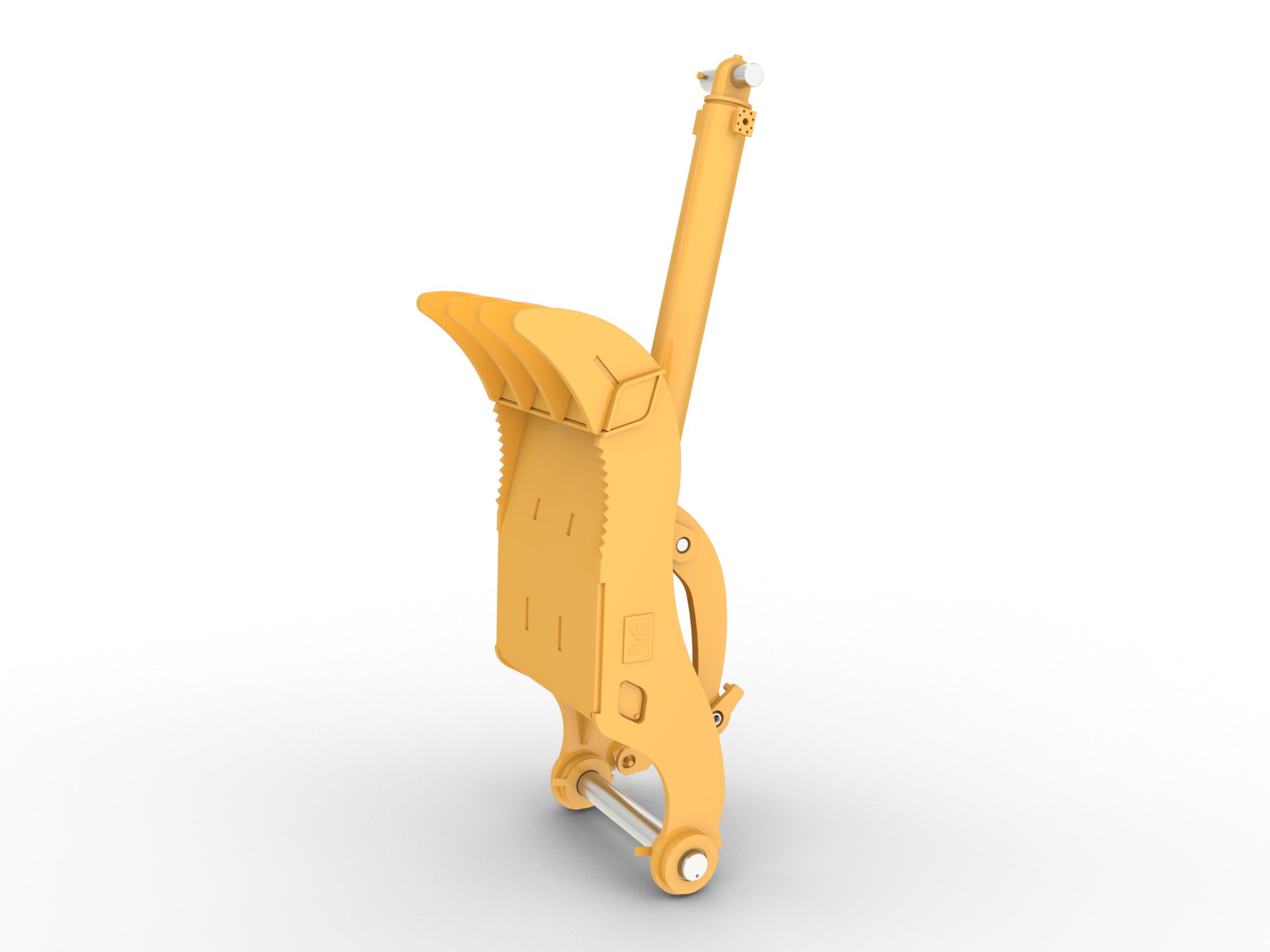

Pro Series Hydraulic Thumbs Pro Plus Thumb 4-tooth 968 mm (38 in): 533-0917

Request A Price Shop Now

Key Specs

Number of Teeth/Tines: 4; 4

Stored Height: 39.4 in; 1001 mm

Overall Width: 38.1 in; 968 mm

Pro Plus Thumb 4-tooth 968 mm (38 in): 533-0917
Change model

Overview

Cat® Pro Plus Thumbs are the ideal add-on to bring a new level of versatility to your Cat machines. Each one is designed for your excavator and bucket combination, so you can take on bigger, bulkier loads without compromising fuel efficiency. We built them to handle more, tough materials to fit your daily needs.

Features At A Glance

Match the bucket’s rotation 100% with load control at all operating limits and positions
Keep precise control your load with an added 60-70 degrees of rotation coverage over Pro Thumbs
Complete below-grade, vertical, or tasks in confined areas with ease. Building high rock walls and loading high-sided trucks are examples of when load control at height is critical.
Increase the productivity of your machine from digging to material handling

Works with bucket or rake to grab, pick, sort, and move materials
Maintain grip and hold on load with the width of the thumb spanning across the bucket
Secure materials between the thumb and bucket or rake with the unique curvature of the thumb and serrations on the tines
Get the best thumb for your tasks. With four tine configurations, select the best option for full grip or straddling the boom during transport.
Managing multiple attachments for a fleet is easier with a coupler system. Select thumb models are compatible with Cat Pin Grabber Couplers, allowing for machines of similar sizes to share thumbs and other attachments.

Easily controlled from cab separate from the bucket
Folds against machine boom for easy storage during travel or other activities
Simple installation, maintenance, and overall operation make thumbs a simpler, more affordable owning and operating choice than grapples

Boost Efficiency and Productivity with Integrated Technology

Never waste time looking for your thumbs again. Cat asset tracking is available for your attachments or anything in your fleet you need to track.
Track your entire fleet of attachments and machines from one source. View thumbs with asset tracking within VisionLink® alongside Product Link™ subscribed equipment.
Keep your assets secure. Thumbs with an asset tracker send an alert if they leave an easy-to-setup site boundary.

Product Specifications for Pro Plus Thumb 4-tooth 968 mm (38 in): 533-0917

Number of Teeth/Tines	4 4
Stored Height	39.4 in 1001 mm
Overall Width	38.1 in 968 mm
Weight	3053 lb 1385 kg
Length	82.7 in 2100 mm
Rotation	Match the bucket's rotation 100 percent Match the bucket's rotation 100 percent
Tines Included	Yes Yes
Machine Class	45 to 52 ton excavators 45 to 52 ton excavators
Interface Type	Pin Grabber Pin Grabber

Product Specifications for Pro Plus Thumb 4-tooth 968 mm (38 in): 533-0917

Download Print

Number of Teeth/Tines	4 4
Stored Height	39.4 in 1001 mm
Overall Width	38.1 in 968 mm
Weight	3053 lb 1385 kg
Length	82.7 in 2100 mm
Rotation	Match the bucket's rotation 100 percent Match the bucket's rotation 100 percent
Tines Included	Yes Yes
Machine Class	45 to 52 ton excavators 45 to 52 ton excavators
Interface Type	Pin Grabber Pin Grabber
