Stiff Link Thumbs Stiff Link Thumb 5-tooth 868 mm (34 in): 589-8389

Request A Price Find Dealer

Key Specs

Number of Teeth/Tines: 5; 5

Stored Height: 20.4 in; 518 mm

Overall Width: 34 in; 868 mm

Stiff Link Thumb 5-tooth 868 mm (34 in): 589-8389
Change model

Overview

Cat® Stiff Link Thumbs are the ideal add-on to add versatility to your Cat machines. Designed for specific excavator and bucket combinations, they help you take on more materials without compromising fuel efficiency. We built them to upgrade your machine to handle larger, bulkier materials.

Features At A Glance

Increase the Productivity of Your Machine

Two static working positions at 90° and 105°
Closed face design holds fine materials better, provides better retention when working in loose material, and prevents material from packing in the frame.
Expanded machine compatibility range due to a lighter design
Increase the productivity with periodic use where a bucket or rake alone would fall short

Works with bucket or rake to grab, pick, sort, and move materials
Stiff Link Thumbs are universal to across range of bucket sizes, making them easier to pair to buckets in a mixed fleet
Get the best thumb for your tasks. With three tine configurations, select the best option for a wide or narrow grip, shorter center times for straddling the boom during transport.
Managing multiple attachments for a fleet is easier with a coupler system. Select thumb models are compatible with Cat Pin Grabber Couplers, allowing for machines of similar sizes to share thumbs and other attachments.

Patented alignment system allows for one person to easily deploy or store the thumb
Folds against machine boom for easy storage during travel or other activities
Simple installation, maintenance, and overall operation make thumbs a simpler, more affordable owning and operating choice than grapples

Boost Efficiency and Productivity with Integrated Technology

Never waste time looking for your thumbs again. Cat asset tracking is available for your attachments or anything in your fleet you need to track.
Track your entire fleet of attachments and machines from one source. View thumbs with asset tracking within VisionLink® alongside Product Link™subscribed equipment.
Keep your assets secure. Thumbs with an asset tracker send an alert if they leave an easy-to-setup site boundary.

Product Specifications for Stiff Link Thumb 5-tooth 868 mm (34 in): 589-8389

Number of Teeth/Tines	5 5
Stored Height	20.4 in 518 mm
Overall Width	34 in 868 mm
Weight	767 lb 348 kg
Length	58.6 in 1487 mm
Rotation	Two static working positions at 90° and 105° Two static working positions at 90° and 105°
Tines Included	Yes Yes
Machine Class	11 to 19 ton excavators 11 to 19 ton excavators
Interface Type	Pin Grabber Pin Grabber

Product Specifications for Stiff Link Thumb 5-tooth 868 mm (34 in): 589-8389

Download Print

Number of Teeth/Tines	5 5
Stored Height	20.4 in 518 mm
Overall Width	34 in 868 mm
Weight	767 lb 348 kg
Length	58.6 in 1487 mm
Rotation	Two static working positions at 90° and 105° Two static working positions at 90° and 105°
Tines Included	Yes Yes
Machine Class	11 to 19 ton excavators 11 to 19 ton excavators
Interface Type	Pin Grabber Pin Grabber

See how Stiff Link Thumb 5-tooth 868 mm (34 in): 589-8389 compares against frequently compared products.

Thumbs

Selected

Stiff Link Thumb 5-tooth 868 mm (34 in): 589-8389

Number of Teeth/Tines: 5; 5
Stored Height: 20.4 in; 518 mm
Overall Width: 34 in; 868 mm

Thumbs

Stiff Link Thumb 5-tooth 545 mm (21 in): 437-2774

Number of Teeth/Tines: 5; 5
Stored Height: 20.39 in; 518 mm
Overall Width: 21.4 in; 545 mm

View Details

Thumbs

Stiff Link Thumb 3-tooth 446 mm (18 in): 584-7229

Number of Teeth/Tines: 3; 3
Stored Height: 22 in; 559 mm
Overall Width: 17.6 in; 446 mm

View Details

Tools And Expert Help At Every Turn

Find Dealer

Payment Calculator

Current Offers

Rental Options

Used Options

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Photos

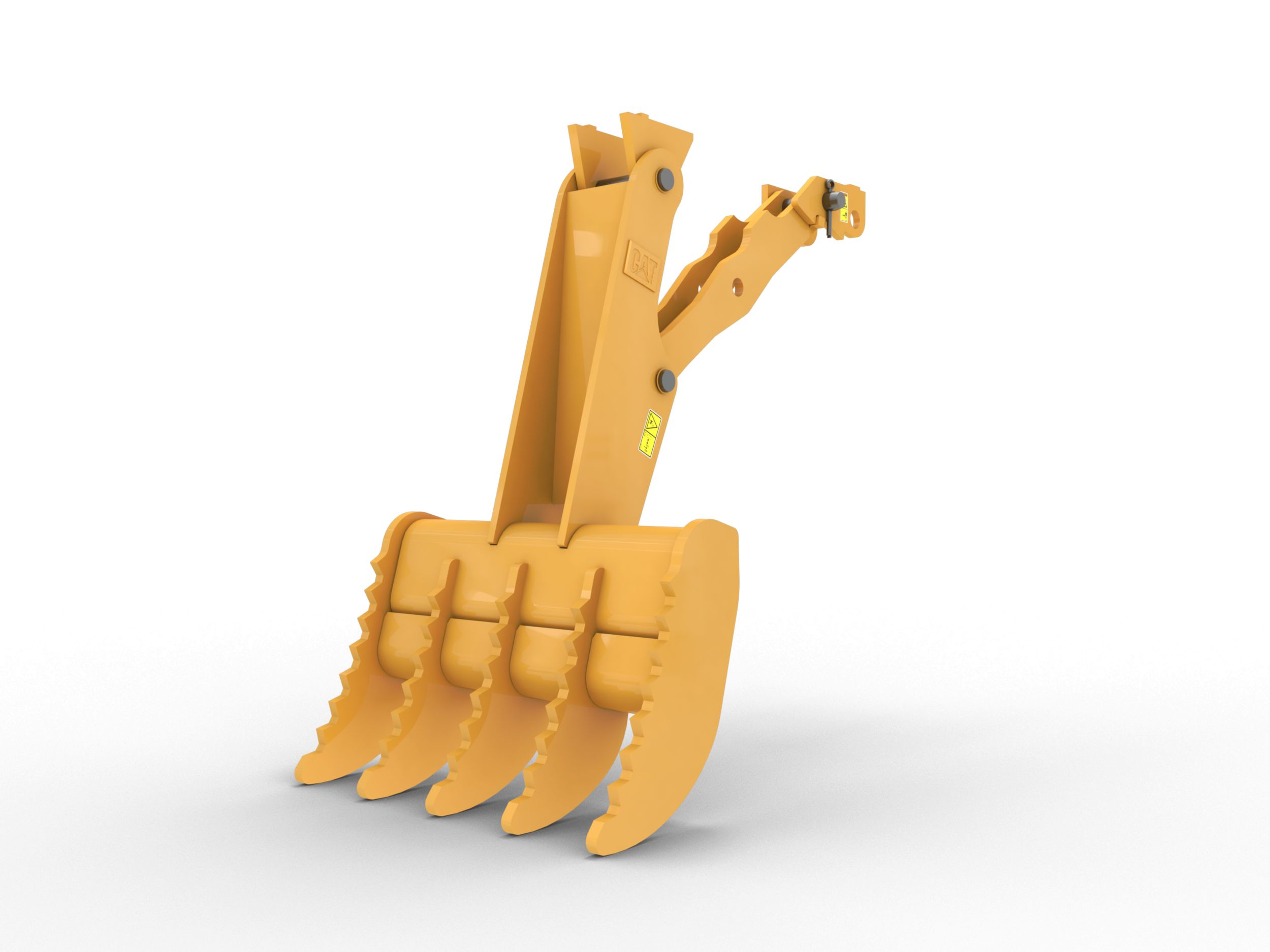

Stiff Link Thumb

Stiff Link thumb working
