Extensive range of rental ready features to meet job requirements and applications.
Low BSFC and Low Emissions* ratings, switchable via Cat Electronic Technician (ET)
* Does not conform to EPA/EU emissions standards
The compact, four-cycle Cat 3516C turbocharged-aftercooled (SCAC) diesel engine provides proven durability and dependability
Best-in-class fuel economy
Fuel system operates on a variety of fuels
50/60 Hz switchable with neither software re-flashing, nor iron changes required
Other engine features include: electric fuel priming, individual cylinder temperature monitoring, and extended filter change intervals
EMCP 4.3 control panel offers engine and generator monitoring and protection
On-Package Auto Paralleling Controls
AGC-4 provides paralleling, load sharing, VFD control, and additional generator protection
Cat SR5 generator designed to match the performance and output characteristics of the Cat Gas engine.
Class H insulation operating at Class F temperature for extended life
Coastal insulation protection and anti-condensation space heaters
Integrated Voltage Regulator (IVR) for fast response in demanding applications
Provides 49°C (120F) ambient capability at 50 Hz & 60 Hz
at the IPP Rating at 750m (2,460 ft) above sea level
Variable frequency fan drive with smart fan control
Energy efficient electric drive fans
Meets 75 dB(A) (50 Hz) / 81 dBA (60 Hz) at 7m (23 ft)

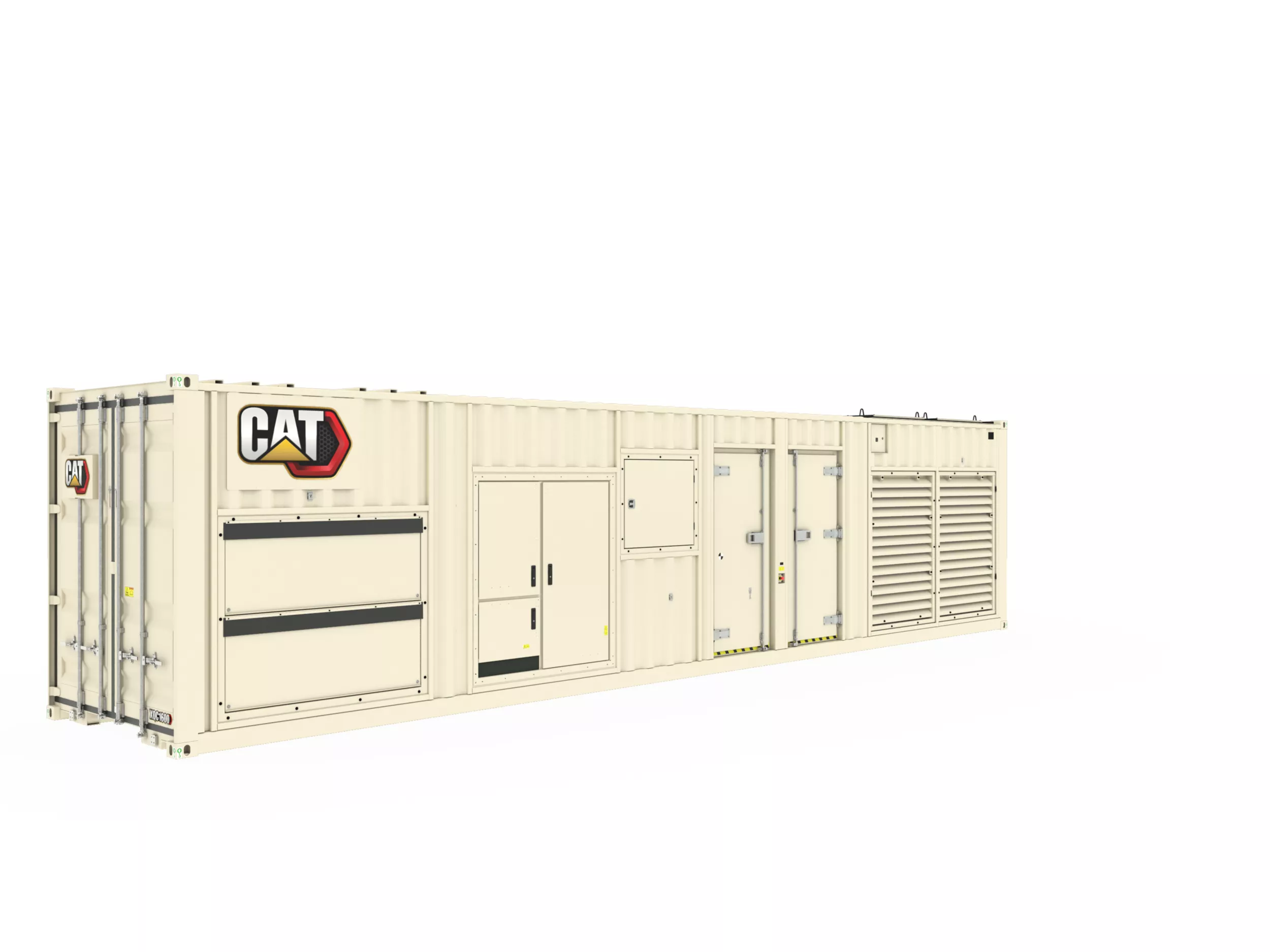

40' ISO high cube container, 9-high stack CSC certified
Service and Personnel doors
Remote monitoring for fleet management and asset tracking.
110% spill containment of onboard engine fluids
Positive crankcase fumes ventilation
Generator set manufactured in ISO 9001:2000 compliant facility
Package factory designed and production tested
Cat® dealers provide extensive post sale support including maintenance and repair agreements.
Supported 100% by the Cat dealer with warranty on parts and labor.
Extended Service Coverage (ESC) options available for coverage beyond the Standard Warranty period
