Mobile Generator Sets XQP150

Request A Price Find Dealer

Key Specs

Rating Prime
150 kVA
150 kVA
Frequency
50/60 Hz
50/60 Hz
Voltage
127 - 480 V
127 - 480 V

Overview

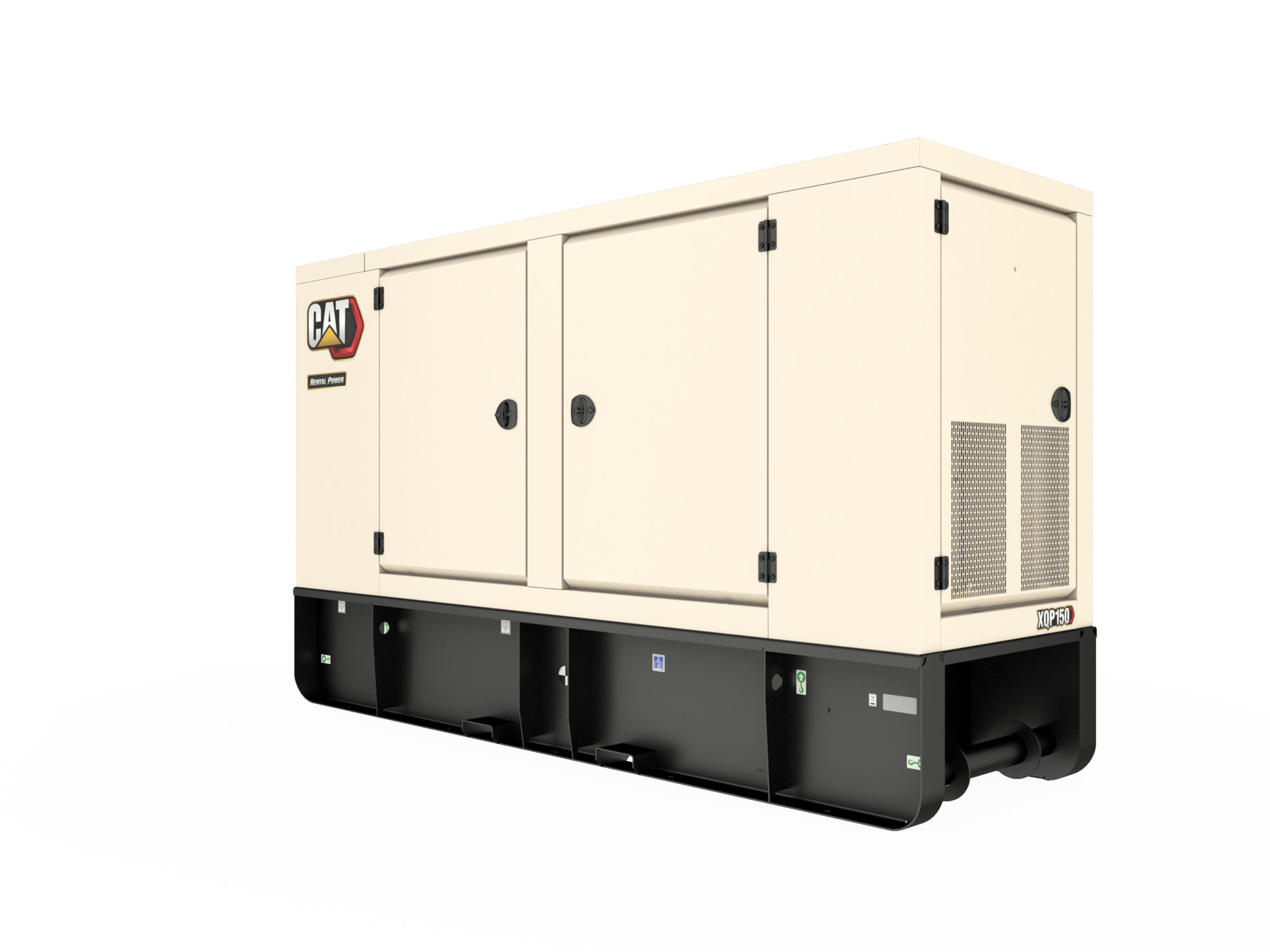

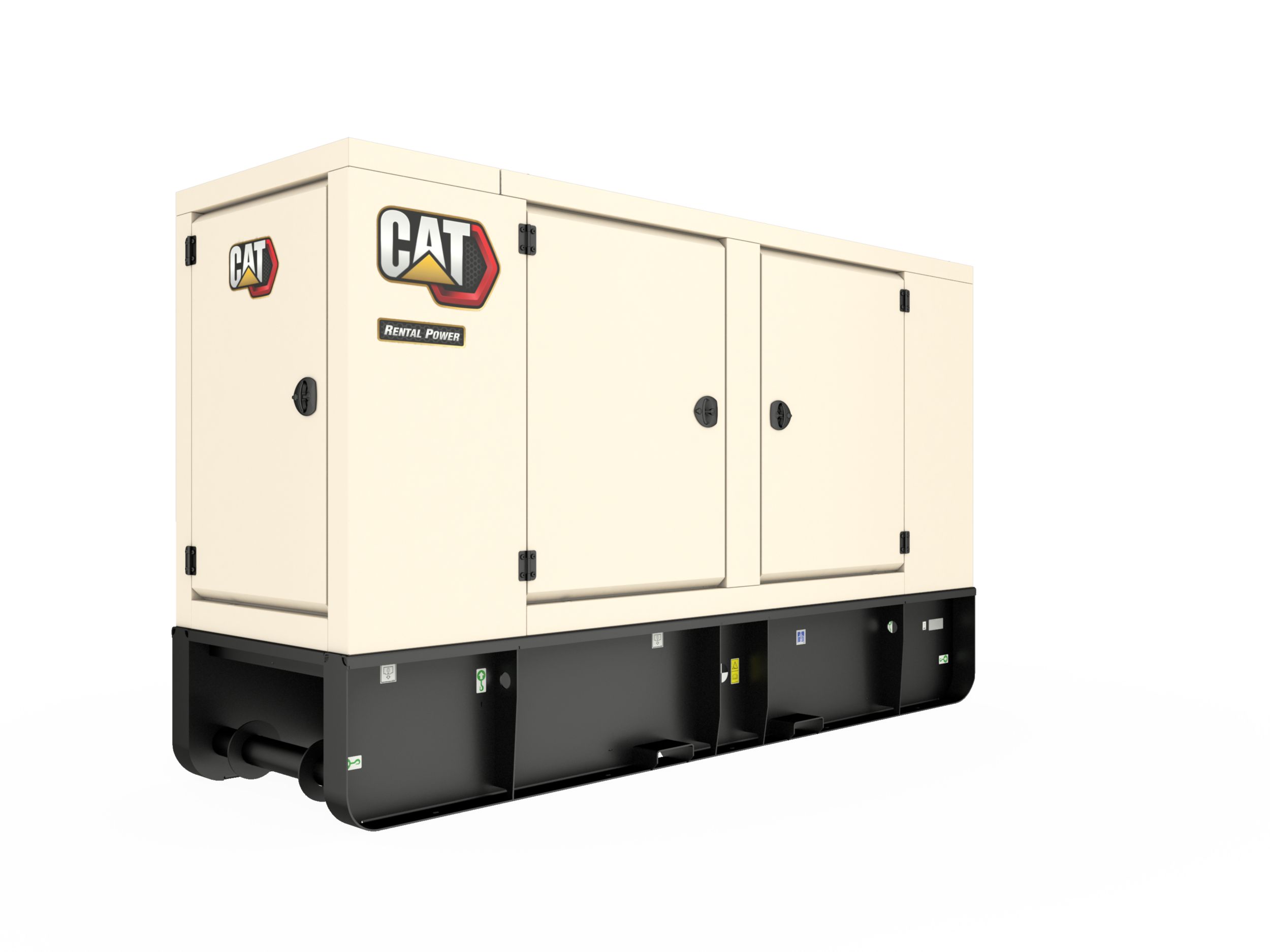

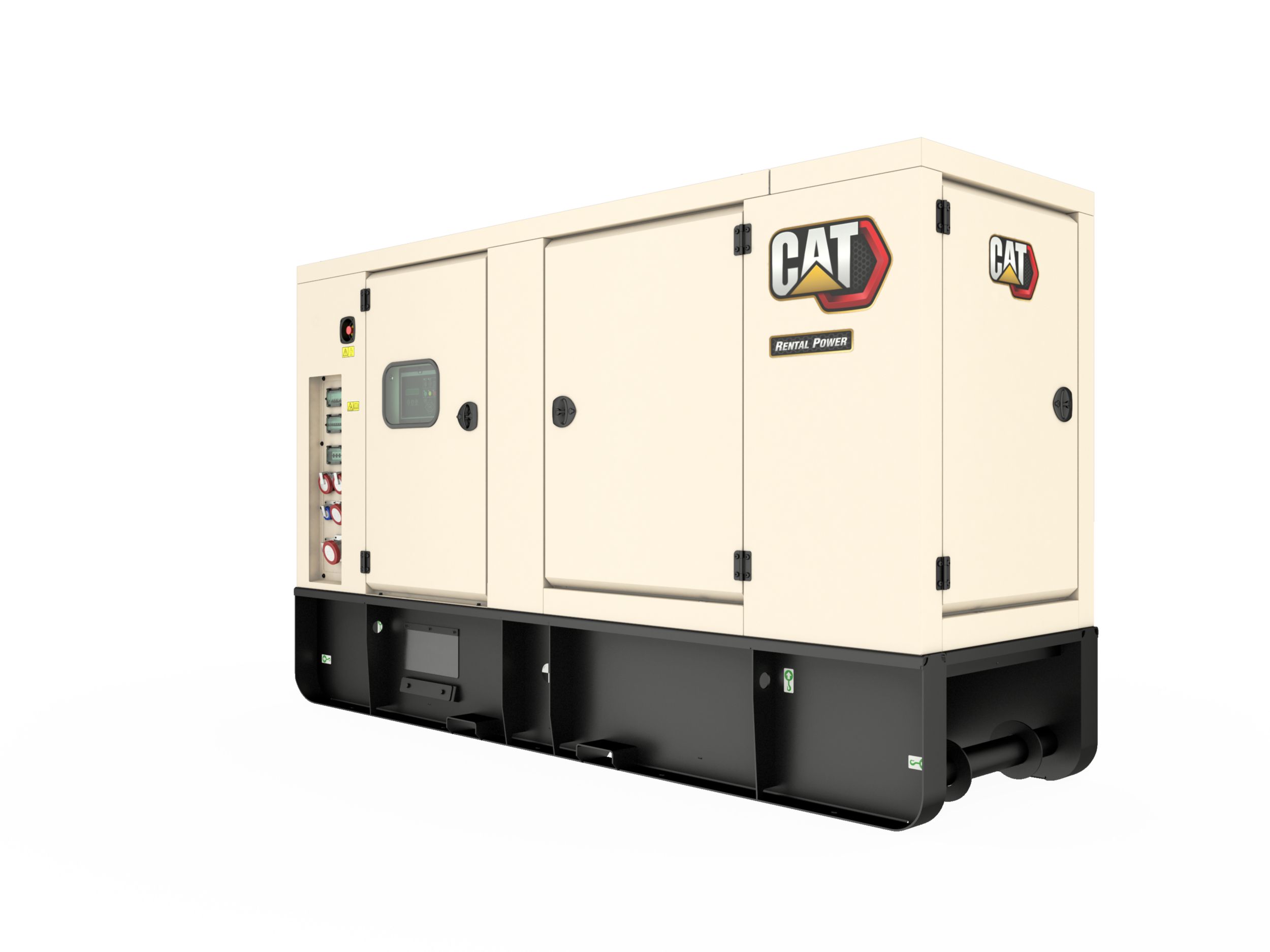

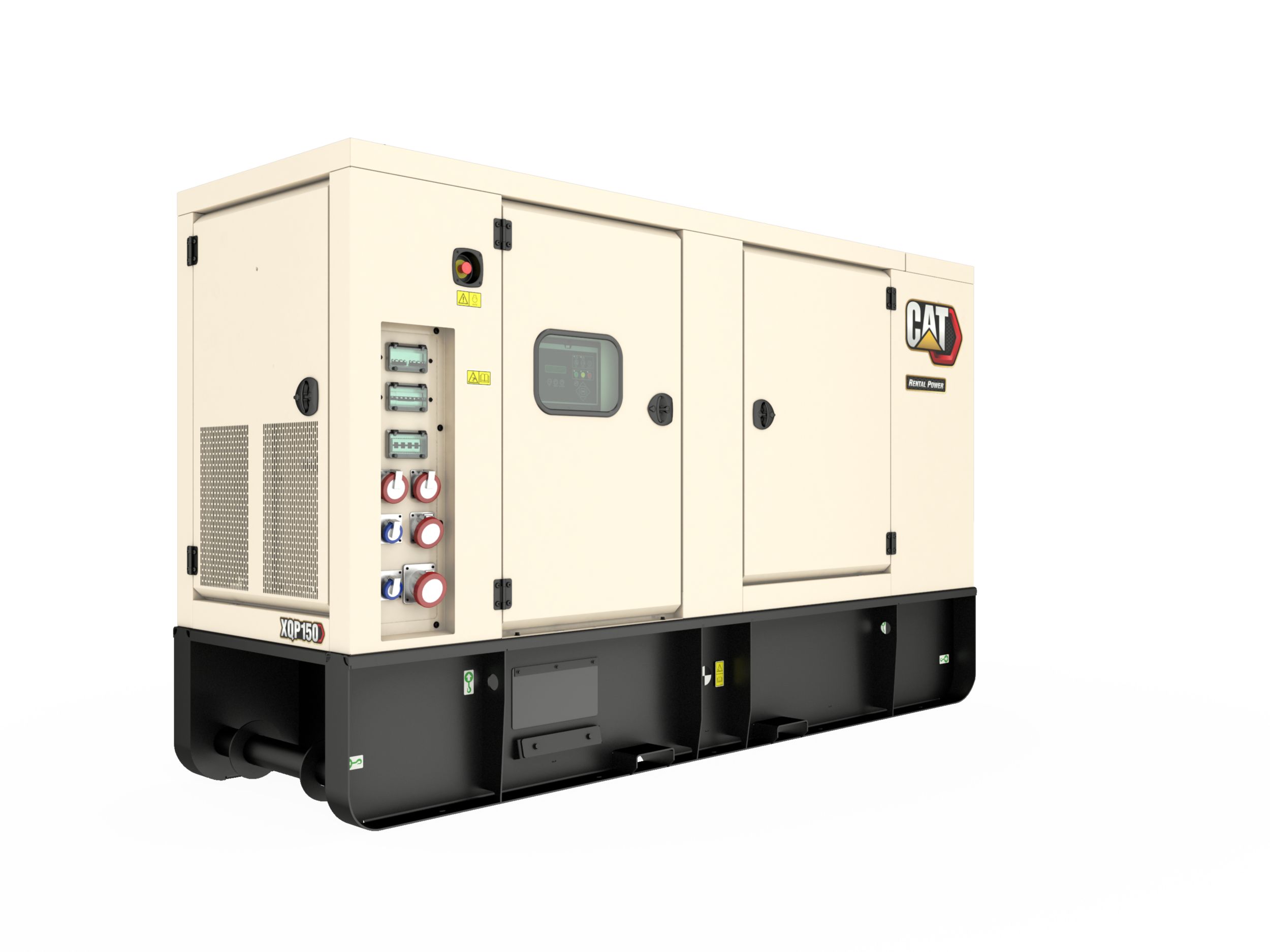

150 kVA Mobile Diesel Generator Set

This XQP150 generator set is EU Stage IIIA emission standard capable or fuel consumption optimized for customers in non-regulated territories. Each model delivers increased flexibility by easily switching between 50 and 60 Hz, which allows one machine to satisfy varying load requirements across diverse regions and applications including mining, manufacturing, oil and gas and construction.

Benefits

Standard 500 Hour oil change intervals

Maximizes run time before routine service is required

Flexible 3-way fuel valve

Extended run time provided by changeover from base tank to external bulk tank

Selectable 50/60Hz Operation

Easy frequency switch via terminal link eliminate geographical limitations allowing generator set to be used wherever it is needed

Product Specifications for XQP150

Rating Prime 150 kVA 150 kVA
Frequency 50/60 Hz 50/60 Hz
Voltage 127 - 480 V 127 - 480 V
Engine C7.1 Diesel Engine or C7.1 ACERT Diesel Engine C7.1 Diesel Engine or C7.1 ACERT Diesel Engine
Fuel Diesel Diesel
Width 44.1 in 1120 mm
Height 87.6 in 2226 mm
Length 138.6 in 3520 mm
Weight - With Lube Oil and Coolant 5615 lb 2547 kg
100% Load 50Hz 9.9 gal/hr 37.5 l/hr
100% Load 60Hz 11.2 gal/hr 42.3 l/hr
75% Load 50Hz 7.8 gal/hr 29.6 l/hr
75% Load 60Hz 9.2 gal/hr 34.7 l/hr
50% Load 50Hz 5.4 gal/hr 20.3 l/hr
50% Load 60Hz 6.3 gal/hr 23.8 l/hr
100% Load 50Hz 8.8 gal/hr 33.3 l/hr
100% Load 60Hz 10.5 gal/hr 38.2 l/hr
75% Load 50Hz 6.5 gal/hr 24.7 l/hr
75% Load 60Hz 7.7 gal/hr 29.1 l/hr
50% Load 50Hz 4.3 gal/hr 16.4 l/hr
50% Load 60Hz 5 gal/hr 19.1 l/hr
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 73.1 dB(A) 73.1 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) 76.4 dB(A) 76.4 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 74.7 dB(A) 74.7 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) 78.3 dB(A) 78.3 dB(A)

XQP150 Standard Equipment

CAT C7.1 Diesel Engine

  • Turbo charged.

Generator

  • LC3114J frame.

Air Filter

  • Cyclonic/paper with dust cup and service indicator.

Cat Connect remote monitoring

  • Provides package monitoring and management.

Cooling System

  • Package mounted radiator with vertical air discharge. Filled from factory.

Charging / Starting System

  • 12V heavy duty starting motor and charging alternator c/w battery isolator.

Fuel System

  • 24hr dual wall fuel tank with 3 way directional valve for external supply.

Control Panel

  • Digital EMCP4.2B set mounted controller.

Distribution

  • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off.

Structure

  • Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. Base frame is wider than enclosure to protect generator set during transportation.

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance.

Exhaust

  • Integrated spark arresting silencer.

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory.

General

  • Factory tested and inspected.
