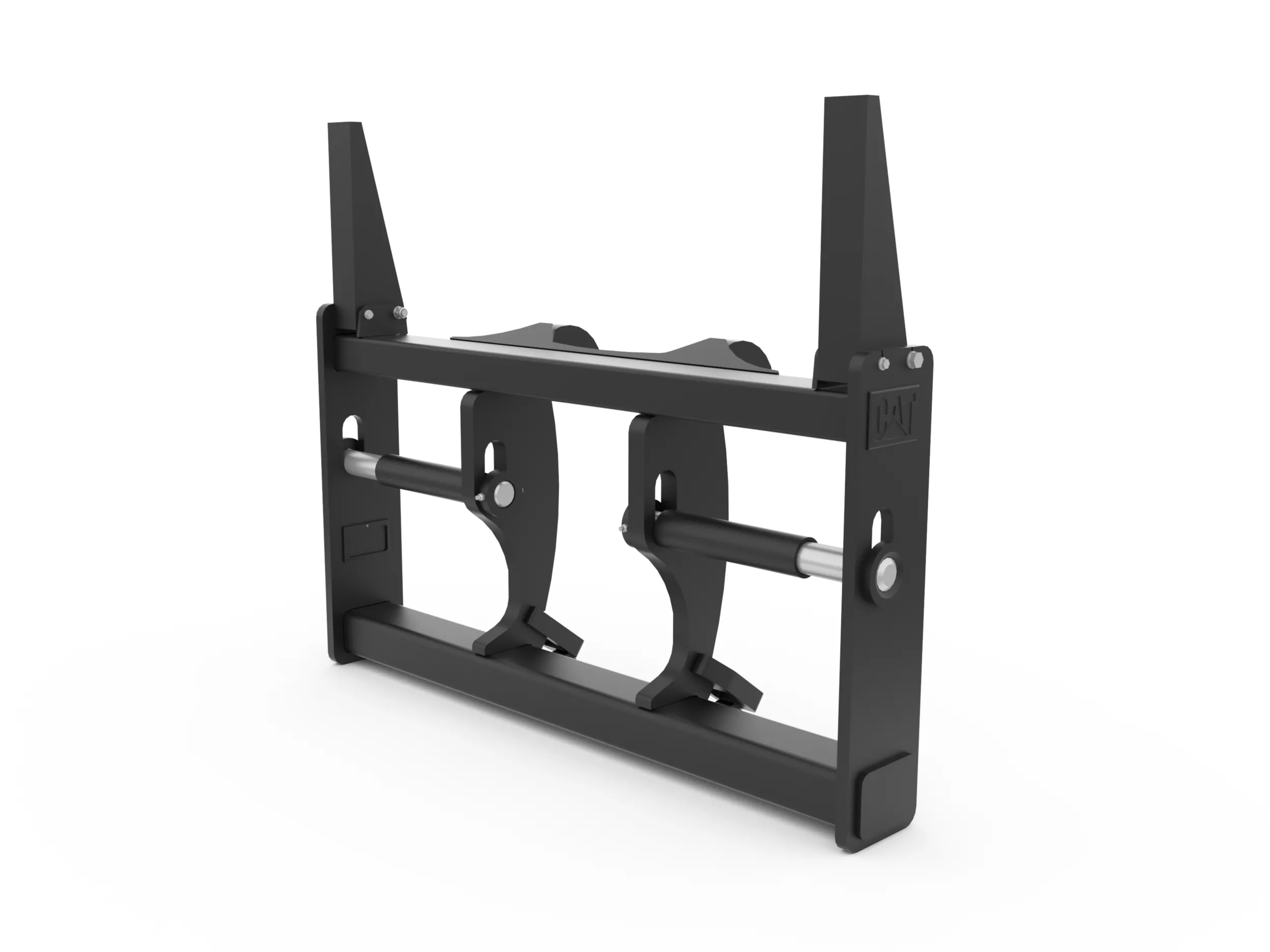

Log & Lumber Fork Carriages 1829 mm (72 in), Fusion™ Coupler

Request A Price Click for Price

Key Specs

Interface Type: Fusion™ Coupler; Fusion™ Coupler

Tine Configuration: Non-Swinging, Floating; Non-Swinging, Floating

Height: 59.8 in; 1520 mm

1829 mm (72 in), Fusion™ Coupler
Change model

Overview

With several sizes and options available, log and lumber fork carriages provide the tools you need for your particular job.

Features At A Glance

Cat® Log & Lumber Fork Carriages are used to load, unload, move deck, sort and feed the mill. Their flat fork tines and raised guards are designed specifically for use in handling both unfinished logs and stacked lumber.

Risers and Log guards prevent logs from rolling back on to linkages. Maximizes the ability to fill the fork at every pass by supporting large loads.

Wider carriages increase stability when handling longer poles/loads.

Wider tine widths provide a larger surface area for stability when transporting larger materials.

Easily interchange floating and non floating tine configurations by adding/removing a single bolt.

Product Specifications for 1829 mm (72 in), Fusion™ Coupler

Interface Type	Fusion™ Coupler Fusion™ Coupler
Tine Configuration	Non-Swinging, Floating Non-Swinging, Floating
Height	59.8 in 1520 mm
Weight	1166.2 lb 529 kg
Width	73.6 in 1869 mm
Length	19.1 in 485 mm
Tine Spacing	942-1769 mm (37-70 in) 942-1769 mm (37-70 in)

Product Specifications for 1829 mm (72 in), Fusion™ Coupler

Download Print

Interface Type	Fusion™ Coupler Fusion™ Coupler
Tine Configuration	Non-Swinging, Floating Non-Swinging, Floating
Height	59.8 in 1520 mm
Weight	1166.2 lb 529 kg
Width	73.6 in 1869 mm
Length	19.1 in 485 mm
Tine Spacing	942-1769 mm (37-70 in) 942-1769 mm (37-70 in)
