XQP550 (550 kVA) EU Stage V Rental

Mobile Generator Sets XQP550

Request A Price Find Dealer

Key Specs

Rating Prime
550 kVA
550 kVA
50/60 Hz
50/60 Hz
127 - 480 V
127 - 480 V

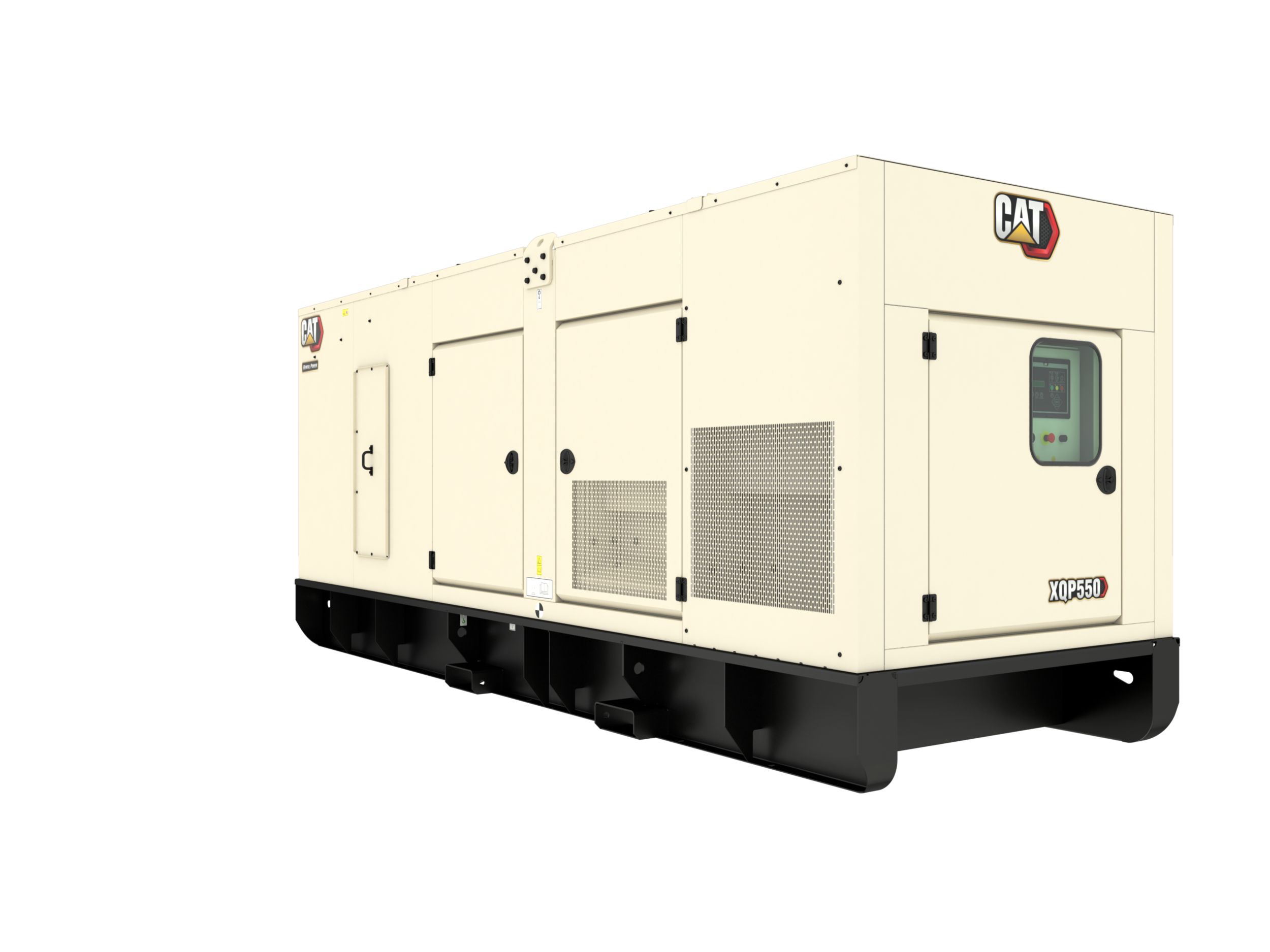

550 kVA Mobile Diesel Generator Set

The XQP550 generator set is EU Stage V emission standard capable. A unique feature is the introduction of clutch fan drive technology where the fan no longer needs to run continually at full speed and power. This saves additional fuel, while lowering noise output; an ideal feature when operating at lower loads, in cooler temperatures and, most importantly, in evenings when noise levels are most noticeable.


Selectable 50/60Hz Operation

Easy frequency switch via terminal link eliminate geographical limitations allowing generator set to be used wherever it is needed

Flexible 3-way fuel valve

Extended run time provided by changeover from base tank to external bulk tank

Standard 500 Hour oil change intervals

Maximizes run time before routine service is required

Product Specifications for XQP550

Rating Prime 550 kVA 550 kVA
Frequency 50/60 Hz 50/60 Hz
Voltage 127 - 480 V 127 - 480 V
Fuel/Emissions Strategy EU Stage V EU Stage V
Engine Cat® C18 Cat® C18
Fuel Diesel Diesel
Width 80.3 in 2040 mm
Height 90.5 in 2434 mm
Length 213.3 in 5420 mm
Weight - With Lube Oil and Coolant 14860 lb 6740 kg
100% Load 60 Hz 129.7 gal/hr 34.3 l/hr
100% Load 50 Hz 18.7 gal/hr 70.6 l/hr
75% Load 60 Hz 0 gal/hr 0 l/hr
75% Load 50 Hz 23.1 gal/hr 87.4 l/hr
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 79.19 79.19

XQP550 Standard Equipment

Cat C18 Diesel Engine

  • Turbocharged, ATAAC


  • LC6114K Frame

Air Filter

  • Cyclonic/paper with dust cup and service indicator

Cat Connect remote monitoring

  • Provides package monitoring and management

Cooling System

  • Package mounted radiator with vertical air discharge. Filled from factory

Charging / Starting System

  • 24V heavy duty starting motor and charging alternator c/w battery isolator

Fuel System

  • 24 hour dual wall fuel tank with 3 way directional valve for external supply

Control Panel

  • XQCP set mounted controller.


  • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off


  • Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.


  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance


  • Integrated spark arresting silencer

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory


  • Factory tested and inspected
