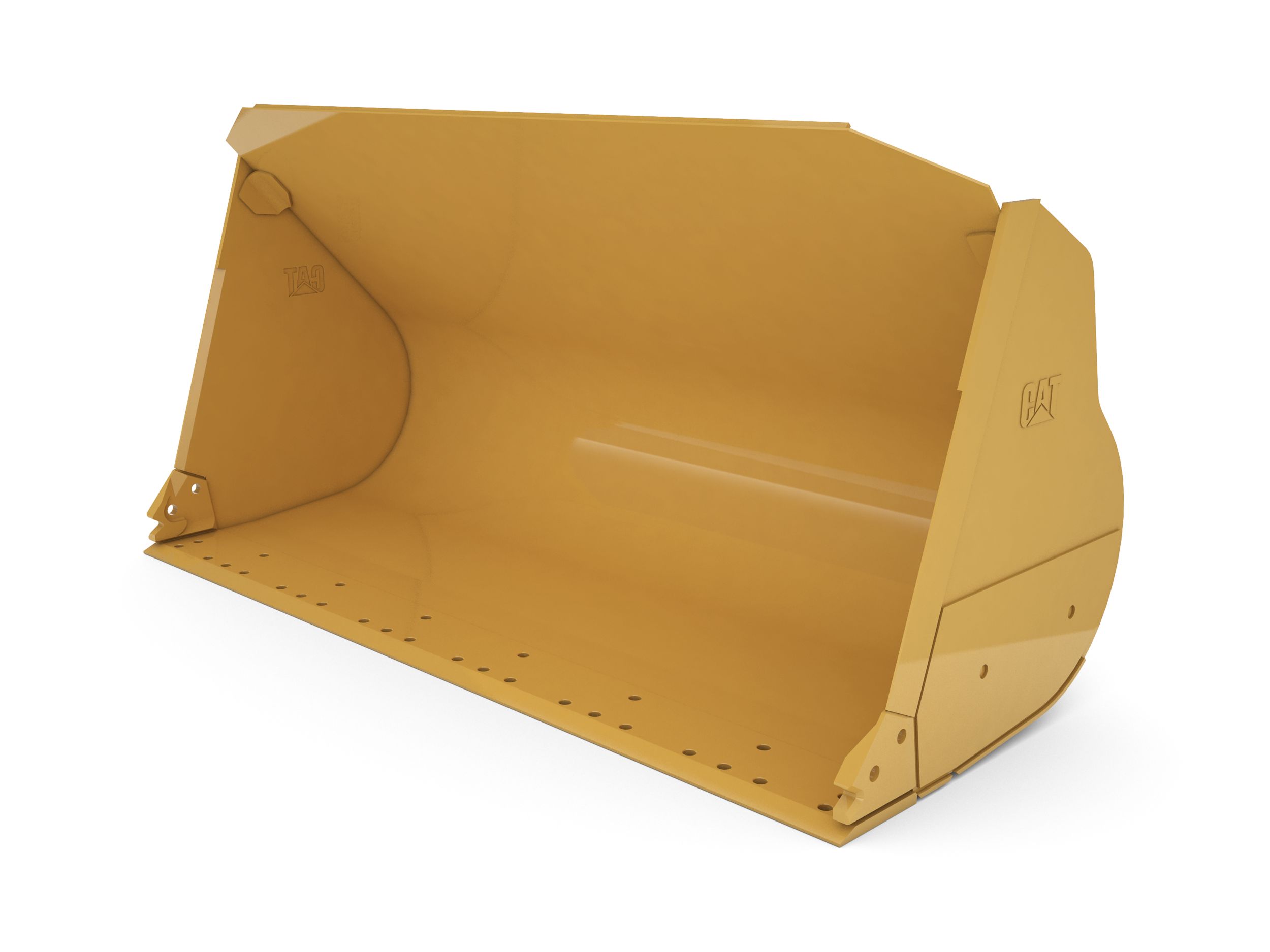

General Purpose Buckets - Performance Series 2.1 m3 (2.7 yd3), Pin On

Request A Price Click for Price

Key Specs

Width: 96.9 in; 2462 mm

Height: 49.1 in; 1248 mm

Weight: 1640.2 lb; 744 kg

2.1 m3 (2.7 yd3), Pin On
Change model

Overview

General Purpose Performance Series buckets provides higher fill factors and material retention in load and carry applications, as well as grading, leveling and dumping in a wide variety of applications and materials.

Features At A Glance

General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating, and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. They are designed for standard breakout forces and abrasion conditions. Ideal for back dragging and grading applications. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.

Integrated Spill Guard provides protection of machine linkage and improved load retention by preventing material spillage.

Rounded sidebars help funnel material into the bucket and retain it.

Performance Series profile for easy loading and maximum carry load.

Open throat design improves heap size and fill factor.

Product Specifications for 2.1 m3 (2.7 yd3), Pin On

Width	96.9 in 2462 mm
Height	49.1 in 1248 mm
Weight	1640.2 lb 744 kg
Length	47.4 in 1204 mm
Capacity	2.7 yd³ 2.1 m³
Base Edge Thickness	1 in 25 mm
Interface Type	Pin On Pin On

Product Specifications for 2.1 m3 (2.7 yd3), Pin On

Download Print

Width	96.9 in 2462 mm
Height	49.1 in 1248 mm
Weight	1640.2 lb 744 kg
Length	47.4 in 1204 mm
Capacity	2.7 yd³ 2.1 m³
Base Edge Thickness	1 in 25 mm
Interface Type	Pin On Pin On
