Input Control Voltage
|
65 to 145 Vac 50/60 hZ
65 to 145 Vac 50/60 hZ
|
|
Voltage Measurements of Utility
|
Source 1 VAB Source 2 VAB
Source 1 VAC Source 2 VBC
Source 1 VCA Source 2 VCA
Source 1 VAB Source 2 VAB
Source 1 VAC Source 2 VBC
Source 1 VCA Source 2 VCA
|
|
Voltage Measurement Range
|
0 to 790 VAC rms (50/60 Hz)
0 to 790 VAC rms (50/60 Hz)
|
|
Voltage Measurement Accuracy
|
+/-2% of nominal input voltage
+/-2% of nominal input voltage
|
|
Frequency Measurements Of
|
Source 1 and Source 2
Source 1 and Source 2
|
|
Frequency Measurement Range
|
40 Hz to 70 Hz
40 Hz to 70 Hz
|
|
Frequency Measurement Accuracy
|
+/- 0.1 Hz
+/- 0.1 Hz
|
|
Undervoltage Dropout
|
50% to 90% of nominal voltage
50% to 90% of nominal voltage
|
|
Undervoltage Pickup
|
(Dropout +2%) to 99% of the nominal system voltage
(Dropout +2%) to 99% of the nominal system voltage
|
|
Underfrequency Dropout Range
|
90 to 97% of the nominal system frequency
90 to 97% of the nominal system frequency
|
|
Underfrequency Pickup Range
|
(Dropout +1 Hz) to 99% of the nominal system frequency
(Dropout +1 Hz) to 99% of the nominal system frequency
|
|
Overfrequency Dropout Range
|
103 to 110% of the nominal system frequency
103 to 110% of the nominal system frequency
|
|
Overfrequency Pickup Range
|
101% to (dropout - 1 Hz) of the nominal system frequency
101% to (dropout - 1 Hz) of the nominal system frequency
|
|
Operating Temperature Range
|
-20 to 70 degree C (-4 to +158 degree F)
-20 to 70 degree C (-4 to +158 degree F)
|
|
Storage Temperature Range
|
-30 to 85 degree C (-22 to +185 degree F)
-30 to 85 degree C (-22 to +185 degree F)
|
|
Operating Humidity
|
0 to 95% relative humidity (noncondensing)
0 to 95% relative humidity (noncondensing)
|
|
Operating Environment
|
Resistant to ammonia, methane, nitrogen,hydrogen and hydrocarbons
Resistant to ammonia, methane, nitrogen,hydrogen and hydrocarbons
|
|
Generator Start Relay
|
5A, 1/6 hp @ 250 Vac Vac 5A @ 30 Vdc with a 150W maximum load
5A, 1/6 hp @ 250 Vac Vac 5A @ 30 Vdc with a 150W maximum load
|
|
K1, K2 Relays
|
10A, 1-3 hp @ 250 Vac
10A@30 Vdc
10A, 1-3 hp @ 250 Vac
10A@30 Vdc
|
|
Applicable Testing
|
UL-recognized component
Meets intent of UL 991 & UL 1008
Meets IEC 1000-4-2, 1000-4-3, 1000-4-4
UL-recognized component
Meets intent of UL 991 & UL 1008
Meets IEC 1000-4-2, 1000-4-3, 1000-4-4
|
|
Applicable Testing Continued
|
1000-4-5, 1000-4-6, 1000-4-11
CISPR 11, Class A
FCC Part 15, Class A
CSS 22.2-178
1000-4-5, 1000-4-6, 1000-4-11
CISPR 11, Class A
FCC Part 15, Class A
CSS 22.2-178
|
|
Enclosure Compatibility
|
NEMA 1, NEMA 3R and NEMA 12

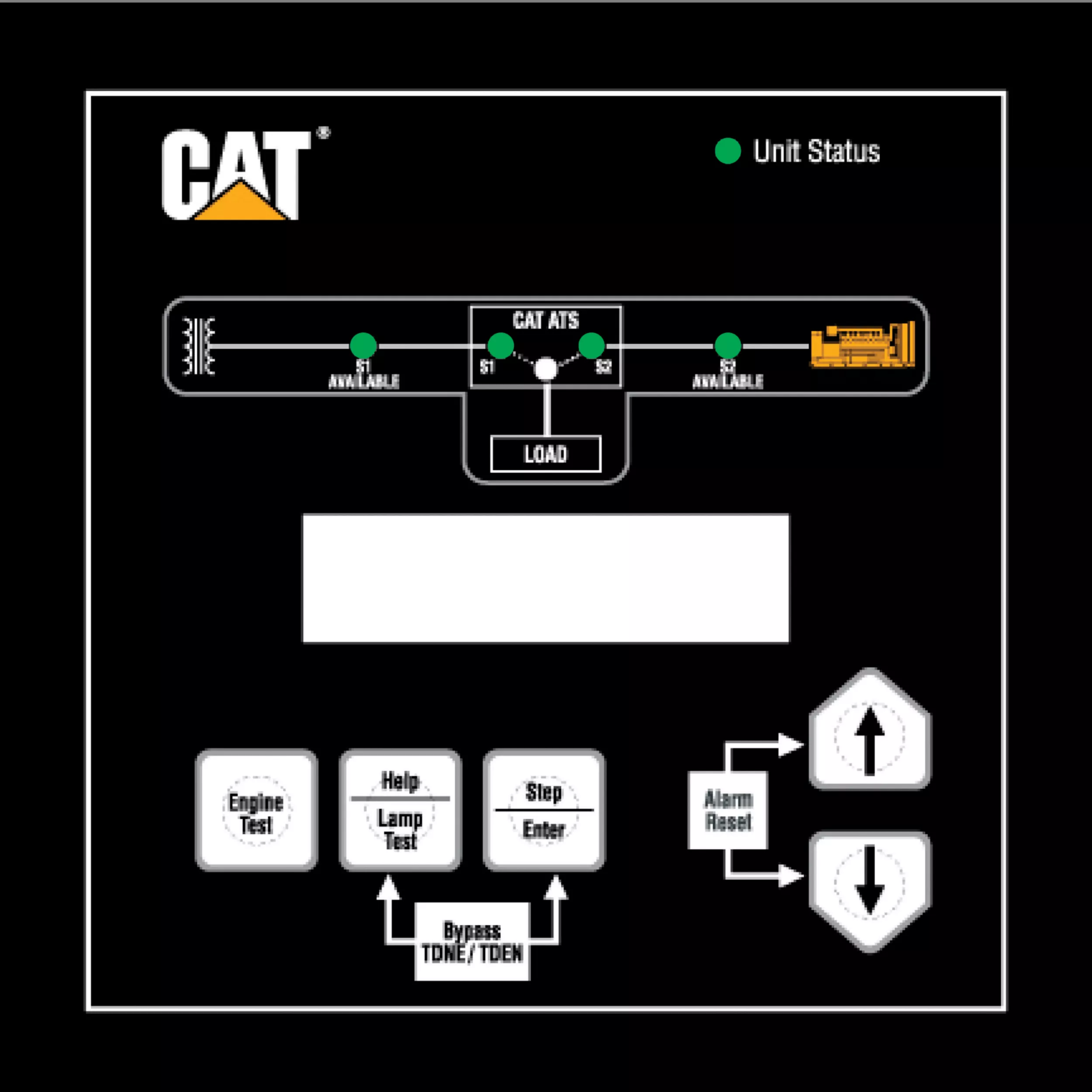

UV-resistant ATC-300+ faceplate
NEMA 1, NEMA 3R and NEMA 12
UV-resistant ATC-300+ faceplate
|
