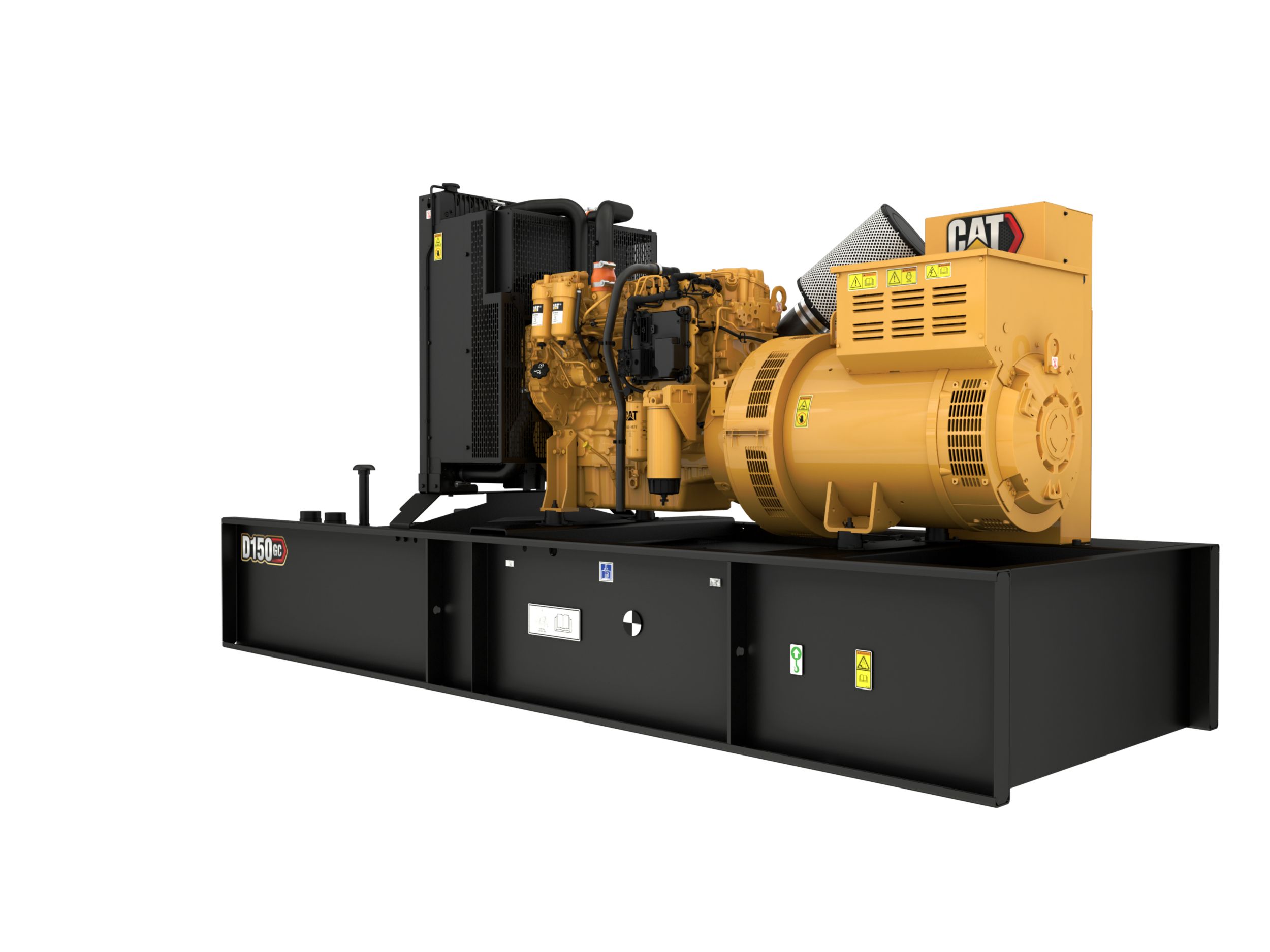

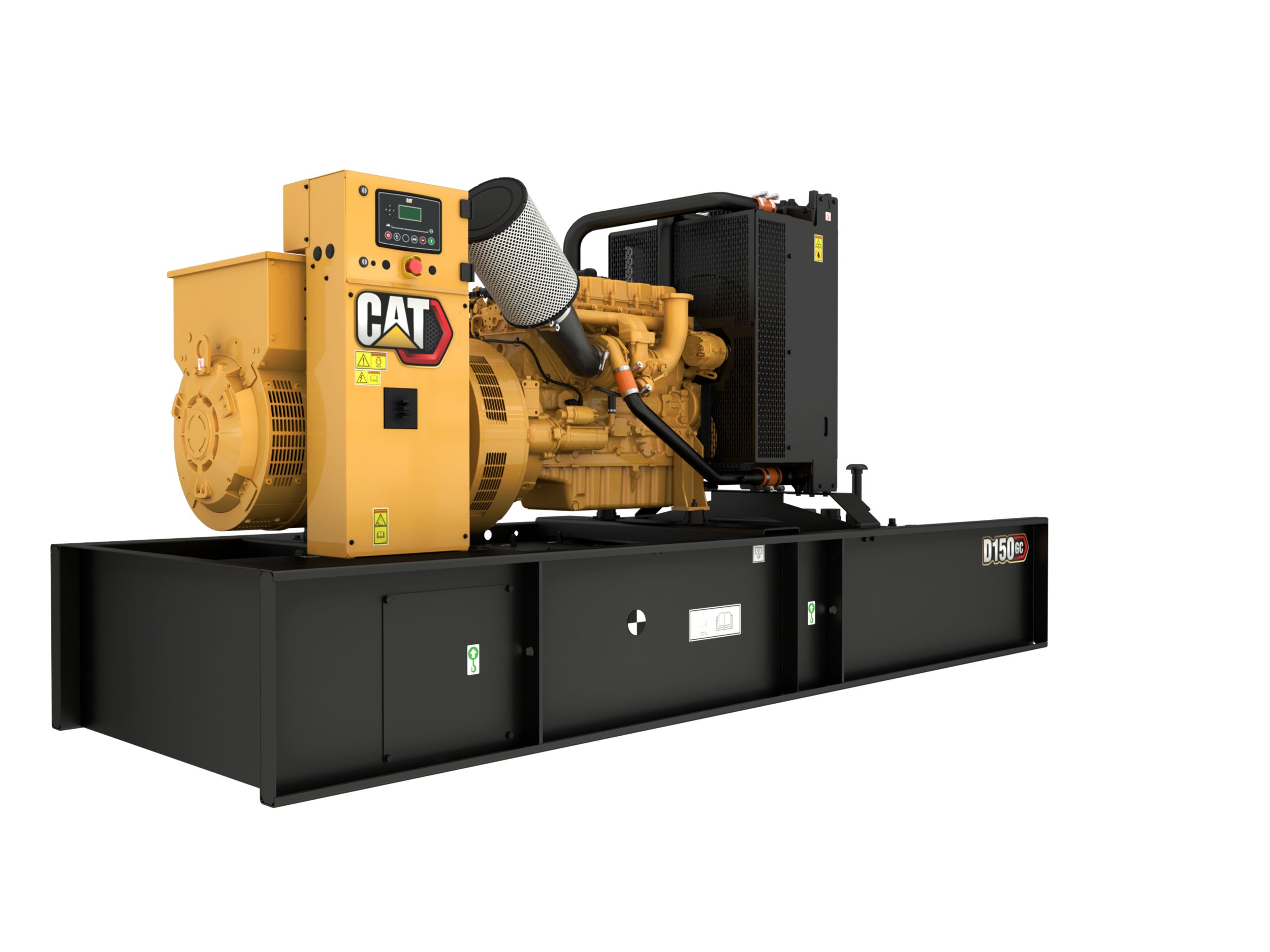

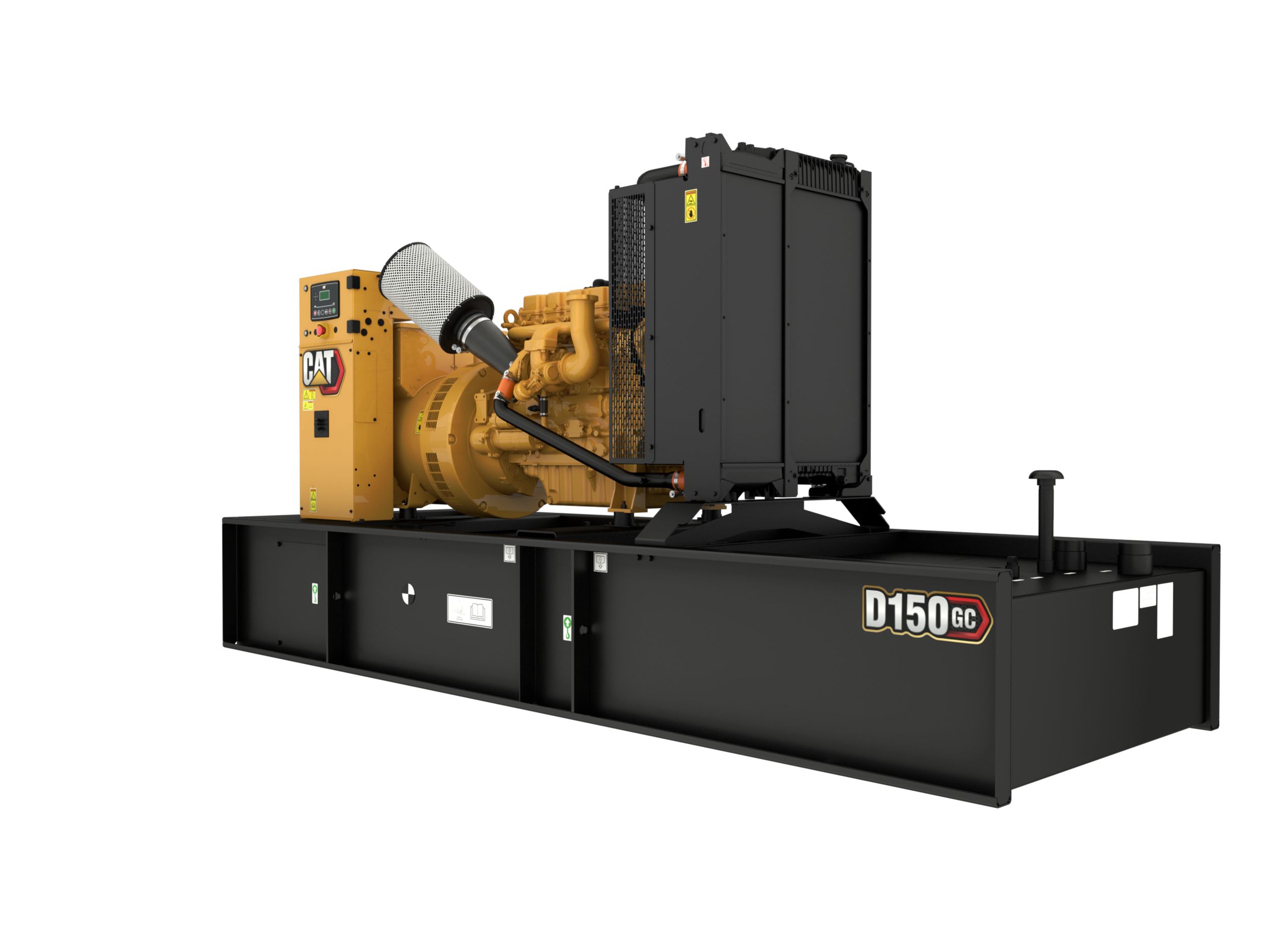

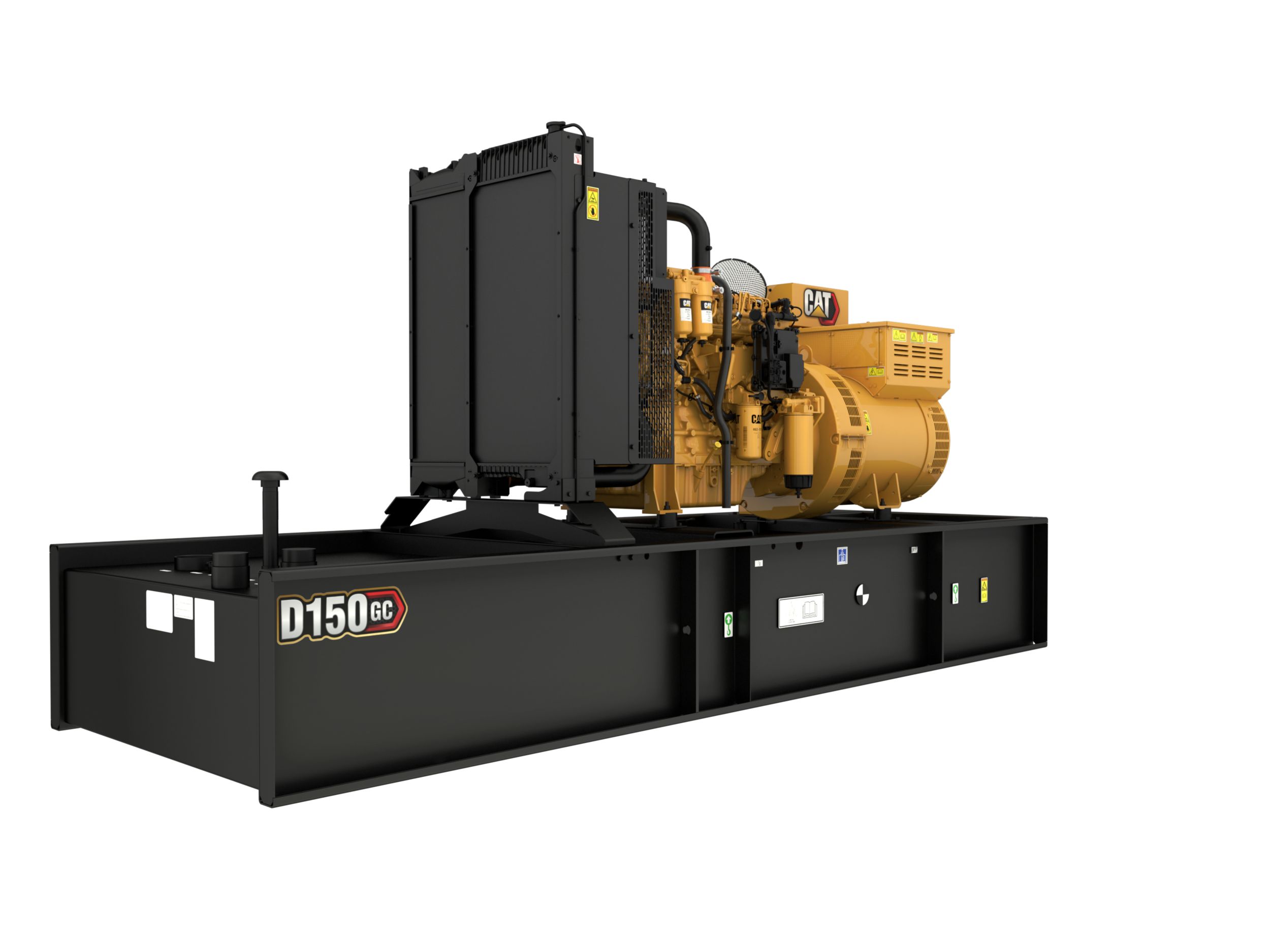

Diesel Generator Sets D150 GC 150 ekW Diesel Generator Set

Features At A Glance

Cat Generator Set Package
Cat Diesel Engine
M-Frame Alternator
GCCP 1.2 Control Panel
Cooling System
Certifications
One Safe Source
World Wide Product Support

Product Specifications for D150 GC

Generator Set Specifications

Engine Specifications

Generator Set Dimensions

D150 GC Standard Equipment

Control Panels

  • GCCP 1.2 control panel
  • GCCP 1.2

Air Inlet System

  • Air Cleaner; light duty with disposable element
  • Air Cleaner; light duty with disposable element

Cooling System

  • Radiator and cooling fan with guards
  • Coolant drain line with valves
  • Radiator and cooling fan with guards
  • Caterpillar extended life coolant
  • Fan drive, battery charging alternator drive

Generator and Generator Attachments

  • 12 leads
  • Circuit breaker, IEC, 3 pole, mounted in tower panel
  • Voltage regulator (single phase sensing)
  • 12 leads
  • IP23 protection
  • Segregated low voltage (AC/DC) wiring panel
  • Tower panel, IP22, bottom cable entry
  • IP23 protection
  • Tower panel, IP22, bottom cable entry
  • Circuit breaker, IEC, 3 pole, mounted in tower panel

Exhaust System

  • Stub pipe, gaskets, raincap and SAE exhaust flange for customer use; shipped loose

Fuel System

  • Standard open set fuel tank / base supplied
  • Standard open set fuel tank / base supplied
  • Base, formed steel with single wall integral 8-hour fuel tank
  • Base, formed steel with single wall integral 8-hour fuel tank

Lube System

  • Lubricating oil
  • Oil drain line with valve
  • Oil drain line with valve
  • Lubricating oil

Mounting System

  • Captive linear vibration isolators between base and engine-generator
  • Includes lifting provision and drag points
  • Captive linear vibration isolators between base and engine-generator
  • Termination points for coolant and lube oil drain lines
  • Includes lifting provision and drag points

Starting / Charging System

  • 24V battery with rack and cables

Governing System

  • Mechanical and electrical governing system - model dependent
  • Mechanical and electrical governing system - model dependent

General

  • Engine and alternator pre-paint, Caterpillar Yellow
  • Engine and alternator pre-paint, Caterpillar Yellow

D150 GC Optional Equipment

Alternator System

  • Quatrature droop king
  • Alternator removal
  • R frame auxiliary winding: R2273L4 SE aux alt 07, aux alt 08 and aux alt 10
  • 3 Phase sensing
  • Permanent magnet
  • Anti-condensation heater

Circuit Breakers

  • 4 Pole 250A, 400A and 630A Circuit Breakers
  • Padlockable breaker device

Control Panel Options

  • Speed adjust contacts
  • Overload shutdown via breaker
  • Volt free contacts
  • Panel mounted audible alarm
  • Battery charger
  • Control panel heater
  • Emergency stop with key
  • Earth leakage (2 wire only)
  • Earth fault (2 wire only)
  • Speed adjust contacts
  • Battery charger
  • Earth fault (2 wire only)
  • Earth leakage (2 wire only)
  • Speed adjust potentiometer

Control System

  • Volt free contacts for common alarm
  • Control panel heater
  • Volt free contacts for generator set running
  • Static battery charger

Cooling System

  • Coolant heater
  • Low coolant level shutdown
  • Low coolant temperature
  • Low coolant level shutdown

Enclosures

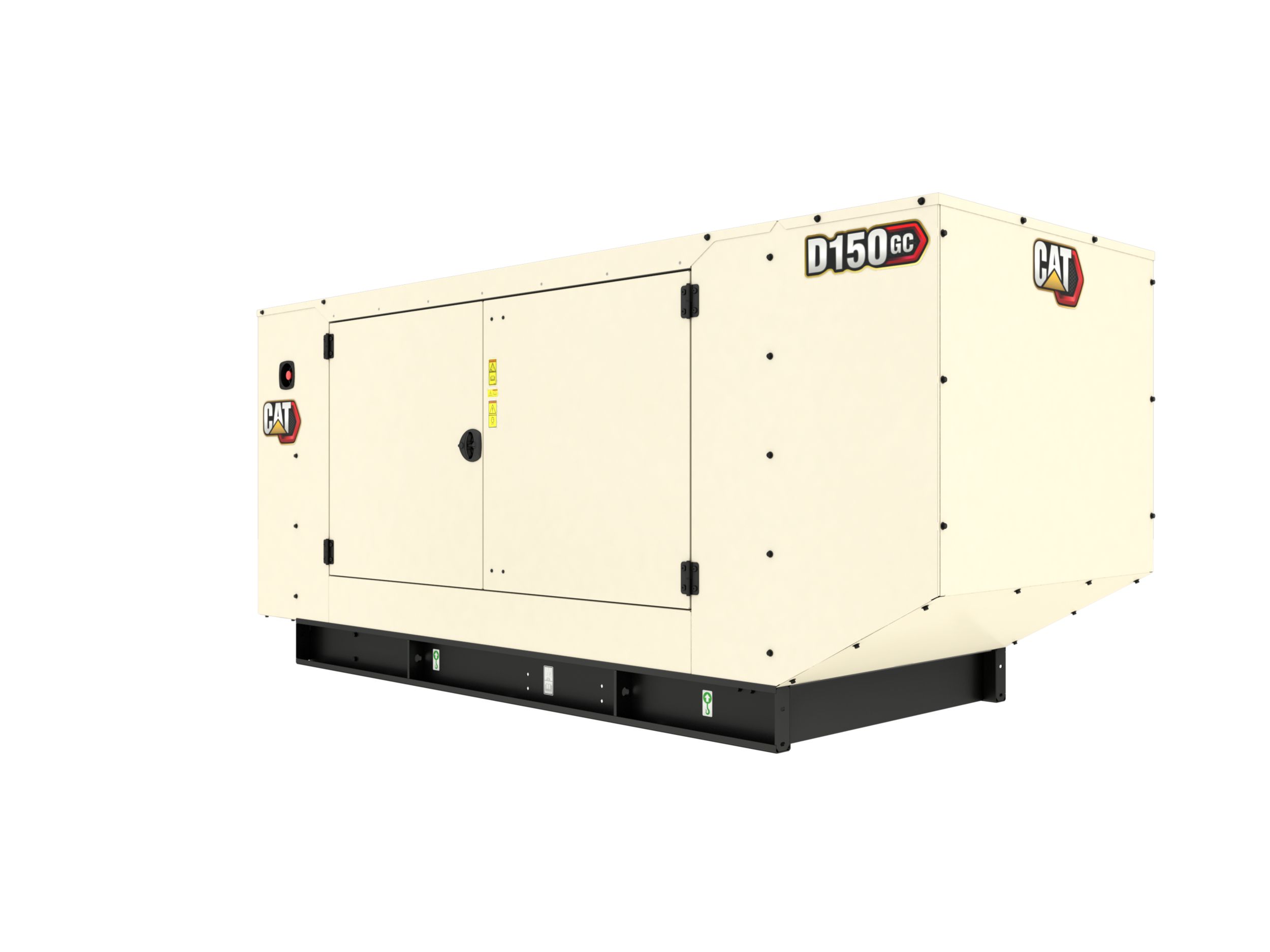

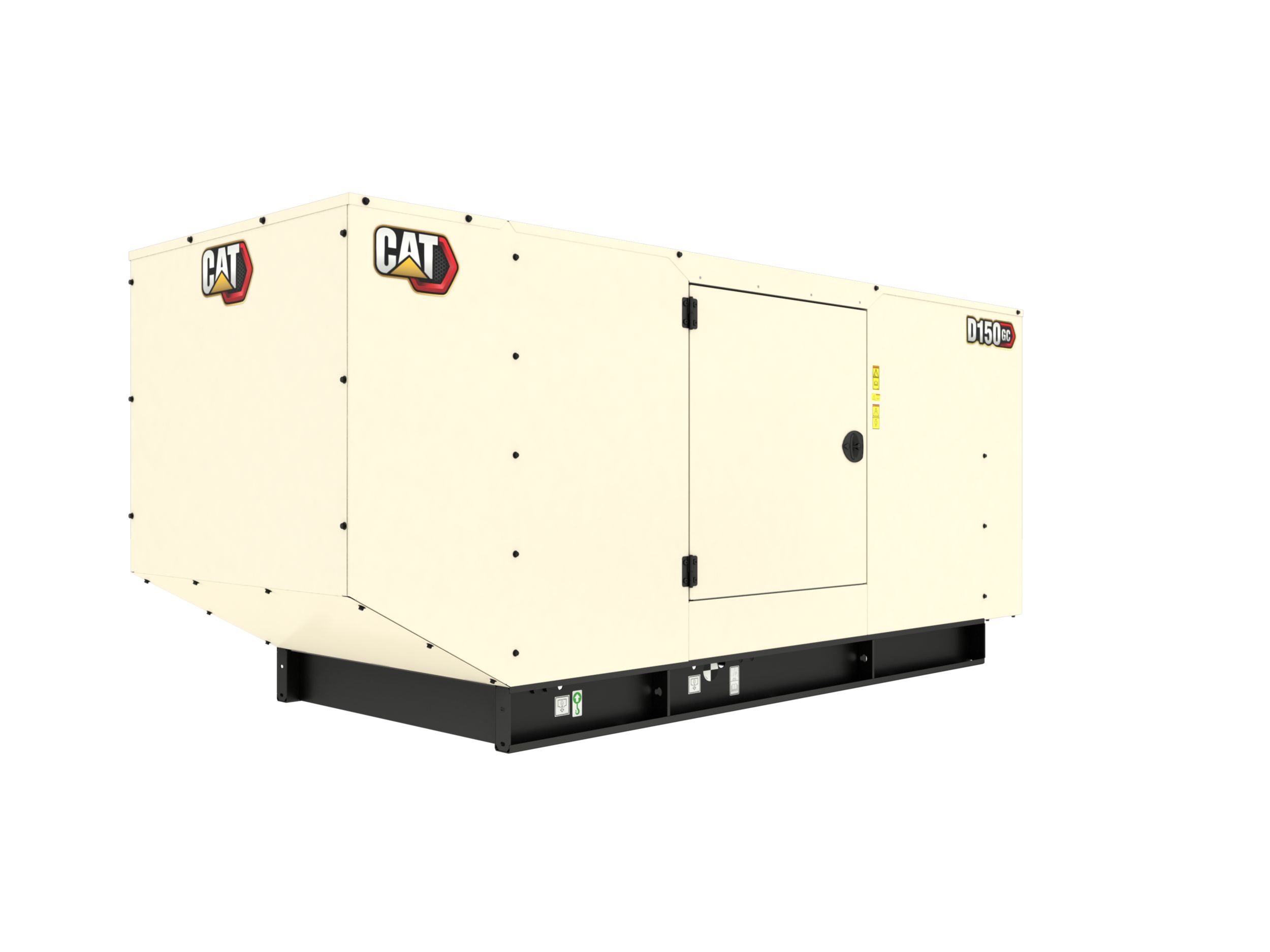

  • Sound attenuated level 2 enclosure

Mounting Options

  • Battery removal
  • Electronic governor
  • Industrial silencer removal
  • Residential silencer
  • Electronic governor
  • Silencer installation kit

Fuel Systems

  • Low fuel level shutdown
  • Skidbase for CALG enclosure sets
  • Compact skidbase for open sets
  • Low fuel level alarm
  • Compact skidbase for open sets
  • Low fuel level shutdown
  • Low fuel level alarm
  • Open set narrow tankbase
  • High fuel level alarm
  • DEFRA bunded fuel tank

Test Reports

  • PGS test report @ 1.0 power factor
  • PGS test report @ 0.8 power factor

General

  • Stone guards / radiator trans flange

Power Termination

  • Circuit breaker, IEC, 4 pole

Accessories / Miscellaneous

  • Packing case - canopied set
  • Packing case - compact set
