Overview
Built to adapt across applications
The Cat® DG200 gas generator set serves stationary emergency and non-emergency applications. It runs on natural gas or propane, providing more choice based on needs and available fuel.

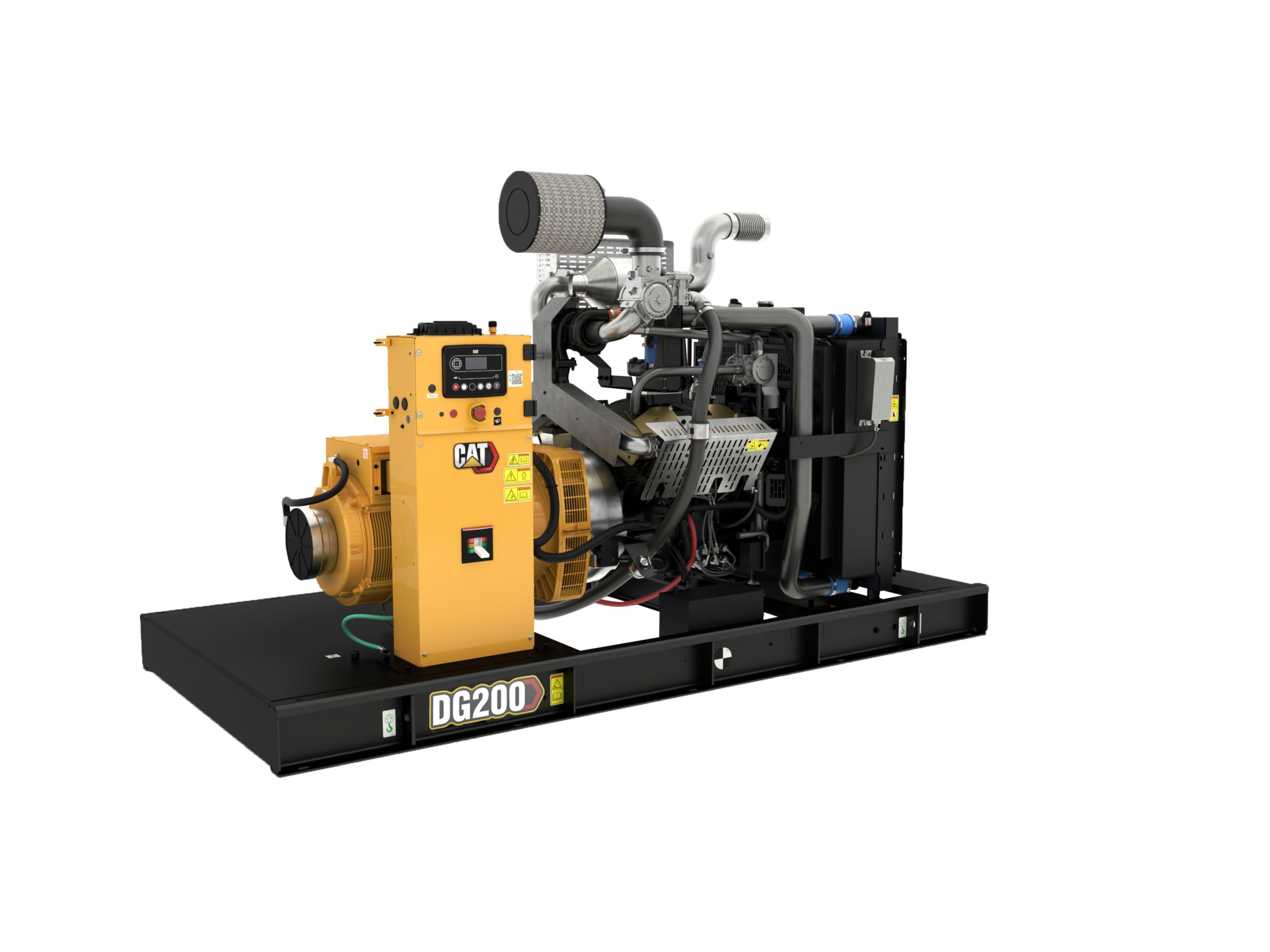

DG200 (3 phase) Gas Generator Sets
Key Specs
- Frequency
- 60 Hz
- 60 Hz
- Natural Gas Rating
- 200 ekW
- 200 ekW
- Emissions/Fuel Strategy
- U.S. EPA Certified for Stationary Emergency and Non-Emergency Application
- U.S. EPA Certified for Stationary Emergency and Non-Emergency Application
Benefits
Maintain reliable power output
Simplify installation and service
Tailor controls to your application
Features At A Glance
Displaying 1-6 of 4
Robust spark-ignited engine
The 10.3L dual-fuel engine operates on natural gas or propane for consistent performance and fuel economy.
Flexible alternator packaging
High-efficiency operation and flexible packaging support easier installation while helping minimize the need for alternator oversizing.
Scalable generator controls
User-friendly navigation and site-specific programming support various installation and operating requirements.
Factory-tested power system
The complete generator set is assembled and tested at a Caterpillar facility to help verify quality before delivery.
Product Specifications for DG200 (3 phase)
Generator Set Specifications
| Frequency | 60 Hz 60 Hz |
| Natural Gas Rating | 200 ekW 200 ekW |
| Emissions/Fuel Strategy | U.S. EPA Certified for Stationary Emergency and Non-Emergency Application U.S. EPA Certified for Stationary Emergency and Non-Emergency Application |
| Voltage | 208-600 208-600 |
| Speed | 1800 rpm 1800 rpm |
| Gas Standby Rating | Standby, Demand Response and Prime Standby, Demand Response and Prime |
Engine Specifications
| Engine Model | V8, 10.3L TCAC V8, 10.3L TCAC |
| Bore | 4.6 in 109.2 mm |
| Stroke | 4.75 in 120.7 mm |
| Displacement | 628.5 in³ 9.1 l |
| Compression Ratio | 9.6:1 9.6:1 |
| Aspiration | TCAC TCAC |
| Fuel System | Electronic Electronic |
Generator Set Dimensions
| Length | 117.5 in 2896 mm |
| Width | 63 in 1397 mm |
| Height | 72 in 1727 mm |
| Dry Weight - Genset | 3924 lb 1464 kg |
DG200 (3 phase) Optional Equipment
Starting/Charging
- Jacket water heater
Fuel System
- Gas Regulator
General
- Single element or dual element air cleaner
- Circuit breaker panel, based on regional and product configuration
