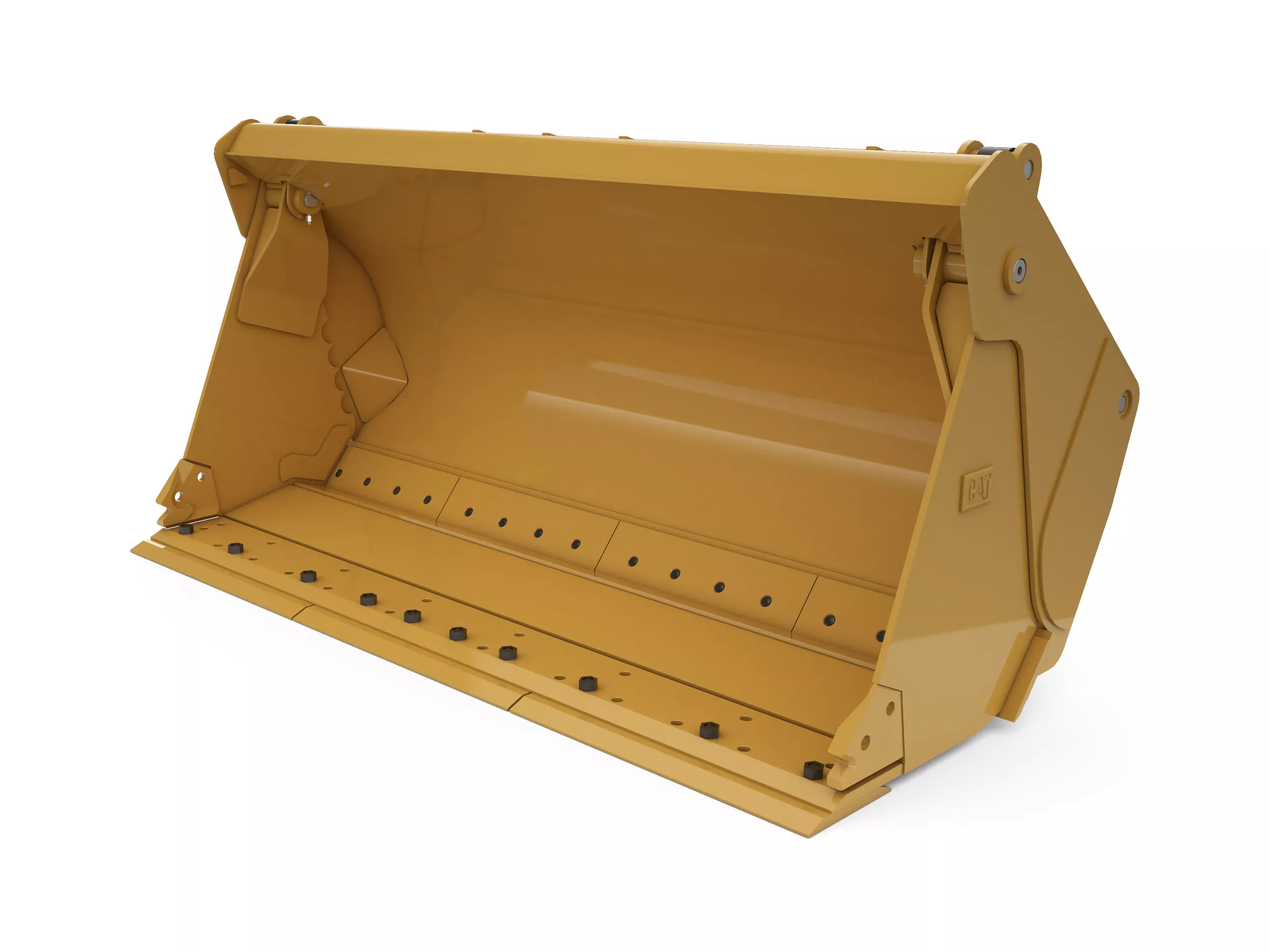

2.1 m3 (2.7 yd3) Pin On, Bolt-On Cutting Edge

< Back


Excellent versatility for re-handling, clamping, dozing, grading, leveling and dumping.


Capacity 2.7 yd³ 2.1 m³ Less

Width 100.0 in 2550.0 mm Less
Height 50.0 in 1274.0 mm Less
Weight 1251.0 lb 1439.0 kg Less
Length 49.0 in 1213.0 mm Less
Cutting Edge Thickness 1.0 in 25.0 mm Less
Clam Angle 71 degrees 71 degrees Less

Interface Type

Interface Type Pin on Coupler Pin on Coupler Less

Base Edge Thickness

Base Edge Thickness 25.0 mm 1.0 in Less

Hydraulic Requirements

Jaw Opening 1134.0 mm 45.0 in Less


Ideal for digging, dozing, clamping, back dragging, grading and leveling in construction, landscaping, industrial and demolition applications.

Bucket Design

Excellent clamping force lets you grasp large, irregularly shaped objects such as trees, loose stumps, brush, recycling debris and pipe, increasing the versatility of the machine.

Serrated Clam Sidewall

Aids in grasping material and ensuring it stays within the bucket.

Ground Engaging Tools

Base bucket also available with bolt-on cutting edge and bolt-on teeth.
